VIZIO VM60P HDTV User Manual
Version 3/26/2007 25
www.VIZIO.com
2.4.3 Using S-Video (AV)
Connecting your DVD Player (Good):
1. Turn off the power to the Plasma HDTV and DVD player.

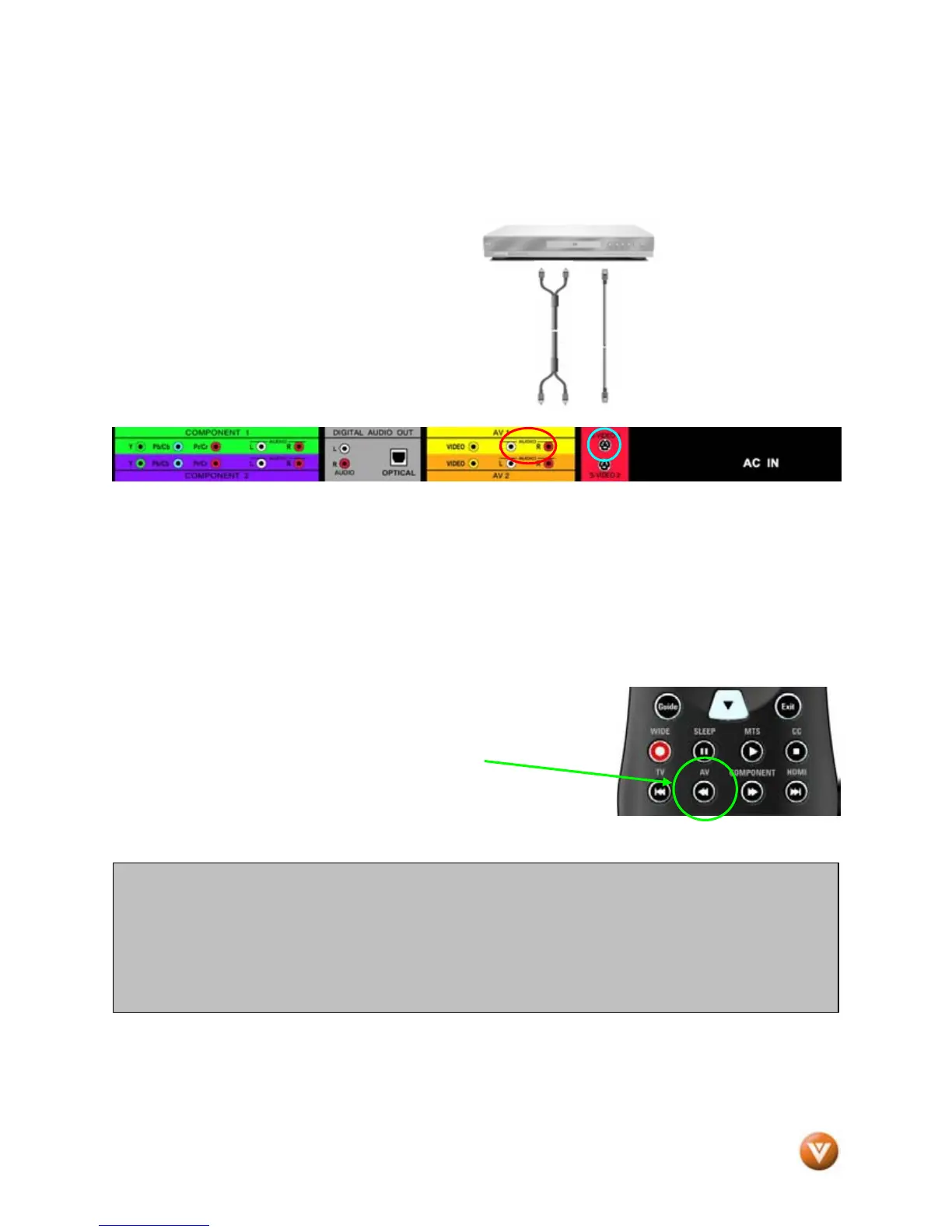

2. Connect the S-Video jack on the rear of your DVD player to the S-Video jack associated (red
area) with the AV1 group (yellow area) at the rear of the Plasma HDTV.
3. Using an audio cable (white and red connectors), connect the cable to the audio output
connectors associated with the S-Video output on your DVD player and connect the other
end to the audio connectors associated with the AV1 input (yellow area) at the rear of the
Plasma HDTV.
4. Turn on the power to the Plasma HDTV and DVD
player.
5. Select AV1 using the INPUT button on the remote or
side of the Plasma HDTV, or directly by pressing the
AV button on the Remote Control.
Note:
a) If you are already using the AV1 input for another component, or you do not want to use
the AV1 input for the DVD player, you can connect the DVD player to the AV2
connections coded by the red area and orange areas.
b) Refer to your DVD player user manual for more information about the video output
requirements of the product.
