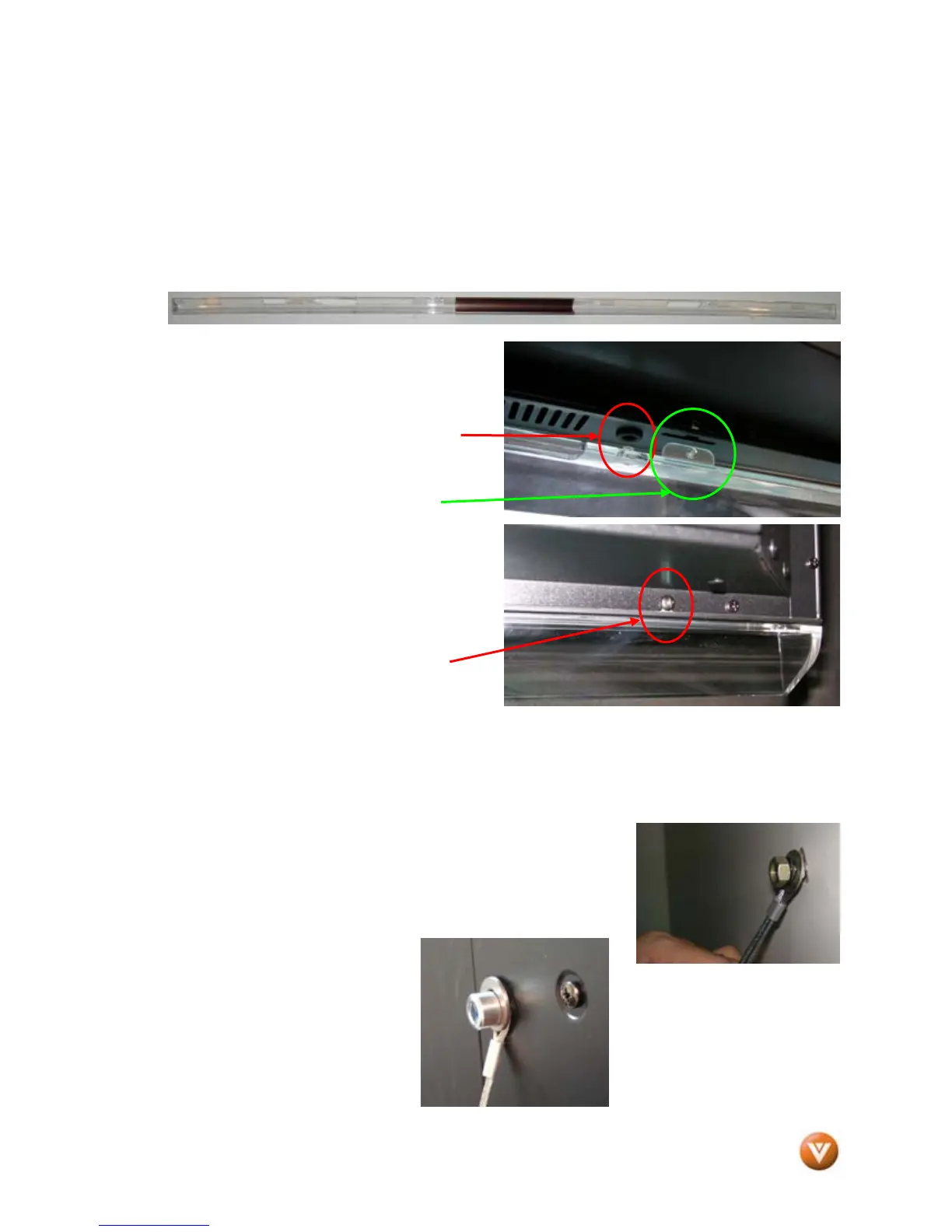

Attaching the Audio Deflector
The VM60P HDTV uniquely uses a downward facing speaker configuration has a Audio Deflector in the
carton for you to attach to the bottom of the HDTV to deflect the downward traveling sound waves to
come forward from the HDTV. Carefully remove the Audio Deflector from its individual carton and follow
the instructions below for mounting it to the HDTV.
1. Place the Audio Deflector below the HDTV and center it using the VIZIO on the front of the
HDTV as a guide.
2. Starting from the left side or right
side of the HDTV, lift the Deflector
and push the locating posts of the
Deflector into the post holes.
Make sure the Retaining Tabs enter
into the retaining slots.
3. Fasten the Audio Deflector
permanently in place by using a
Philips Head Screwdriver to fix the
Retaining Tabs in place using the
screws provided.
Attaching the Safety Strap
For when the VM60P HDTV is not mounted on the wall with a Wall Mount, a Safety Strap has been
included to attach the HDTV to the wall to reduce the chance of the HDTV being pulled over. The Safety
Strap should be used with common sense practice such as ensuring that children (or adults) do not climb
up, grabbing the top of the HDTV and pulling it onto themselves.
1. Fix one end of the strap to the wall. If you have a drywell
finish it is preferable to fix it to a stud if it is a drywall finish,
using a washer underneath the screw head. If you have a
solid wall you should use a lag bolt, again using a washer
under the nut.
2. Fix the other end of the Safety
Strap to one of the upper wall
mounting holes on the back of
the HDTV, using a washer
under the screw head.
