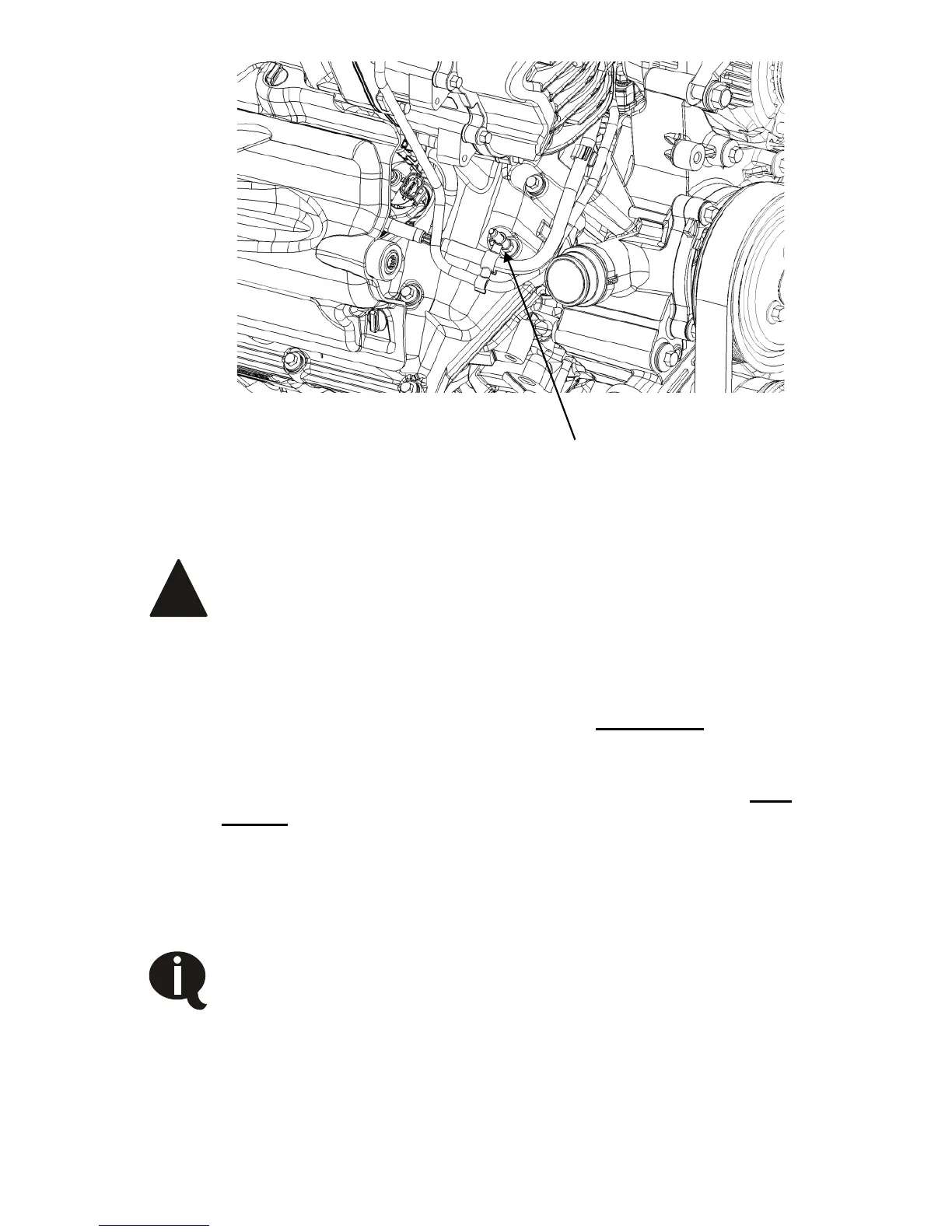

Figure 3.8
Installation of the front and lower side mounting bolts must
follow the order below.
□ Use long (130mm) M8 bolts and washers provided for front two
mounts. If installing on a single alternator truck use supplied
spacers behind bracket for 130mm bolts. Use Loctite and hand
tighten only. (Figure 3.9).
□ Use shorter (40mm) M8 bolts for lower side engine mounts. Use
Loctite and hand tighten only.
□ Torque front bolts to specification first.
□ Next, torque lower side bolts to specification.
It is possible to get extension with flex head through from
inside wheel well for lower side bolts.
