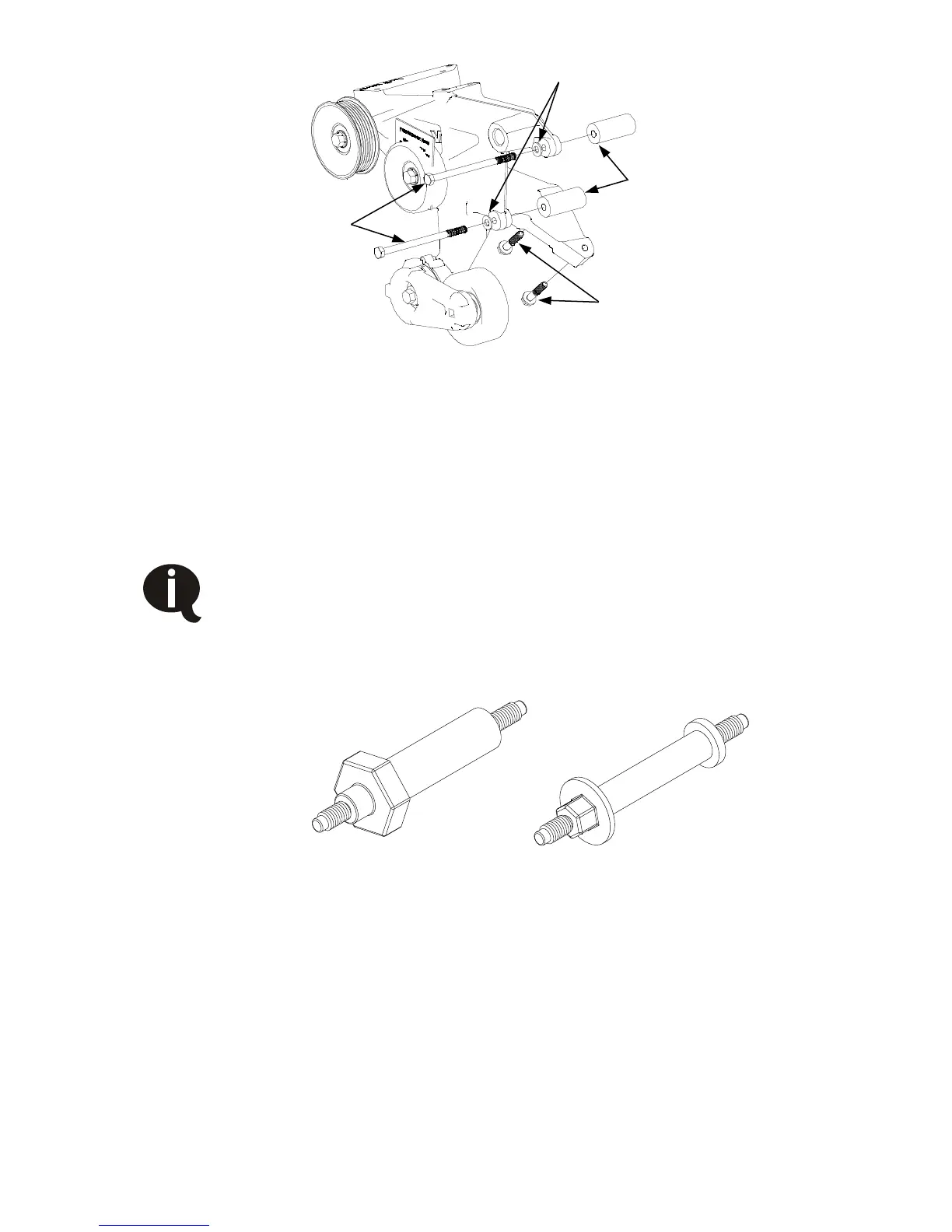

Single Alternator
Spacers
Side Mounts
M8 x 40 Flange
Head Bolts
Front Mounts
M8 x 130 Bolts
Figure 3.9
□ Reconnect A/C sensor.
□ Reinstall passenger side upper fan stator mount through main
bracket into the original threaded hole.
A running change has resulted in changes to the OEM stator
mounting studs on Ford F250-F550 Superduty trucks
equipped with 6.7L Powerstroke diesel engines as of 29-
Sep-11 (Figure 3.10). Trucks built after this date may
experience clearance issues between the VMAC main
bracket and OEM stator mounting stud during installation.
Original Stator Mount Stud
New Stator Mount Stud
Figure 3.10
□ For V900120/V90G120/V910010 systems shipped prior to 9-
Dec-11 being installed on trucks built after 29-Sep-11 the OEM
stator mounting stud can be modified for proper fitment. Grind
down the washer outside diameter as shown until proper fitment
is achieved, (Figure 3.11).
