DO NOT remove the entire washer. If the washer is removed
this bolt could damage the VR bracket when tightened down
resulting in VR bracket and/or water pump failure.

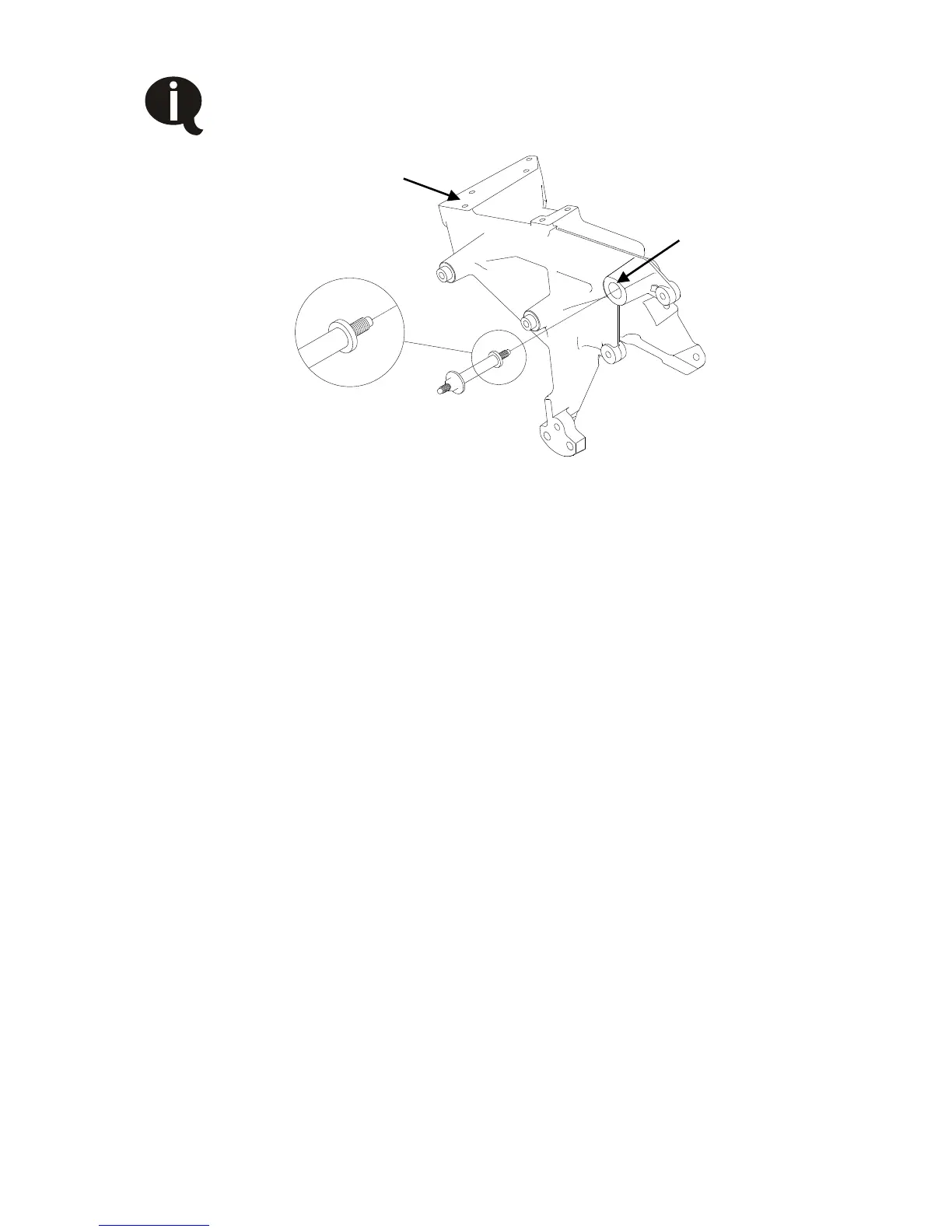

Figure 3.11
□ Install idlers and tensioner using Loctite and torque to
specifications.
□ Flex the air condition line that goes over the main bracket in
towards the engine to ensure clearance to the main bracket and
compressor. Check to ensure the added hose protection is in
the correct location.
□ Modify fan stator as shown (Figure 3.12).
