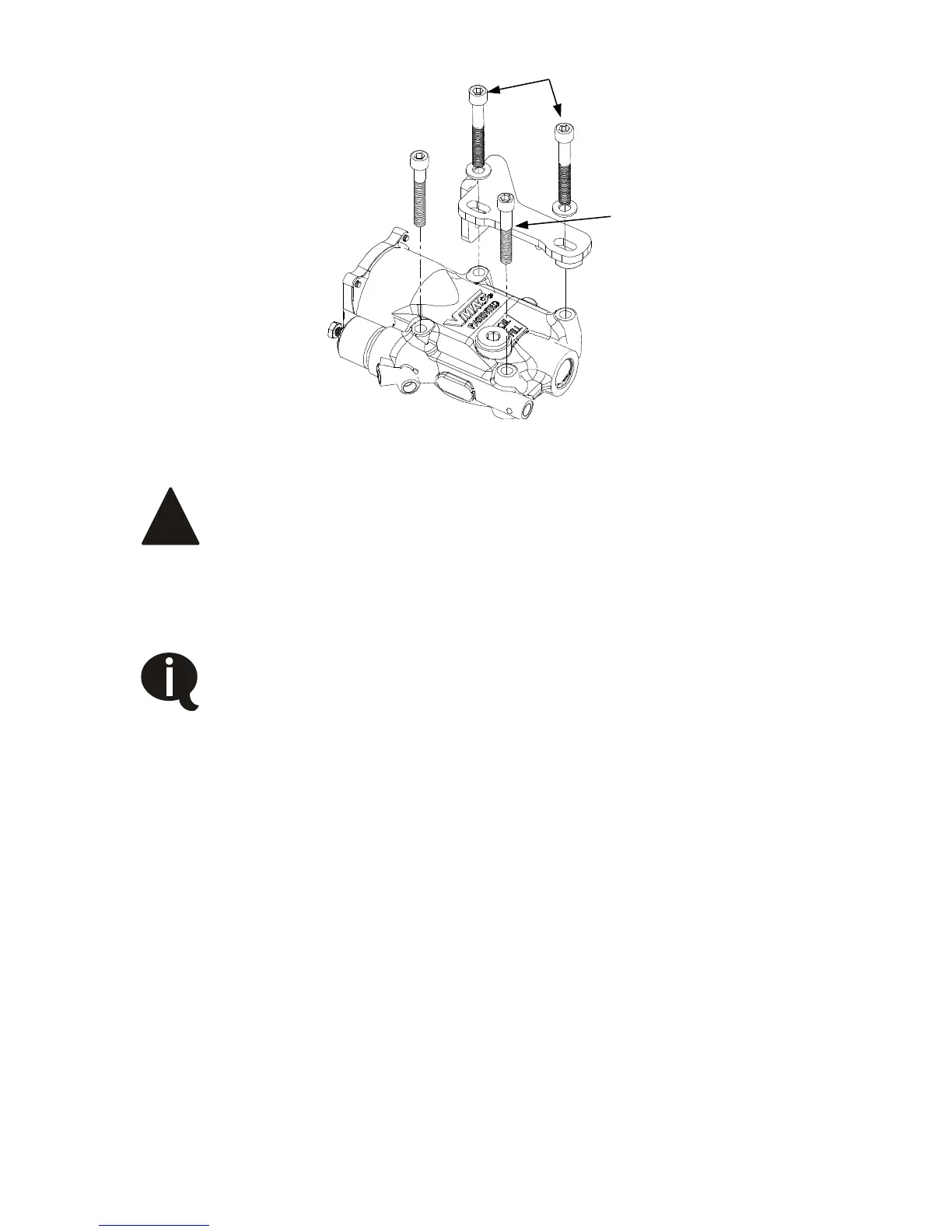

Figure 3.15
Never use an impact wrench to install inlet bolts.
The torque spec for inlet bolts is 19 ft. lbs.
□ Join the brace on the EGR to the one on the inlet valve using the
supplied M8 bolts, washers and nylock nuts. Finger tight only.
Ensure the brace bracket bolts are not preloaded before
tightening the inlet valve bolts.
□ Tighten all four (4) inlet valve bolts and torque to specification.
□ Tighten the two fasteners joining the brace together and torque
to specification.
□ Connect the 45 degree end of the 3/4” discharge hose to the
fitting on the rear of the compressor and route down towards the
outside of the frame rail under the passenger side of the truck.
Ensure hose does not contact any hot, moving or sharp
components. Do not tighten fitting until connected to separator
tank.
