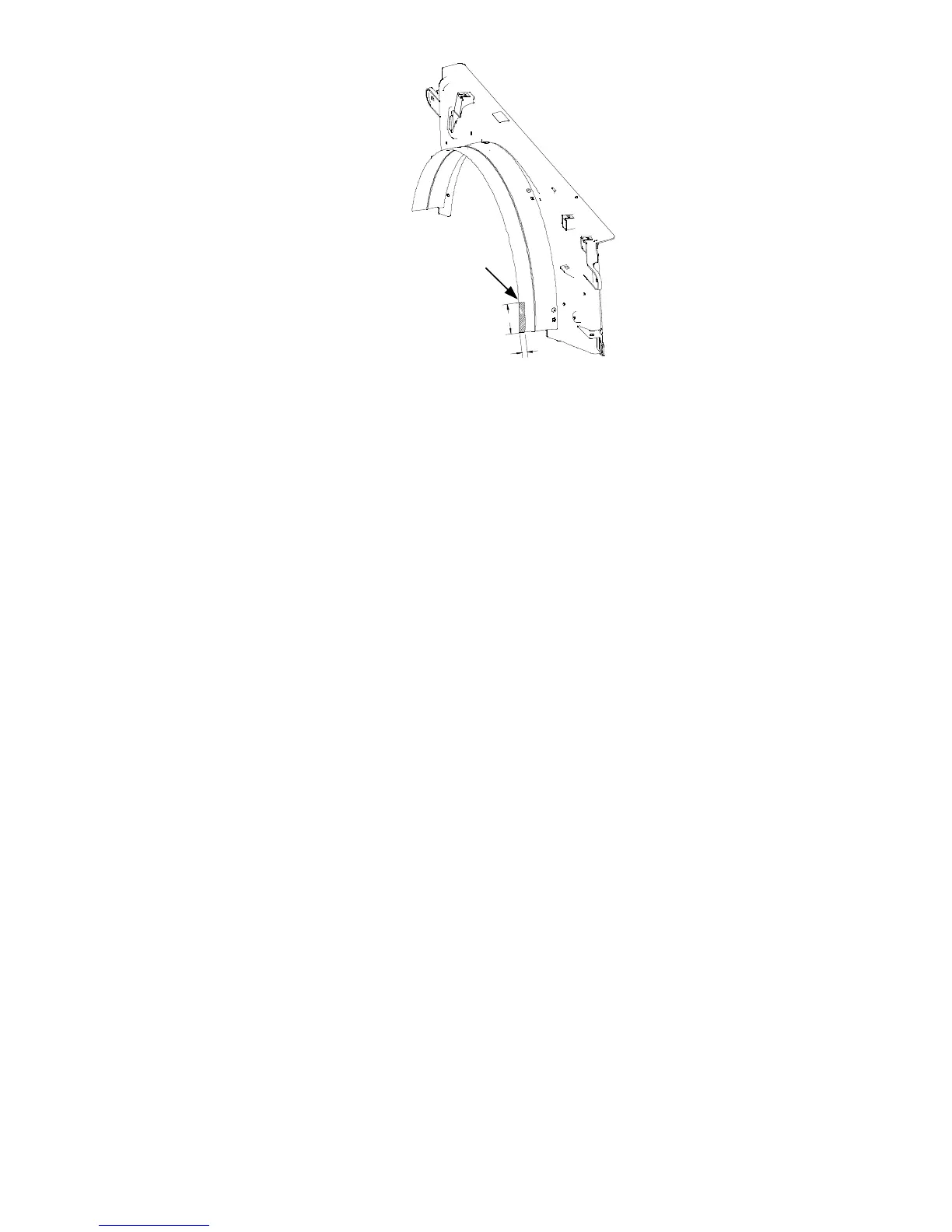

Figure 3.17
□ Install upper fan shroud. Secure power steering reservoir and
secondary coolant reservoir.
□ Connect hoses to secondary coolant reservoir. Route flexible
upper coolant hose under main compressor bracket across in
front to the reservoir. Secure hose to A/C line to ensure hose will
not contact clutch or any other moving components.
□ Fill the primary and secondary radiators with saved coolant.
□ Apply loom and route the 1/4” and 3/16” Teflon hoses from the
compressor down the back of the passenger side inner fender,
along the outside of the frame rail under the passenger side of
the truck. Ensure hose does not contact any hot, moving or
sharp components.
□ Install solenoid assembly on passenger side engine cover using
supplied fasteners (Figure 3.18 )
