□ Insert modified foam filter section into rear of modified filter box.
Foam goes in original location of plastic section (groove fits in
plastic lip).
□ Reinstall OEM air duct.
Cut Off Vertical
Plastic Tab
Forward threaded
OEM hole
Second threaded
OEM hole
OEM Air Duct to be modified
Second threaded
OEM hole

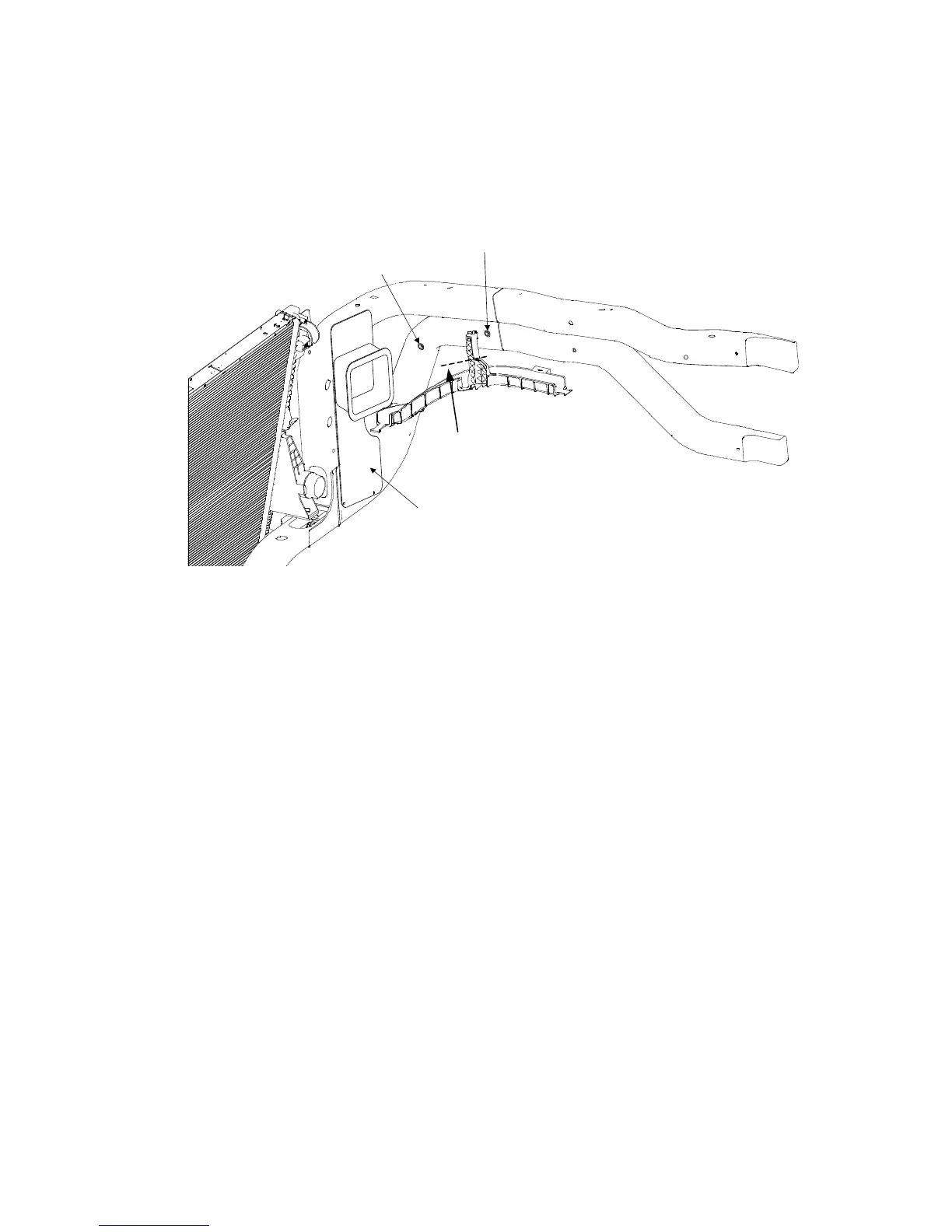

Figure 3.32
□ Using a hammer, flatten the sheet metal, raised edge all around
the lower hood strut area. (Figure 3.33).
