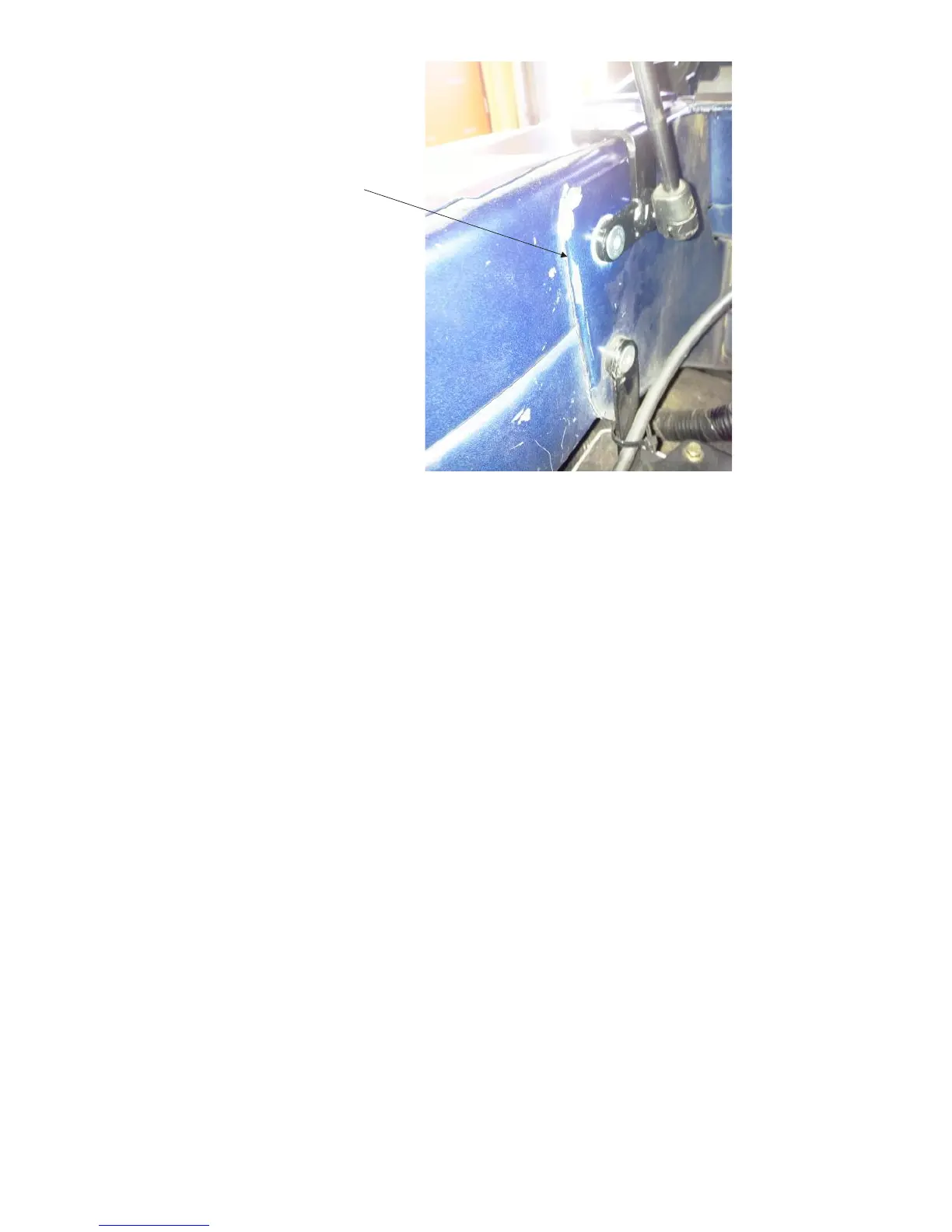

Figure 3.33
□ Ensure there are no sharp edges remaining.
□ Remove countersunk fastener holding long leg of the glow plug
bracket to inner fender.
□ Align UHMW pad, supplied, with these two holes in inner fender
and the large portion of pad forward of holes. Reinstall glow plug
module fastener, (Figure 3.34).
□ Install lower hood strut bracket with supplied fasteners, (Figure
3.34).
