46
□ Install lower air filter box assembly.
□ Install front spacer and supplied bolt (Figure 3.37) through 3/8”
hole in metal lower air filter box and into forward OEM threaded
hole in inner fender, (Figure 3.32).
□ Install rear spacer clamp and supplied bolt and washer, (Figure
3.37), into second OEM threaded hole in inner fender, (Figure
3.32), towards rear of air filter box and clamp vertical plastic wall
just above air filter box lid slots.

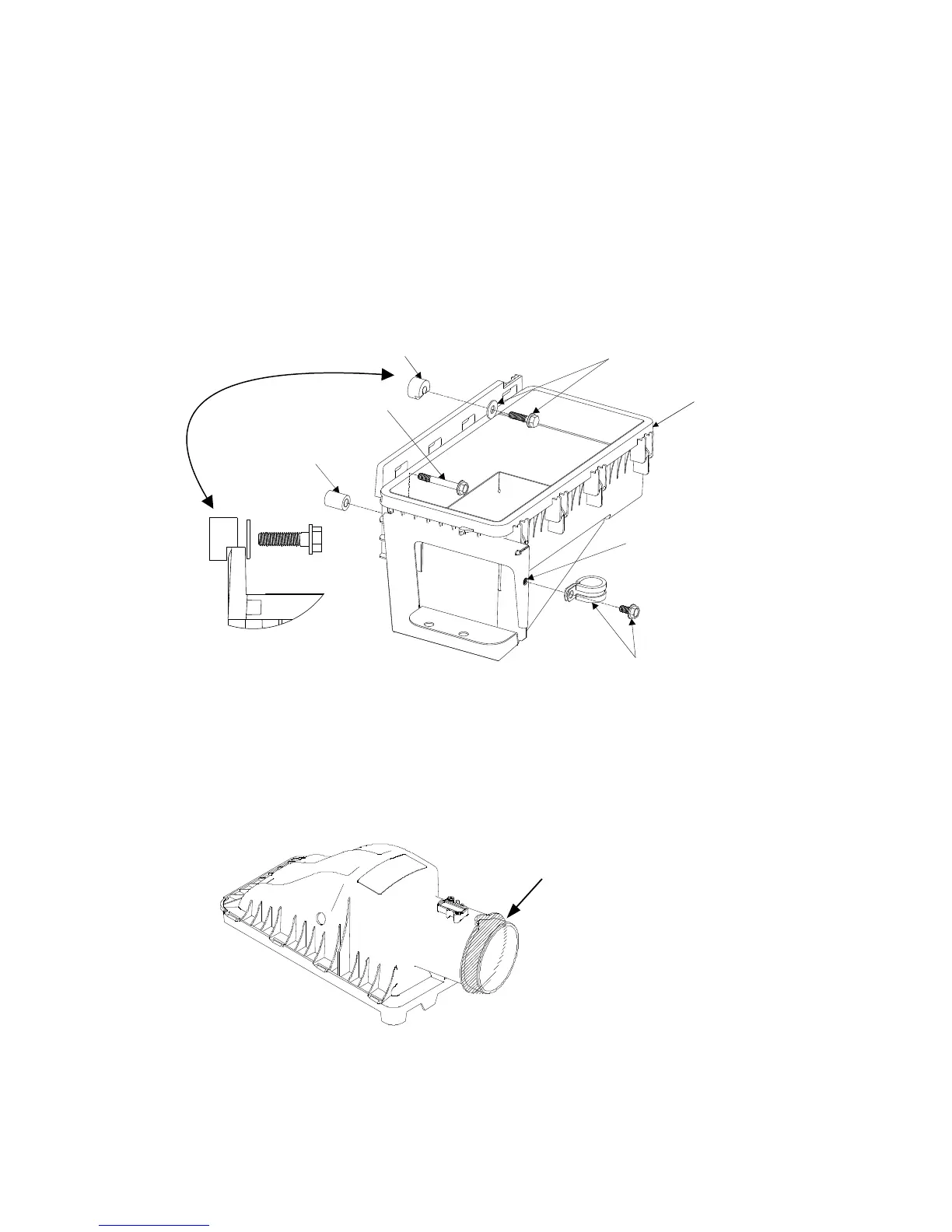

Front Spacer
Supplied Bolt
Rear Spacer Clamp
Supplied Bolt and Flatwasher .
Modified Air
Filter Box
M8 Nut for
P-Clip mounting
Supplied Bolt & P-Clip
Rear Spacer Clamp
Cross-Section Detail
Figure 3.37
□ Cut end and lip off of air filter box lid, (Figure 3.38).
Remove Shaded Area. Grind Off
Lip So Hose Can Slide Over.
Clean And Ensure All Debris Is
Out Of Inside
Figure 3.38
