58

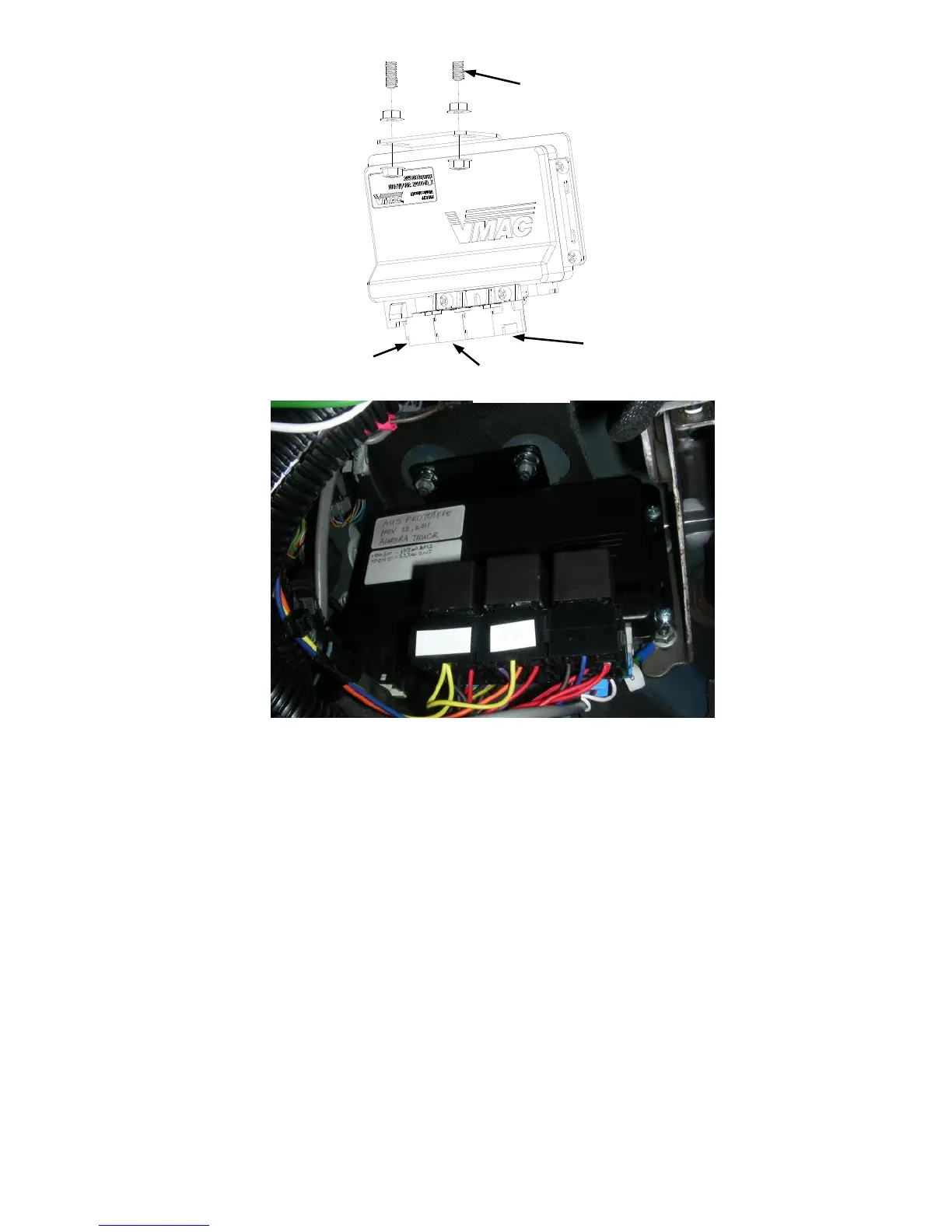

Figure 5.2
5.2.2 VR Throttle Controller
□ Install the Throttle Controller underneath the dash with nylon-
ties.
□ Route both of its two 6-pin connectors to the foot pedal.
□ Connect the 4-pin connector with the mating connector on the
wiring harness coming from the Control Box.
HOT 12V
RELAY
EXISTING FORD
STUDS ABOVE
KICKER PANEL
STOP
RELAY
START
RELAY
