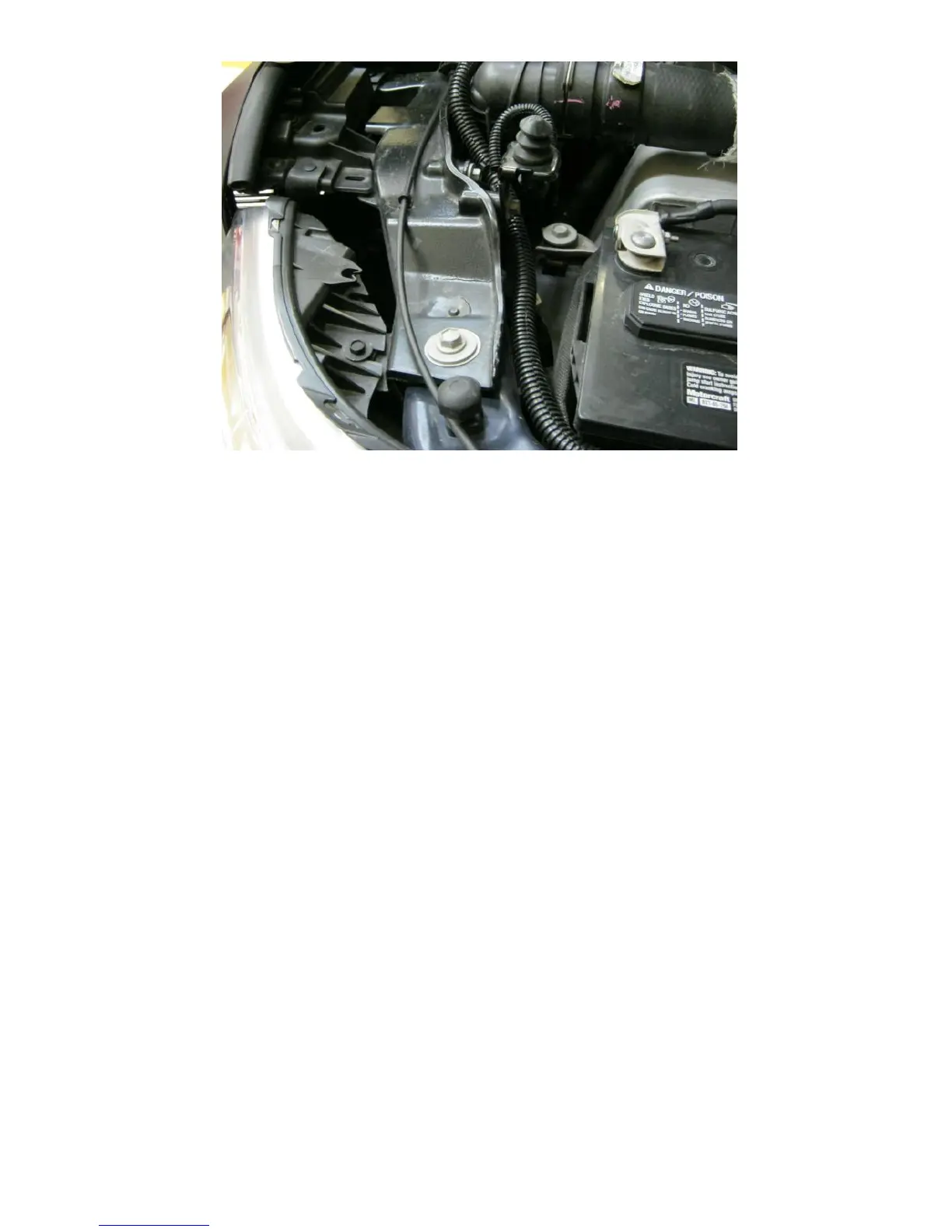

Figure 5.4
□ Visually verify the switch is suitably installed such that it’s
actuated when the hood is closed.
□ Connect the hood switch’s connector to its mating connector on
the main wiring harness in the engine bay.
5.2.4 Compressor Connections
□ Connect the Inlet Valve Solenoid on the VR70 Compressor
Assembly to its mating connector with red and brown wires on
the wiring harness.
□ Connect the Clutch on the VR70 Compressor Assembly to the
mating bullet connector with white wire on the wiring harness.
□ Connect the Compressor Temperature Sensor on the VR70
Compressor Assembly to its mating 7 pin (4 wires) connector on
the wiring harness.
5.2.5 Pressure Sensor
□ Connect the Pressure Sensor on the Discharge Check Valve to
the mating connector on the wiring harness.
