6.3 Direction of flow
The pump is suited for both flow directions.
Please observe the following machine and safety exceptions in which the flow direction is predefined:
• Installation in pipes with automatic check valves  Chapter "Pump units"
• Injection A  Chapter "InjectionSystem"
6.3.1 Pump with motor drive
If you are using motor-driven pumps with one drive shaft, the flow direction is selected by determining the
direction of rotation of the drive motor, such as an electric motor or hydraulic motor.

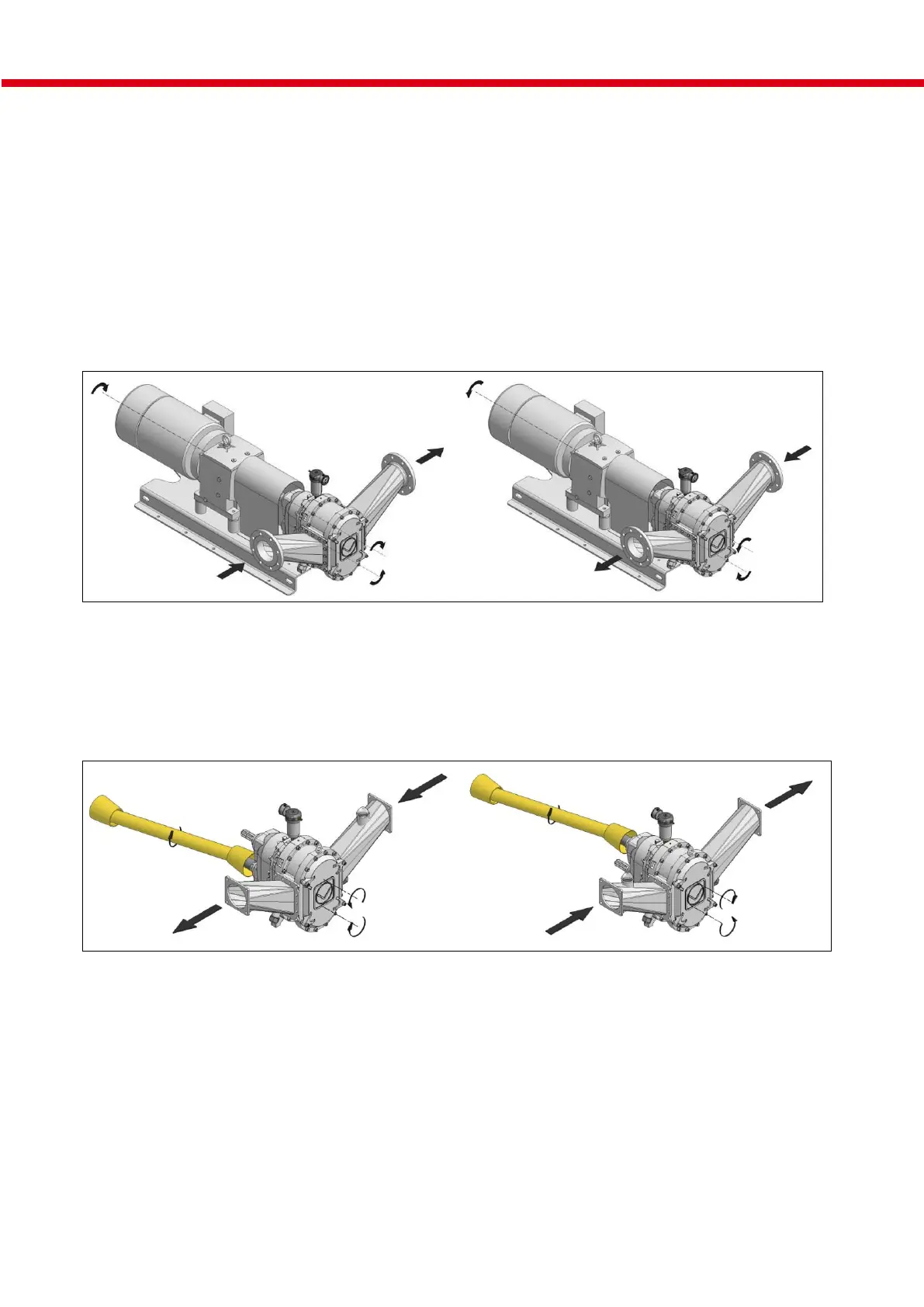

Fig. 7: Flow direction with motor drive
6.3.2 Pump with PTO drive
If you are using tractor driven pumps with two drive shafts, connect either the upper or lower cardan shafts
thus determining the flow direction.
Fig. 8: Flow direction with PTO drive
