Vogelsang VX136Q - Fig. 26: Hooking Puller Arm into Lobe; Fig. 27: Pulling out the Lobes with Lobe Puller

Repair
WBV.PU.002.EN VX136Q V2.0
61
4. Tighten the pressure rod (3) to dismount the lobe  Fig. "Pulling out the lobes with lobe puller".

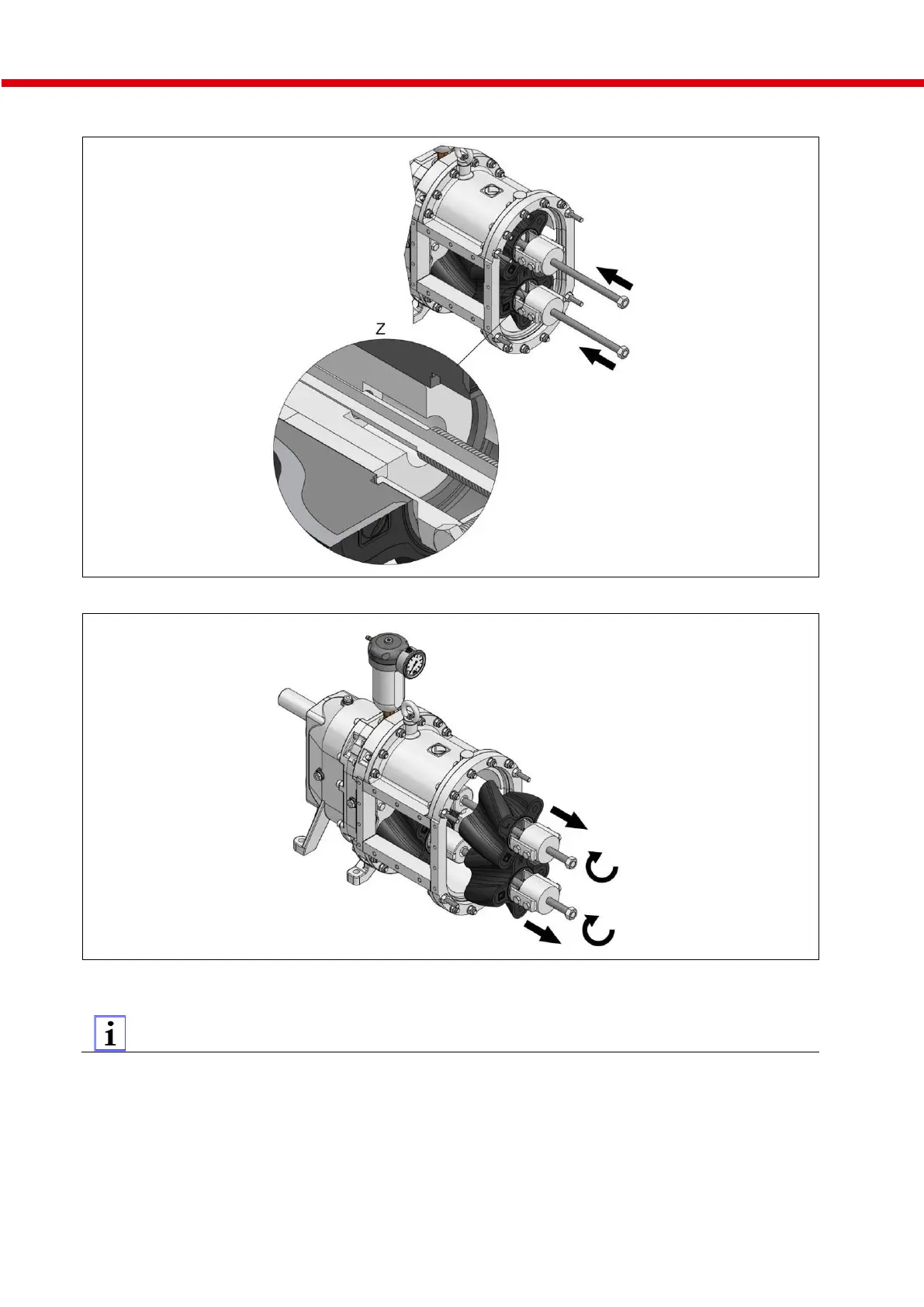

Fig. 26: Hooking puller arm into lobe
Fig. 27: Pulling out the lobes with lobe puller
Maintenance instructions for lobe puller
• Regularly check the puller arms for wear and breakage.
• Keep the threaded bolt in the pressure rod clean at all times and lubricate it regularly.
