Maintenance
WBV.PU.002.EN VX136Q V2.0
Upright installation
Horizontal installation
Vertical installation
Suspended installation

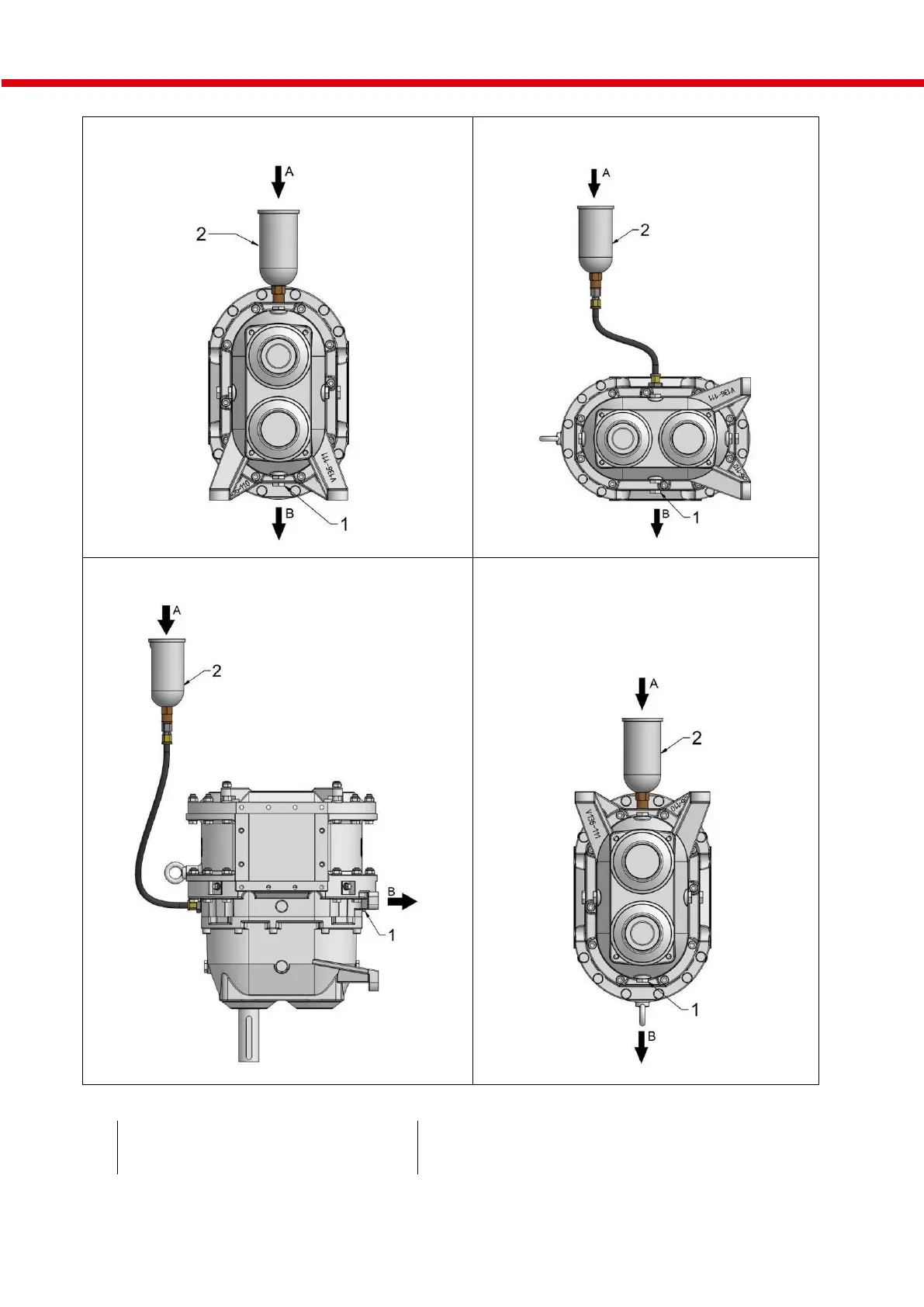

Fig. 15: Draining/filling the buffer chamber
1
Screw plug
A
Filling
2
Buffer fluid tank
B
Draining
