Void Cyclone Series User Manual

Cyclone Series User Guide V1.0
Page 16

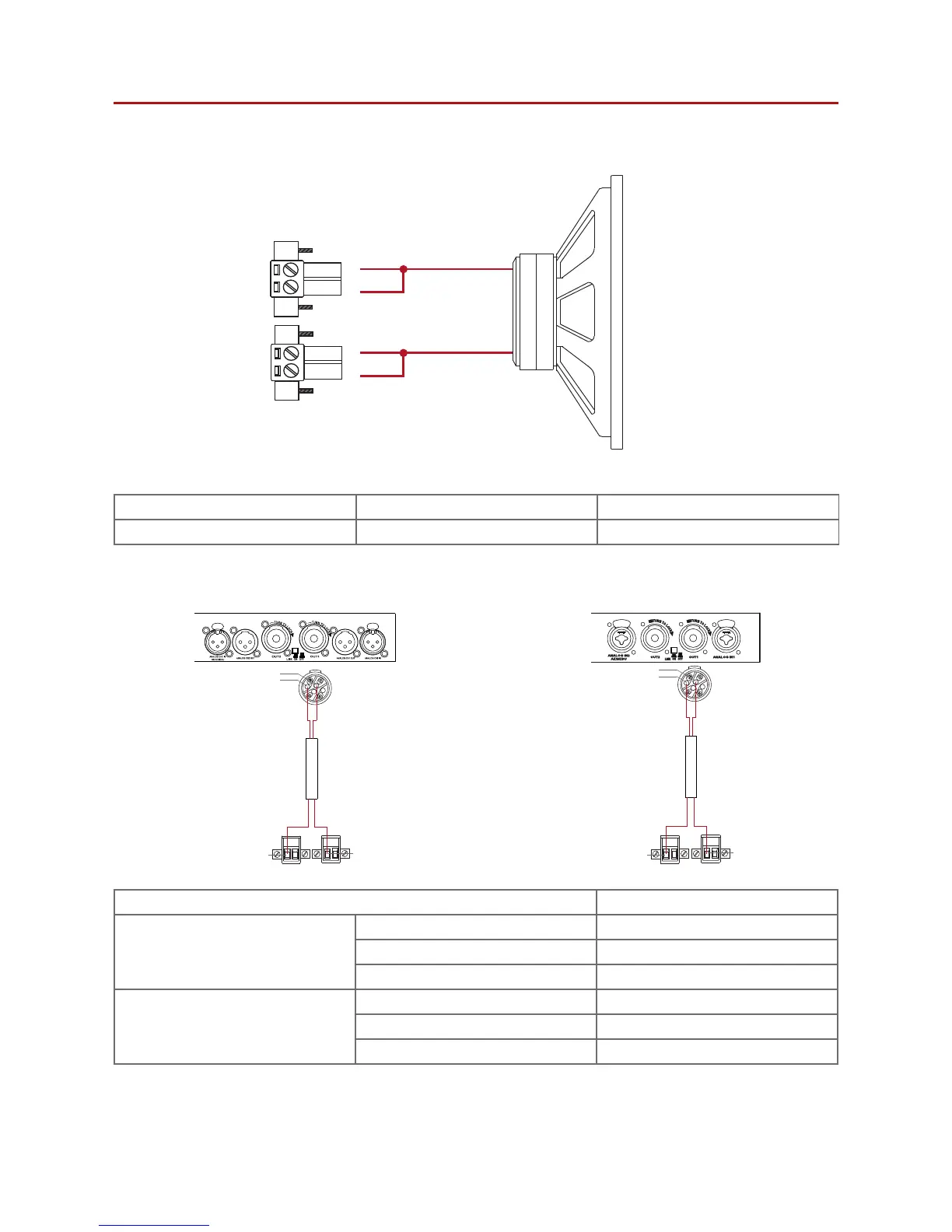

6 Cabling and wiring
6.7 Bias V3/V9 speakON
TM
wiring
1+
1-
-
+
Figure 6.5: Bias V3
1+
1-
-
+
Figure 6.6: Bias V9
Bias V3/V9 Out 1
Output Cyclone 10 LF (10”) and HF (1”)
Cyclone 55 LF (2 x 5”) and HF (2 x 1”)
Cyclone Bass LF (12”)
Max quantity per channel Cyclone 10 4 (2 Ω load to amplifier)
Cyclone 55 8 (2 Ω load to amplifier)
Cyclone Bass 4 (2 Ω load to amplifier)
+
-
12” LF
-
-
+
+
6.6 Cyclone Bass wiring diagram
Phoenix pins 1-/1+ Phoenix pins 2-/2+
In HF (1”) and LF (10”) Link/out
Figure 6.4: Wiring diagram
