7.1 System design principles
Cyclone Series loudspeakers can be arrayed as a single pair facing forward to provide a wide
stereo image.

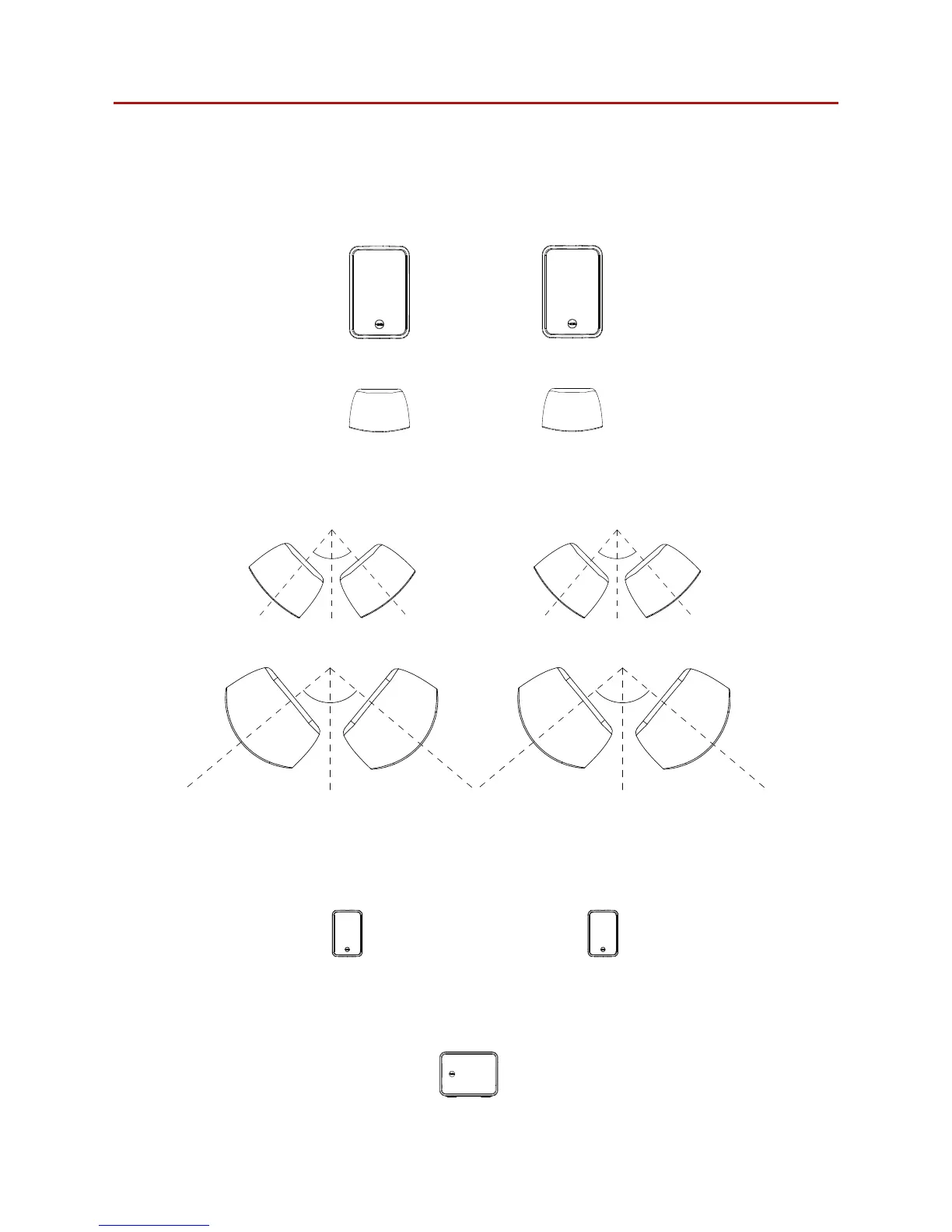

Figure 7.1: Cyclone 10 single pair arrangement
40° 40°
Figure 7.2: Cyclone 10 dual pair arrangement
7 System design
For applications requiring wide horizontal coverage, use two Cyclone 10 in pairs, angled at
about 40° for Cyclone 10 and 50° for Cyclone 55.
40° 40°
50°
50°
Figure 7.3: Cyclone 55 dual pair arrangement
50°
50°
For permanent installation, it is recommended to fly Cyclone 10/55 loudspeakers for more
even coverage. This also allows co-located low frequency enclosures in a single block,
increasing sensitivity and providing more consistent bass coverage.
Figure 7.4: Cyclone permanent installation
