Void Cyclone Series User Manual

Cyclone Series User Guide V1.0
Page 17
1+
1-
-
+
1+
1-
-
+

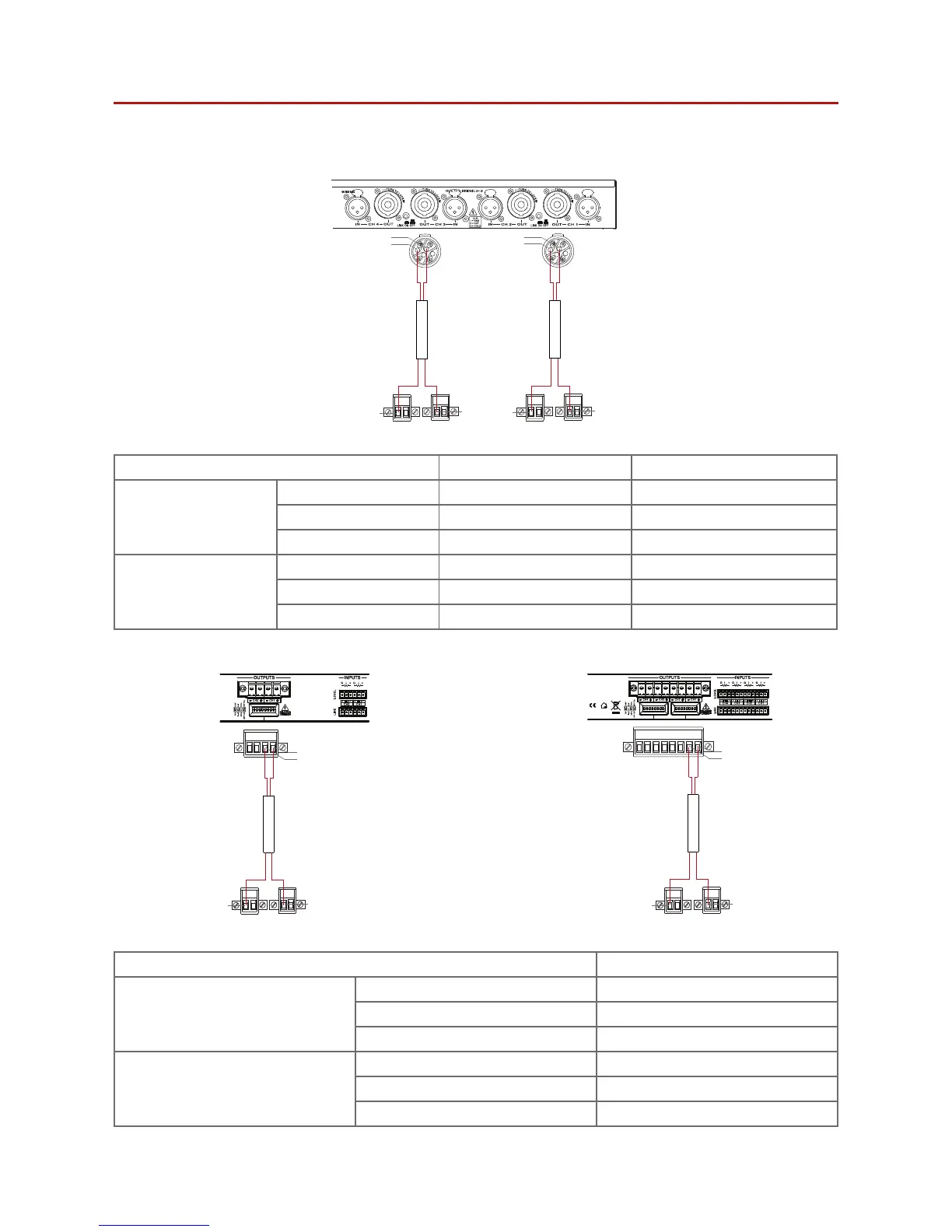

Figure 6.7: Bias VQ
Bias VQ Out 1 (Left) Out 3 (Right)
Output Cyclone 10 LF (10”) and HF (1”) LF (10”) and HF (1”)
Cyclone 55 LF (2 x 5”) and HF (2 x 1”) LF (2 x 5”) and HF (2 x 1”)
Cyclone Bass LF (12”) LF (12”)
Max quantity per
channel
Cyclone 10 2 (4 Ω) 2 (4 Ω load to amplifier)
Cyclone 55 4 (4 Ω) 4 (4 Ω load to amplifier)
Cyclone Bass 2 (4 Ω) 2 (4 Ω load to amplifier)
6.8 Bias VQ speakON
TM
wiring
6 Cabling and wiring
6.9 Bias D1/Q2 Phoenix wiring
1+
1-
-
+
Figure 6.8: Bias D1
1+
1-
-
+
Figure 6.9: Bias Q2
Bias D1/Q2 Out 1
Output Cyclone 10 LF (10”) and HF (1”)
Cyclone 55 LF (2 x 5”) and HF (2 x 1”)
Cyclone Bass LF (12”)
Max quantity per channel Cyclone 10 4 (2 Ω load to amplifier)
Cyclone 55 8 (2 Ω load to amplifier)
Cyclone Bass 4 (2 Ω load to amplifier)
