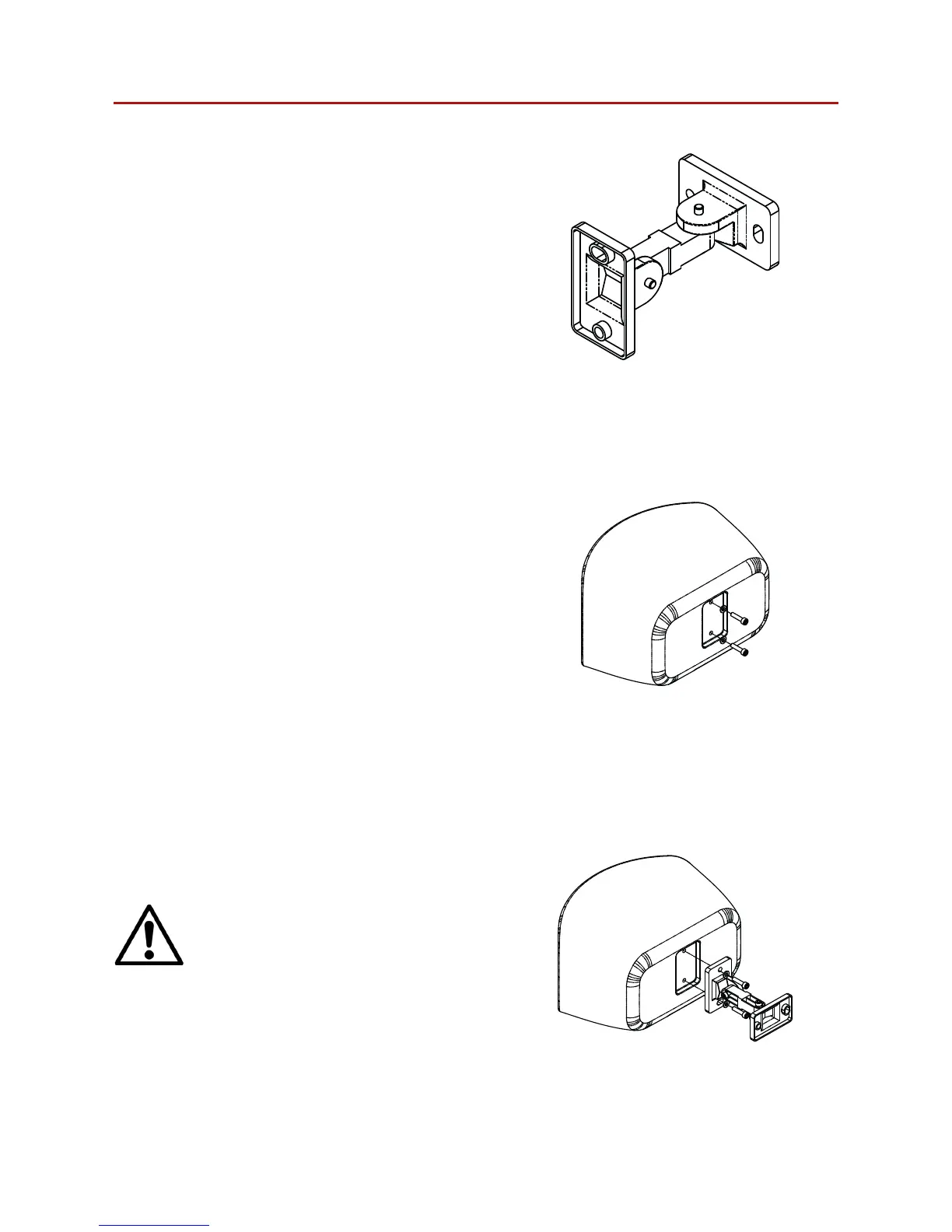

Figure 8.12: Cyclone 55/Indigo 6s bracket
Parts required:
• Cyclone 55/Indigo 6s bracket
Note: The same bracket is used for mounting the
Cyclone 55. Although the method shown here is
for wall mounting the same method is used for
ceiling mounting by adjusting the bracket.
Figure 8.13: Cyclone bolt removal
Step 1:
Remove both M6 bolts from the rear of the
loudspeaker.
Step 2:
Lift the loudspeaker into position and attach both
M6 bolts.
Take care when mounting the
bracket to the wall, making sure to
use the correct fixing and that the
ceiling can take the load, for example
do not attach the bracket to a stud
wall.
Figure 8.14: Fixing bracket
