Void Cyclone Series User Manual

Cyclone Series User Guide V1.0
Page 30

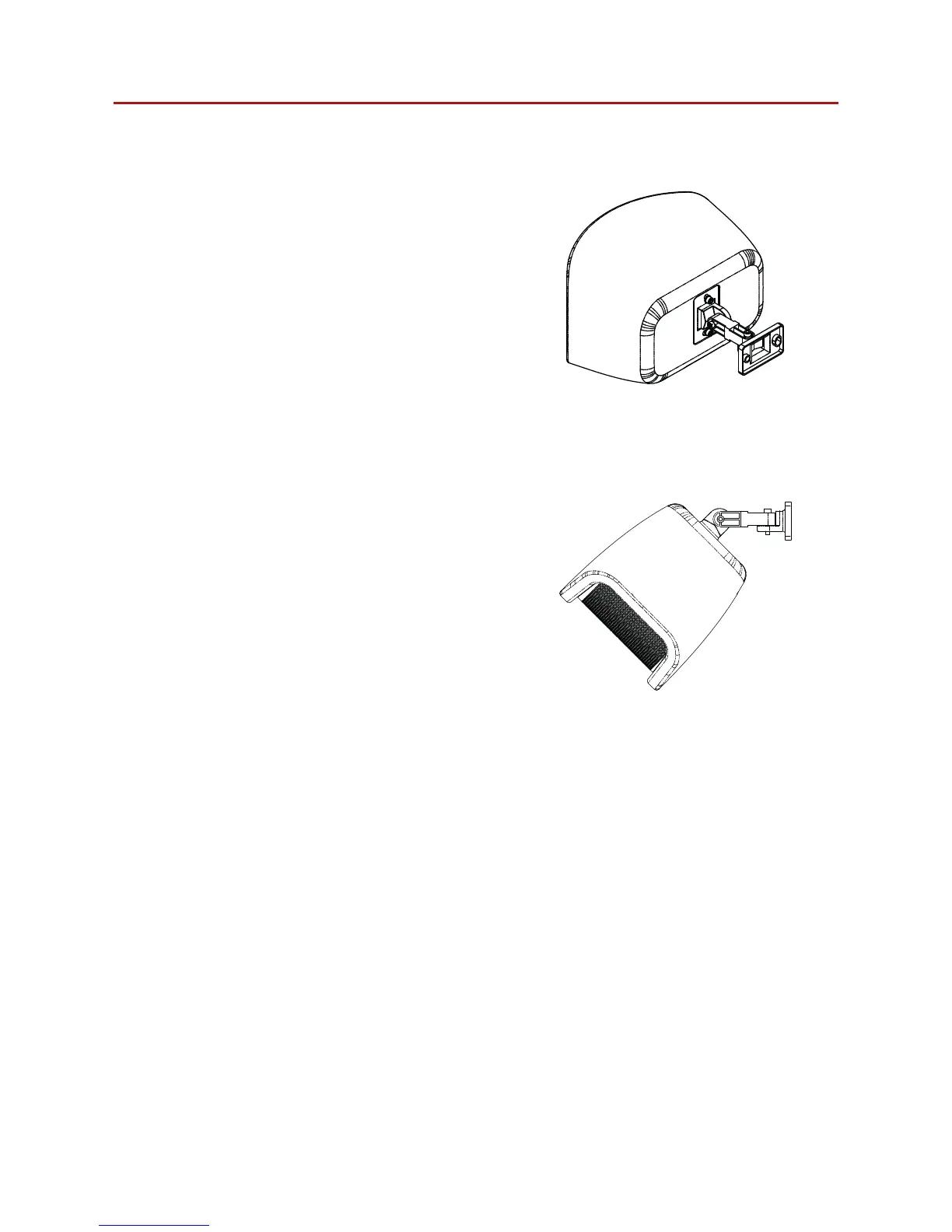

Figure 8.15: Attaching bracket to loudspeaker
Step 3:
With the lifting gear in place adjust the angle
of the bracket using the bolt on the bracket
assembly.
Figure 8.16: Loudspeaker positioning
Step 4:
Tighten the bolt on the bracket to fix the
loudspeaker in position.
8.4 Cyclone 55 wall mounting
