Void Cyclone Series - Bias Q5 speakON Wiring

Cyclone Series User Guide V1.0
Page 18
6 Cabling and wiring
6.10 Bias Q5 speakON™ wiring
1+
1-
-
+

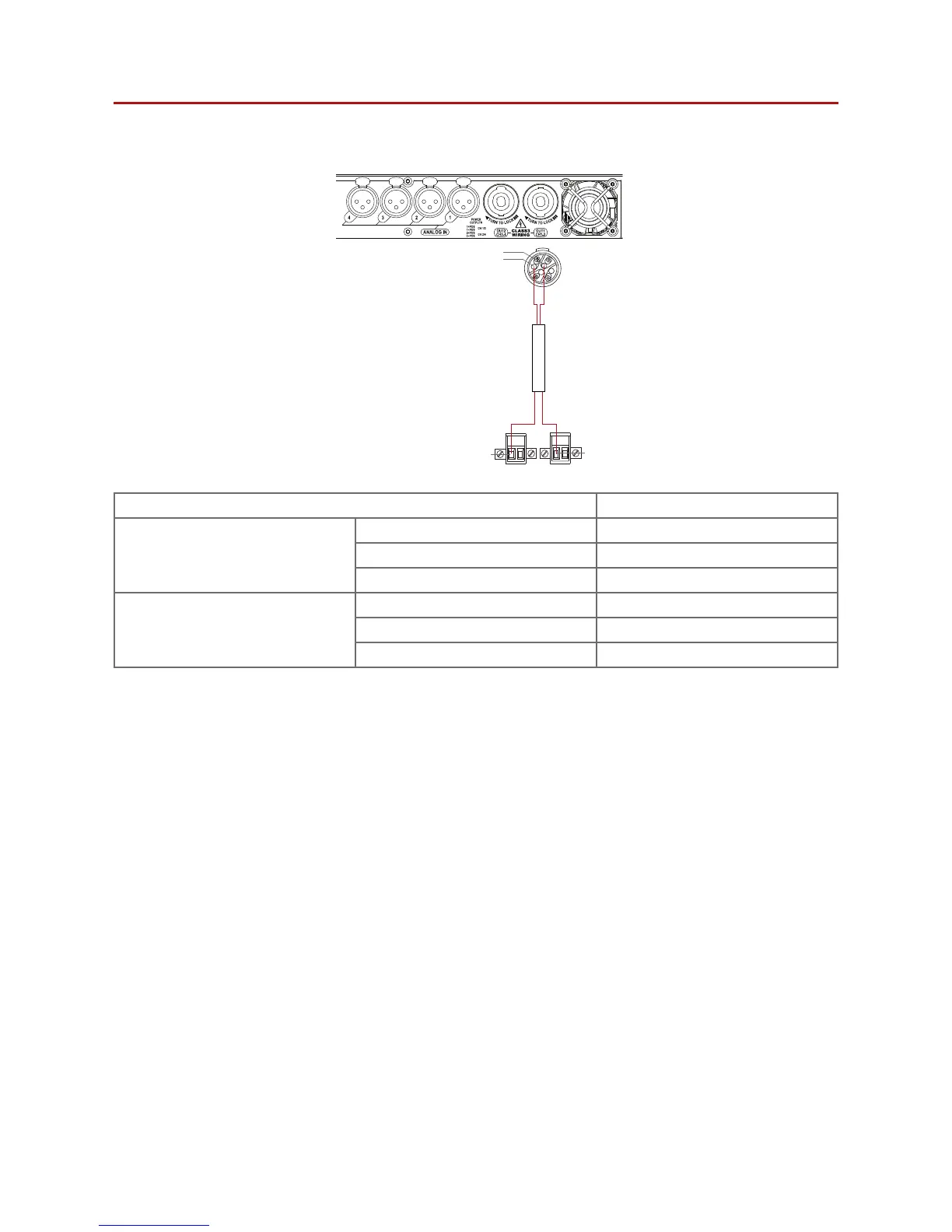

Figure 6.10: Bias Q5
Bias Q5 Out 1
Output Cyclone 10 LF (10”) and HF (1”)
Cyclone 55 LF (2 x 5”) and HF (2 x 1”)
Cyclone Bass LF (12”)
Max quantity per channel Cyclone 10 4 (2 Ω load to amplifier)
Cyclone 55 8 (2 Ω load to amplifier)
Cyclone Bass 4 (2 Ω load to amplifier)
