Voith IPV Series - Mounting Flange Torque Limits

50
Voith Turbo H + L Hydraulic GmbH & Co. KG 25000057510-TED-ENX-04

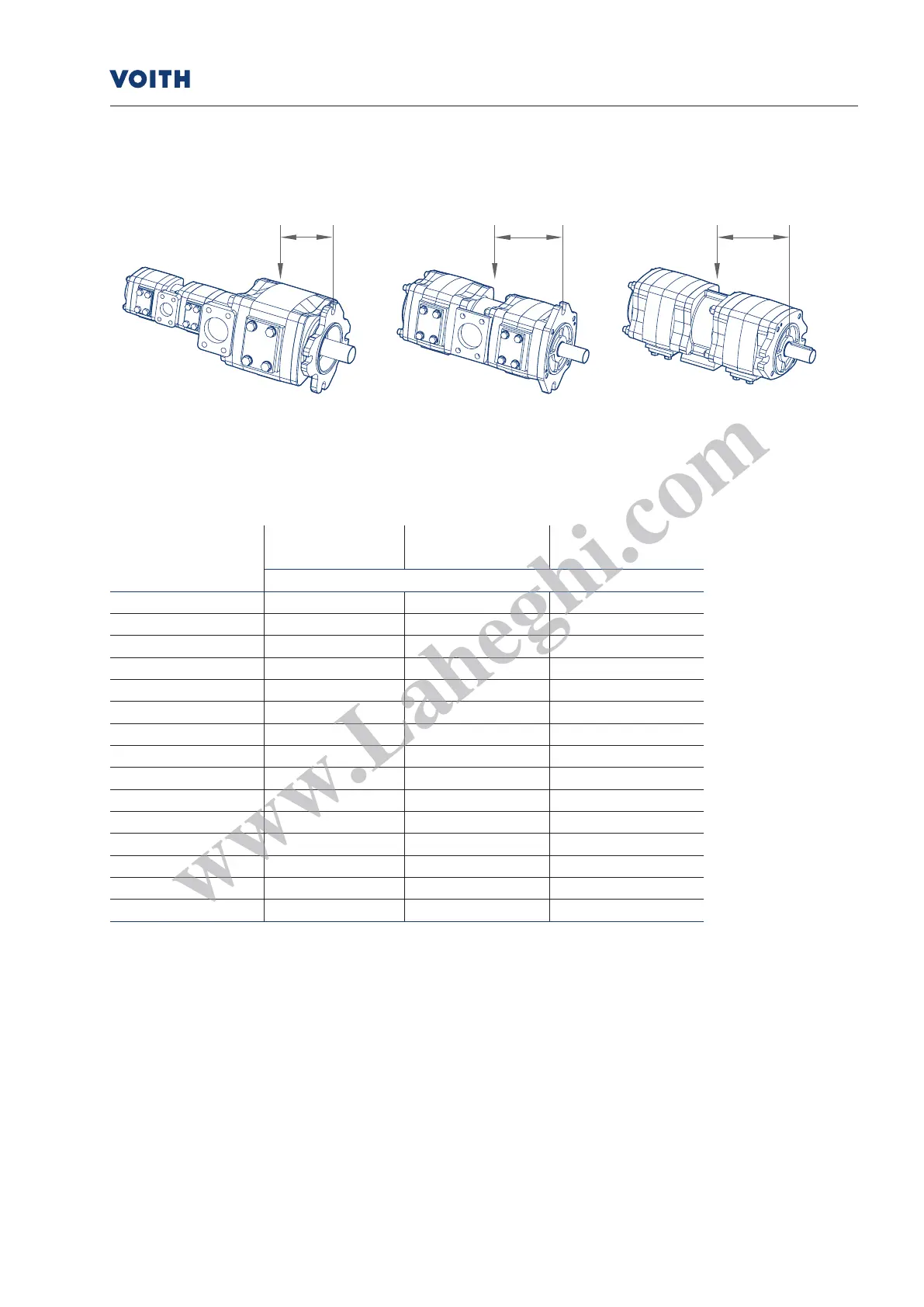

Fig. 17.5 Permitted torque on the mounting ange, horizontal installation position
Primary pump Four-holeange Two-holeange
vertical
Two-hole flange
horizontal
Permitted static torque in Nm
IPC 4 120 100
75
IPC5 240 200
108
IPC 6 420 350
140
IPC 7 900 -
-
IPH 4 120 100
75
IPH5 420 350
140
IPH 6 1080 700
140
IPN 4 - 70
68
IPN5 - 150
86
IPN 6 - 300 108
IPV(S)(P)(A) 3 - 25
20
IPV(S)(P)(A) 4 120 100
75
IPV(S)(P)(A)5 240 200
108
IPV(S)(P)(A) 6 420 350
140
IPV(S)(P)(A) 7 900 - -
Tab. 17.5: Permitted torque on the mounting ange, horizontal installation position
Kraft
Abstand
Kraft
Abstand
Kraft
Abstand
Force
Distance
Force
Distance
Force
Distance
Internal gear pumps
Pump combinations - conguration
