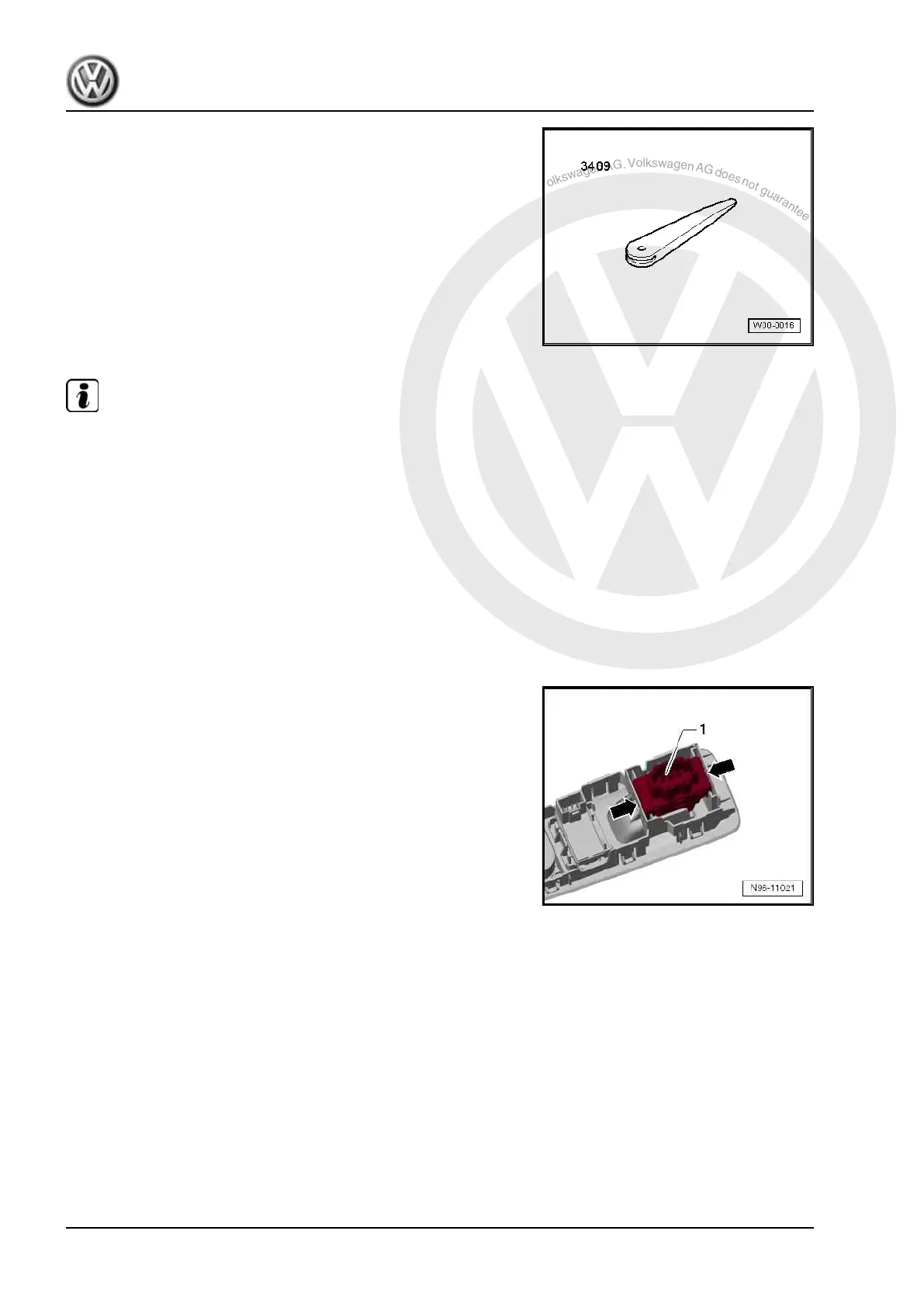

♦ Removal wedge - VAS 3409-
Note
♦
The following illustrations show removal and installation of the
front left window regulator switch - E40- .
♦
Removal and installation of the front right window regulator
switch - E41- are carried out in the same way.
♦
The operating unit for window regulator in driver door - E40-
must not be removed in order to remove the front left window
regulator switch - E512- .
Removing
– Switch off ignition and all electrical consumers, and withdraw
ignition key.
– Remove front door trim ⇒ General body repairs, interior; Rep.
gr. 70 ; Door trims; Assembly overview - front door trim .
– Release the two catches -arrows-, and remove front left win‐
dow regulator switch - E40- -1- from operating unit for window
regulator in driver door - E512- .
Installing
Installation is carried out in the reverse sequence of removal.
2.11 Removing and installing mirror adjust‐
ment switch -E43- / -E168-
Special tools and workshop equipment required
up! 2012 ➤
Electrical system - Edition 03.2017
136 Rep. gr.96 - Lights, bulbs, switches - interior
