– Switch off ignition and all electrical consumers, and withdraw
ignition key.

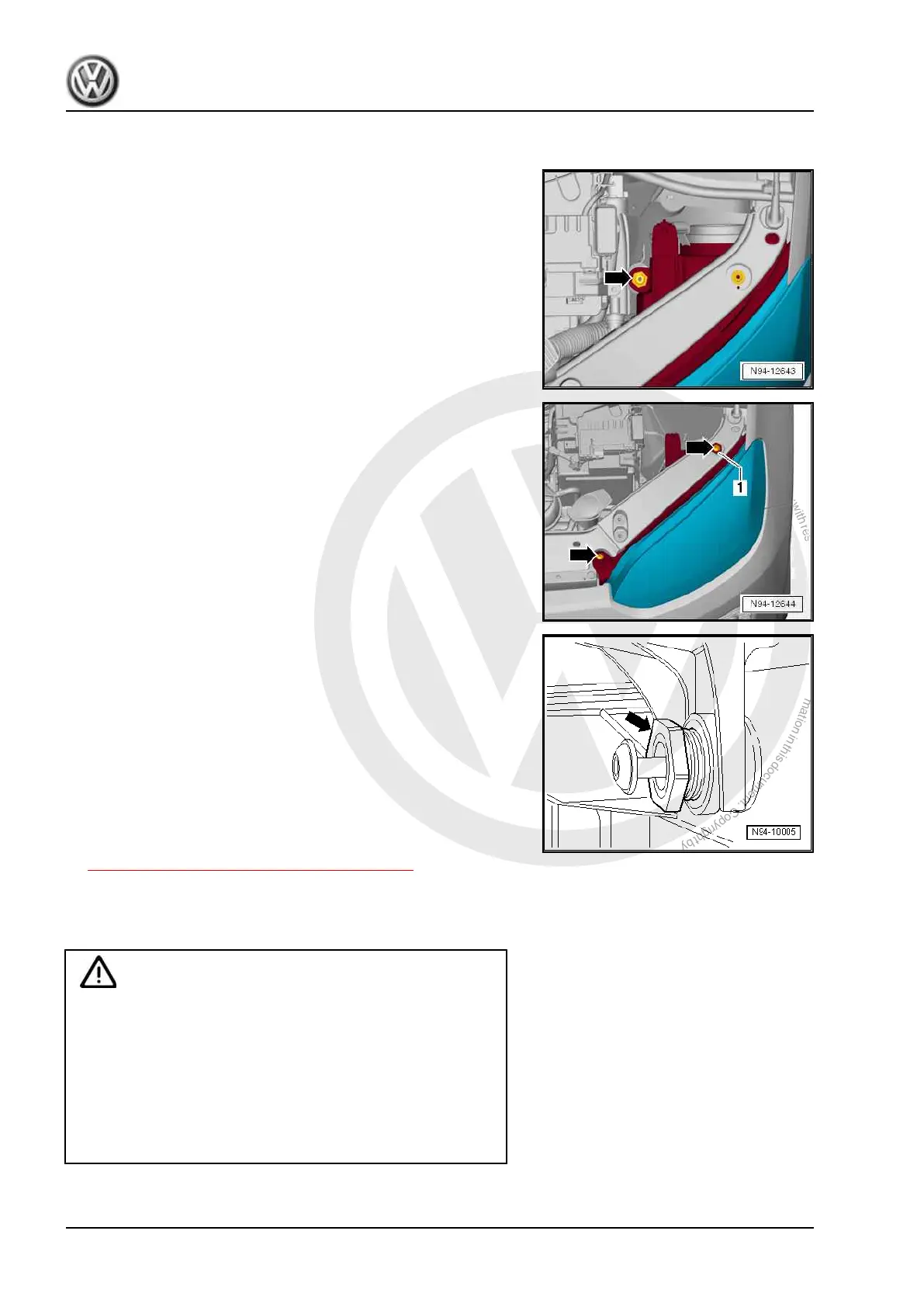

– Loosen rear securing bolt -arrow-.
– Loosen inner and upper securing bolt -arrows-.
– Adjust shut lines/flushness to body by pushing in or pulling out
alignment bush -arrow- on headlight.
– Tighten bolts.
– Check headlight installation position to ensure gaps are even;
correct if necessary.
– Check functions of headlight.
– Checking headlight settings and adjusting headlight if neces‐
sary “Maintenance manual” ⇒ Maintenance ; Booklet 35.1 ;
Descriptions of work
Specified torques
♦ ⇒ “1.1 Assembly overview - headlight”, page 64
1.5 Removing and installing front turn signal
bulb -M5- / -M7-
Caution
Filament bulbs and gas discharge bulbs under pressure!
Danger of injury due to bursting filament lamps and gas dis‐
charge bulbs!
♦ Remove filament bulbs and gas discharge bulbs carefully.
♦ Always wear safety goggles and gloves when removing
and installing filament bulbs or gas discharge bulbs!
♦ Avoid contact with burst glass bulbs.
up! 2012 ➤
Electrical system - Edition 03.2017
68 Rep. gr.94 - Lights, bulbs, switches - exterior
