3 Rear window wiper system
⇒ “3.1 Assembly overview - rear window wiper system”,
page 57
⇒ “3.2 Removing and installing wiper blade”, page 58
⇒ “3.3 Removing and installing wiper arm”, page 58
⇒ “3.4 Adjusting wiper arm”, page 59
⇒ “3.5 Removing and installing rear window wiper motor V12 ”,
page 60

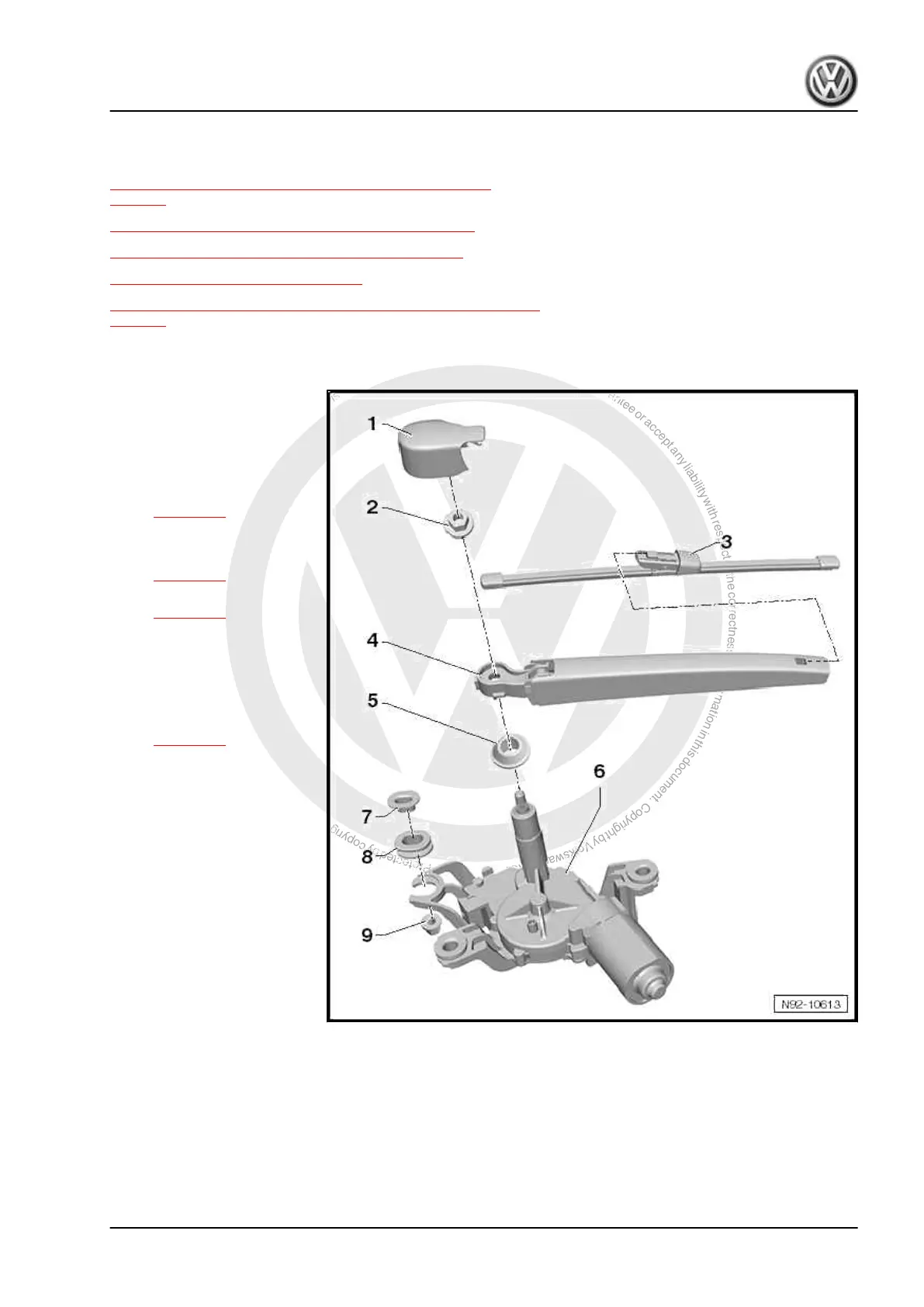

3.1 Assembly overview - rear window wiper system
1 - Cover
2 - Securing nut
❑ Specified torque: 12 Nm
3 - Joint-free wiper blade
❑ Removing and installing
⇒ page 58
4 - Wiper arm
❑ Removing and installing
⇒ page 58
❑ Adjusting park position
⇒ page 59
5 - Seal
❑ In rear window
6 - Rear window wiper motor -
V12-
❑ Removing and installing
⇒ page 60
7 - Spacer
8 - Rubber ring
9 - M6 securing nut with wash‐
er
❑ Specified torque: 8 Nm
up! 2012 ➤
Electrical system - Edition 03.2017
3. Rear window wiper system 57
