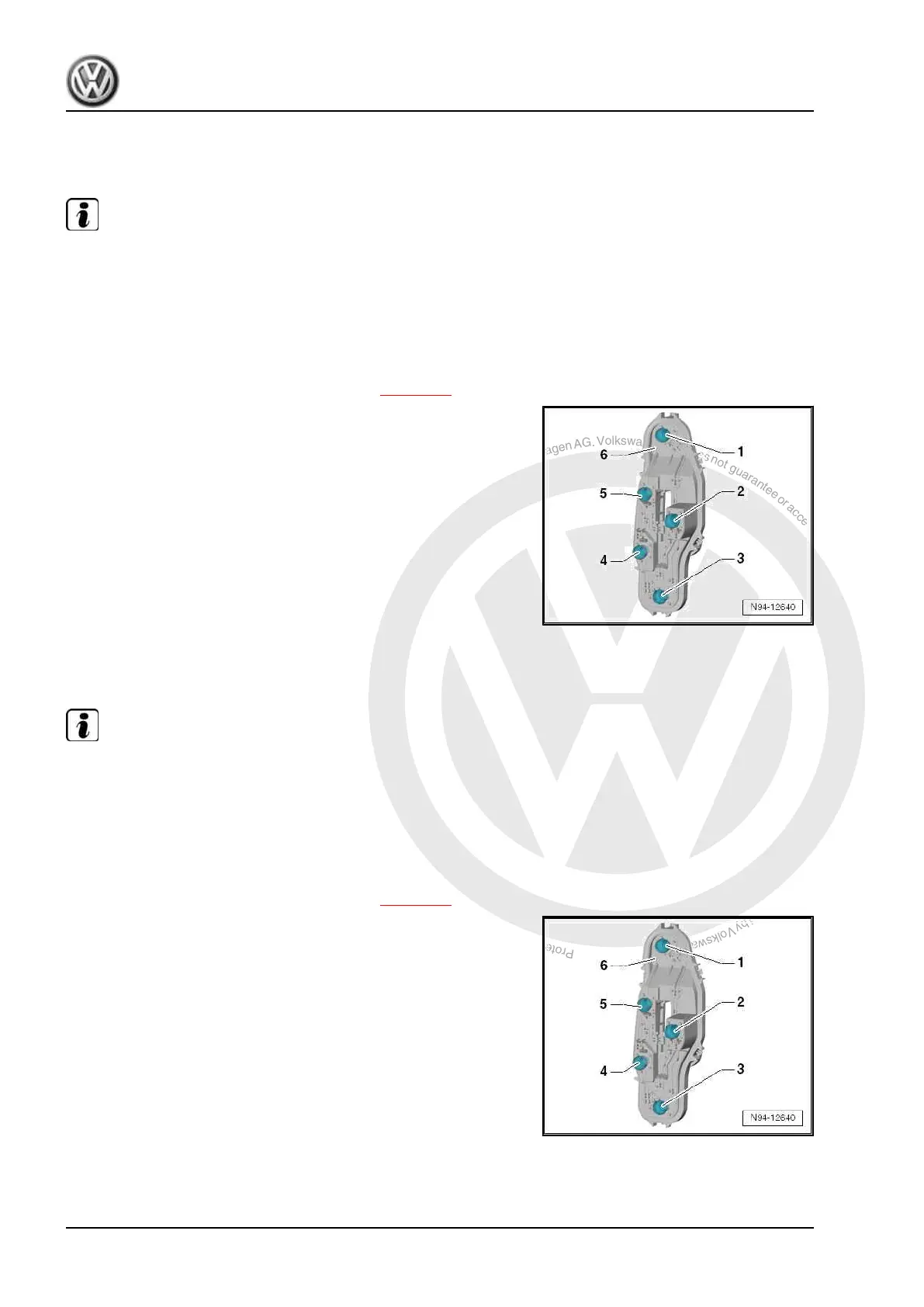

4.6 Removing and installing brake and tail
light bulb -M21- / -M22-
Note
The removal and installation procedure is described for the left-
hand side. The removal and installation procedure for the right-
hand side is basically the same.
Removing
– Switch off ignition and all electrical consumers, and withdraw
ignition key.
– Remove tail light bulb carrier in side panel ⇒ page 85 .
– Push bulb for brake light and tail light -1- into holder, turn anti-
clockwise and pull upwards out of bulb carrier -6-.
Bulb for brake light and tail light : filament bulb 12V, P21/4W
Installing
Install in reverse order of removal.
4.7 Removing and installing reversing light
bulb
Note
The removal and installation procedure is described for the left-
hand side. The removal and installation procedure for the right-
hand side is basically the same.
Removing
– Switch off ignition and all electrical consumers, and withdraw
ignition key.
– Remove tail light bulb carrier in side panel ⇒ page 85 .
– Push reversing light bulb -4- into holder, turn anti-clockwise
and pull upwards out of bulb carrier -6-.
Reversing light bulb : filament bulb 12V, R10W
Installing
Install in reverse order of removal.
up! 2012 ➤
Electrical system - Edition 03.2017
88 Rep. gr.94 - Lights, bulbs, switches - exterior
