Front passenger side:

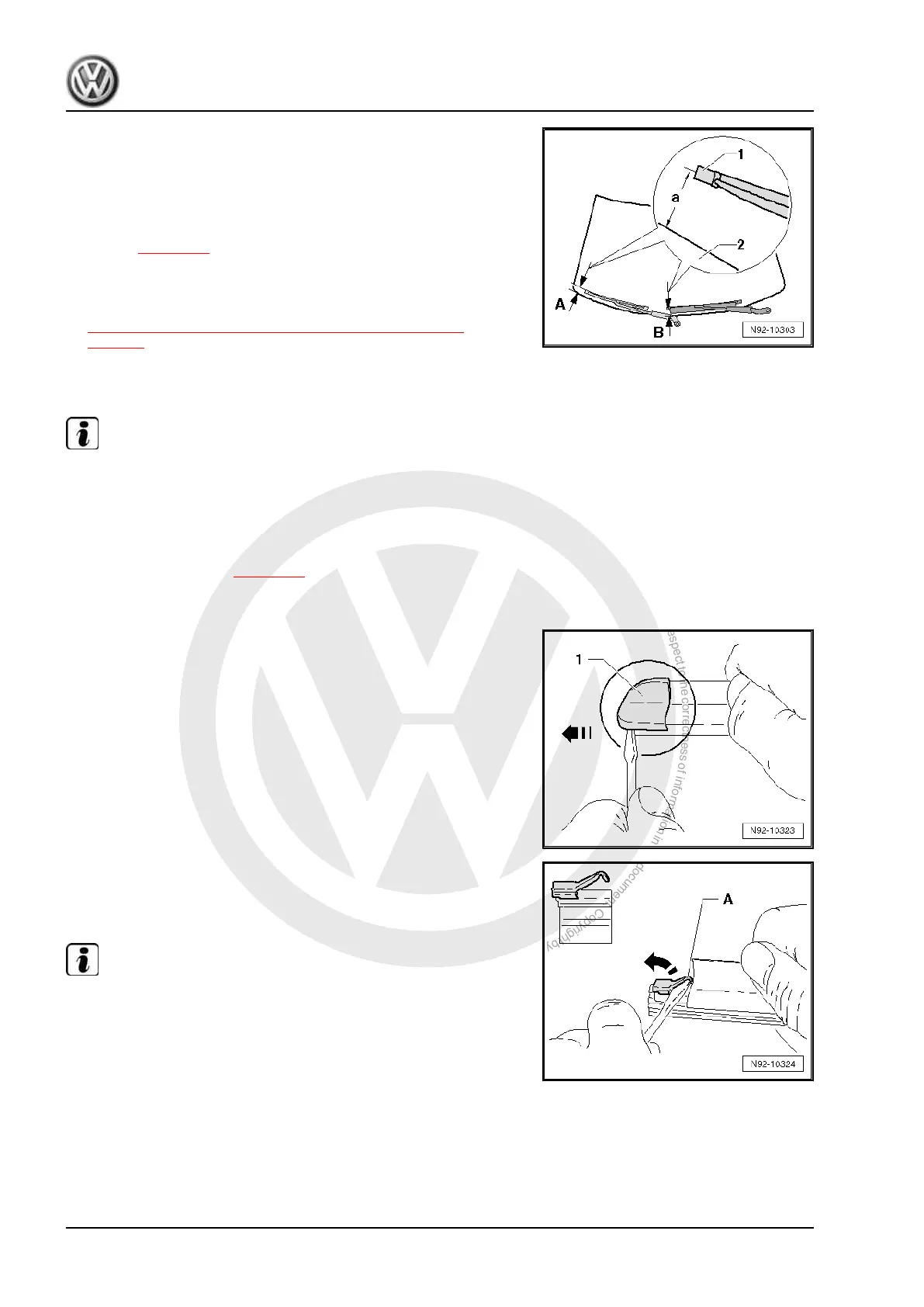

Set wipers to dimension -a- between centre of wiper rubber -1-
and upper edge of plenum chamber cover -2-.
♦ Dimension -a- = 30 mm.
– Adjust wiper blade park position by moving wiper arm if nec‐
essary ⇒ page 42 .
– Tighten nut.
Specified torques
♦ ⇒ “1.1 Assembly overview - windscreen wiper system”,
page 40
1.6 Renewing windscreen wiper rubber
Note
Refer to chapter »Distinguishing features of joint-free wiper
blades« in Workshop manual “Electrical system, General infor‐
mation”. A link to this workshop manual is not possible at present
for technical reasons. Please select the workshop manual “Elec‐
trical System, General Information” manually in ELSA.
– Remove wiper blade ⇒ page 41 .
– Check to see on which side the wiper rubber blade cannot be
pushed into the guide.
– On the side that cannot be pushed into the guide, carefully
lever off the cap -1-.
– Using a suitable screwdriver, open the wiper rubber stop -A-
by bending up.
– Renew wiper rubber blade.
Note
Ensure that wiper rubber blade is seating correctly in wiper rubber
blade guides.
up! 2012 ➤
Electrical system - Edition 03.2017
46 Rep. gr.92 - Windscreen wash/wipe system
