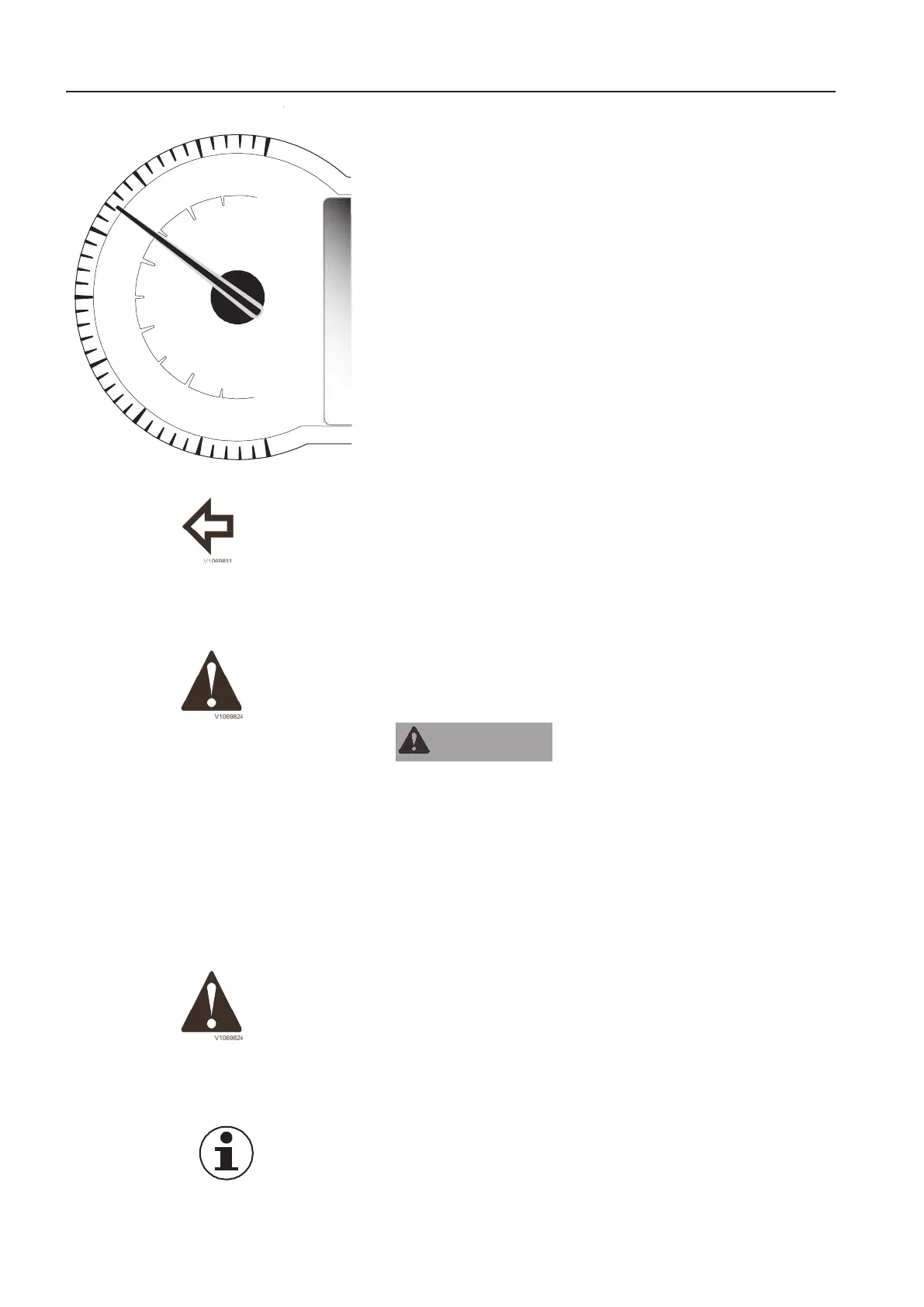

17 Speedometer
The speedometer shows the machine's current ground speed and
is graded between 0 up to 80 km/h (0 - 50 mph).
18 Direction indicator, left
The control light indicates left direction indicator. The light flashes
when the lever is moved downward, see section Controls on page
126
.
The operator is informed of failure of the direction indicator's bulb
with a warning on the information display unit, see section
Information display unit on page
51
.
19 Alarm — Central warning, red
If the light flashes during operation:
WARNING
Risk of serious injury.
Malfunction could lead to loss of machine control resulting in
accidents and serious injury.
Warning light combined with buzzer indicate serious malfunction.
Stop the machine immediately and investigate the cause of the
malfunction.
In addition to the activated control light, an alarm display is shown
on the information display unit, the alarm is added to the message
list, and the buzzer sounds until the malfunction is solved.
See section Alarm displays on page
76
.
20 Alarm — Central warning, amber
Turns on in case of abnormal condition. In addition to the
activated control light, an alarm display is shown on the
information display unit, the alarm is added to the message list,
and the buzzer emits four short signals. Actions may have to be
taken depending on the affected function, investigate the cause at
the next stop, see page
85
.
21 Information symbol, green
Indicates deviation of some kind. An alarm display is shown on the
information display unit, and the buzzer emits four short signals.
See section
Alarm displays on page
99
.
V1091834
0
10
20
30
40
50
10
20
30
40
mph
km/h
60
70
80
48
Instrument panels
Instrument panel, centre
