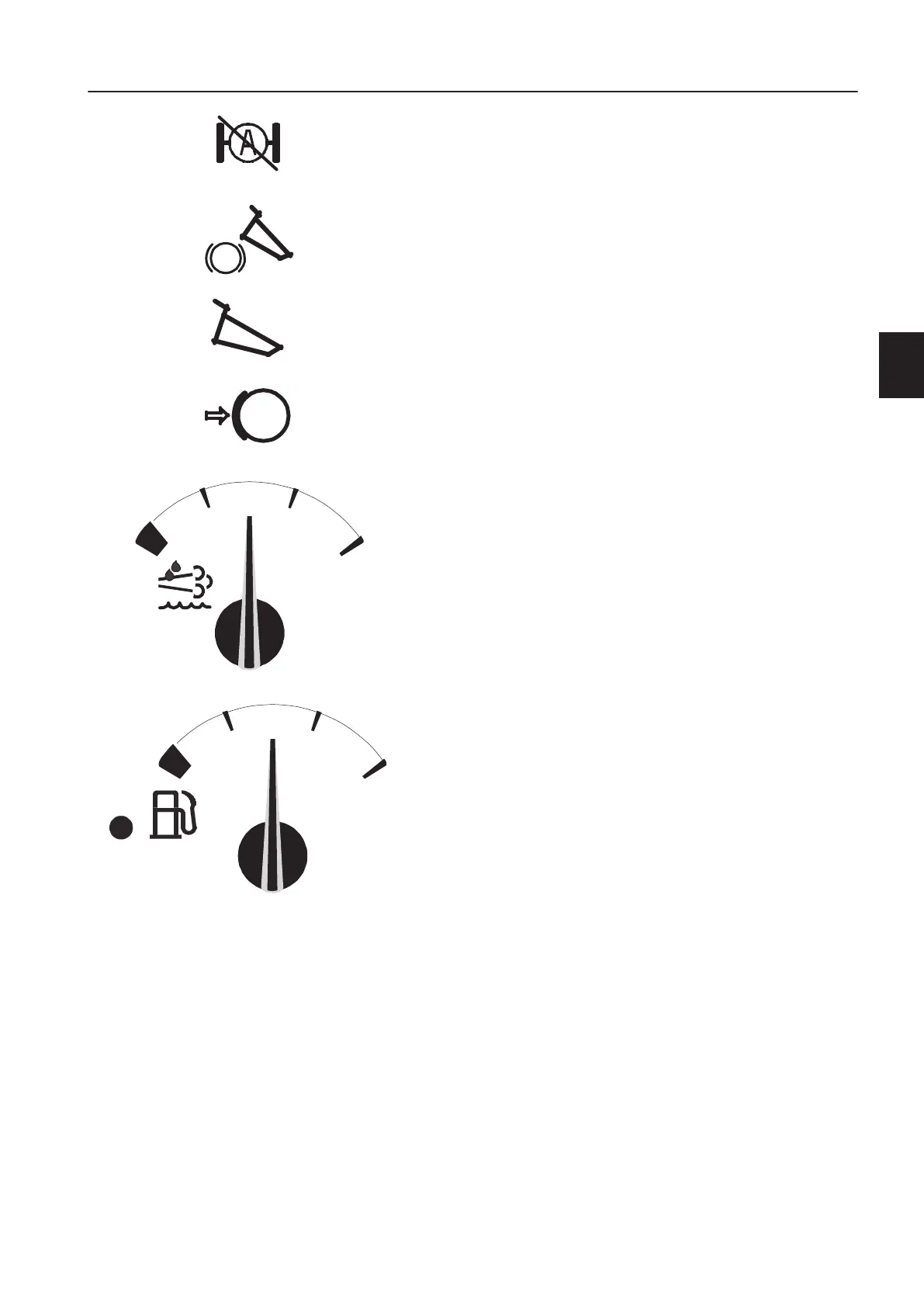

11 ATC (Automatic Traction Control) disengaged
The indicator light is on when the ATC (Automatic Traction
Control) function is deactivated.
12 Load and dump brake
The indicator light is on when the load and dump brake is
activated, see page
190
.
13 Body up
Turns on when the load body is up.
14 Service brake applied
15 AdBlue®/DEF level (Only applies to machines with
engine alternative D11L or D11M)
Shows AdBlue®/DEF-level in tank. When the gauge needle
moves into the red sector there is enough AdBlue®/DEF left for
approx. one hour of normal operation.
16 Fuel level
Shows fuel level in tank. When the gauge needle moves into the
red sector, the light to the left of the gauge turns on. The remaining
fuel volume at that time is enough for approx. one hour of normal
operation.
Instrument panels
Instrument panel, centre
