Volvo IPS950 - Raw Water System

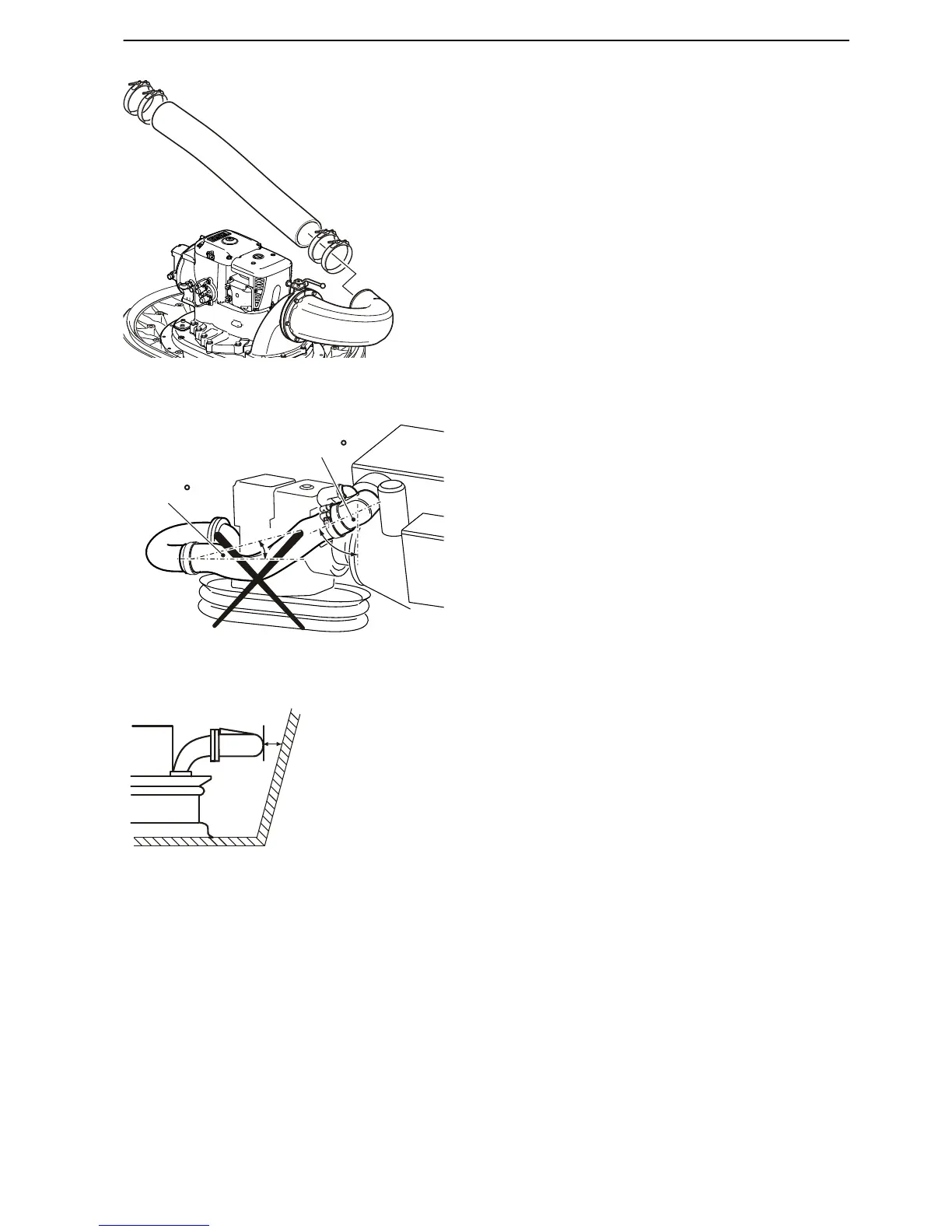

6 Slide
the exhaust hose onto the exhaust elbow so
that it overlaps by 100 mm (3.94") and fasten with
two hose clamps.
Slide the other end of the hose onto the engine
exhaust pipe so that it overlaps by 100 mm (3.94")
and fasten with two hose clamps.
Tighten the four clamps to 15–20 Nm (11–15
lbf.ft).
7 Tighten the exhaust elbow bolts to 48–52 Nm
(35–38 lbf.ft).
8 Make sure the exhaust hose does not sag. When
installing a longer drive shaft, support the hose as
necessary.
IMPORTANT!
Minimum distance (Y) between exhaust elbow and
inside of transom: 50 mm (2").
P0010526
Min.45
Min.15
P0014300
The exhaust elbow must be inclined by at least 45%. The riser must be inclined at least
15%.
Y
P0006190
Installation, Volvo Penta IPS
47704162 10-2014 © AB VOLVO PENTA 99
