Determine and check the water level in the design
study

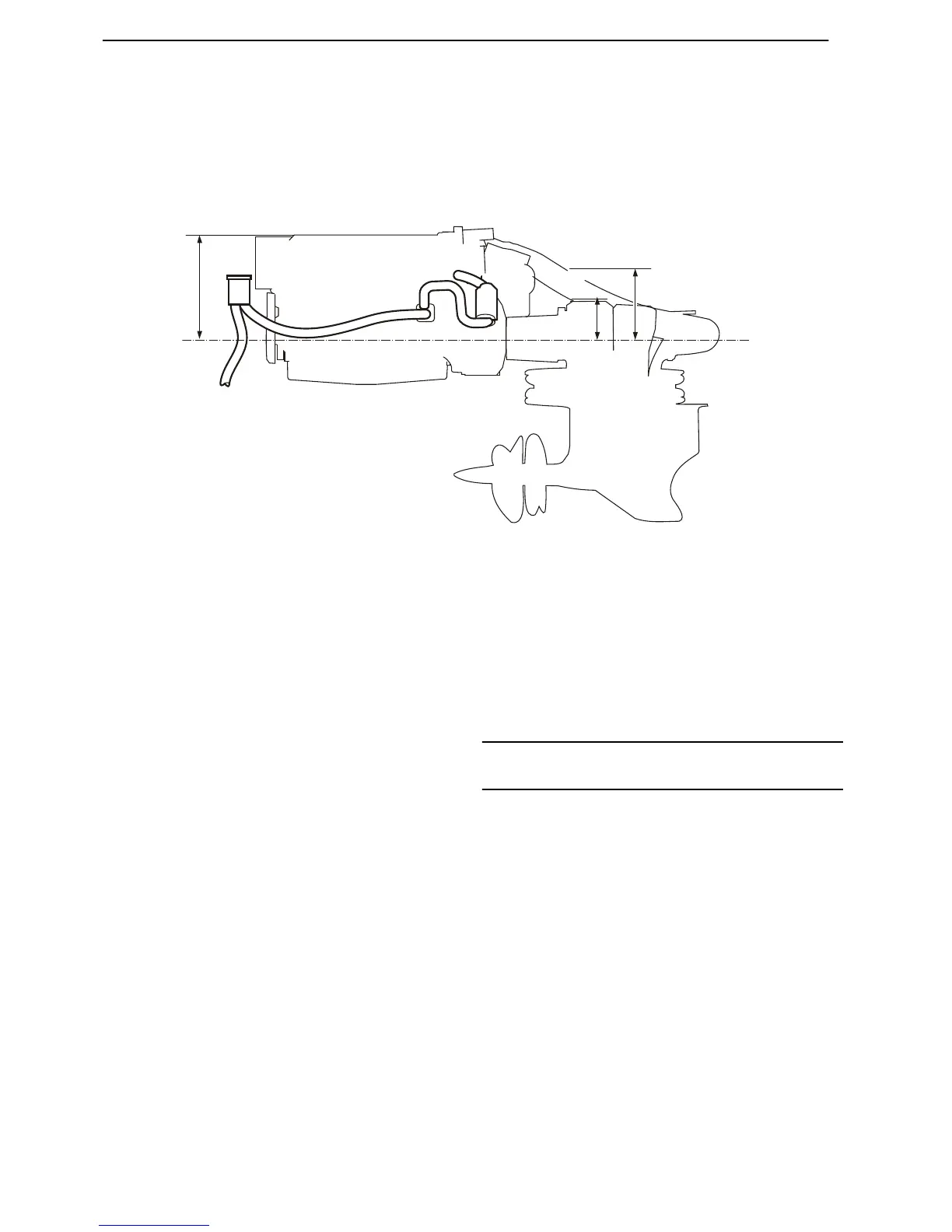

Distance between the crankshaft center-line and
engine top cover (E): 675 mm (26.6"). The distances
below may not be exceeded regardless of load condi-
tions.
Distance
to the water level from the crank-
shaft center-line (CL)
A (no riser)
Max. 283 mm (11.1")
(1)
B (riser)
Max. 461 mm (18.2")
(2)
1) A riser is required if the dimension is exceeded.
2)
If this dimension is exceeded a special riser must be made.
NOTICE! The riser provides a 115 mm (4.5”) height
increase at the recommended 45° installation angle.
Installation, Volvo Penta IPS
82 47704162 10-2014 © AB VOLVO PENTA
