Volvo IPS950 - Alternator

Alternator

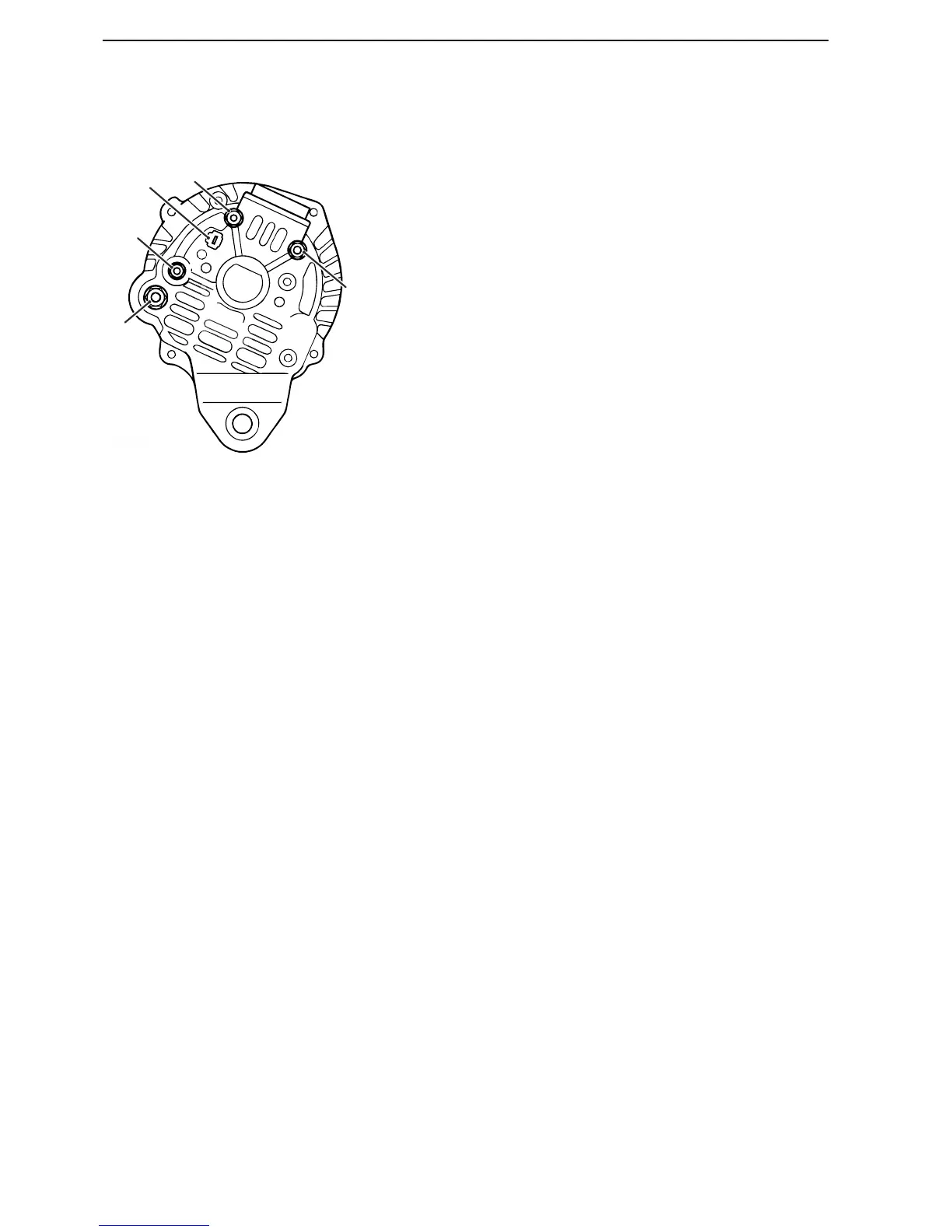

Alternator connnections
B+ Battery positive (+)
B- Battery negative (-)
S Sensor cable
D Magnetization
W Rpm (not used)
Extra Alternators
Refer to the Power Transmission chapter for informa-
tion regarding auxiliary alternators.
B+
D
S
W
B-
P0004716
