Connection
Connections to Starter Motor
Connection of battery cables, 2-pole
system
to the D11 starter motor for supply
to the SUS.

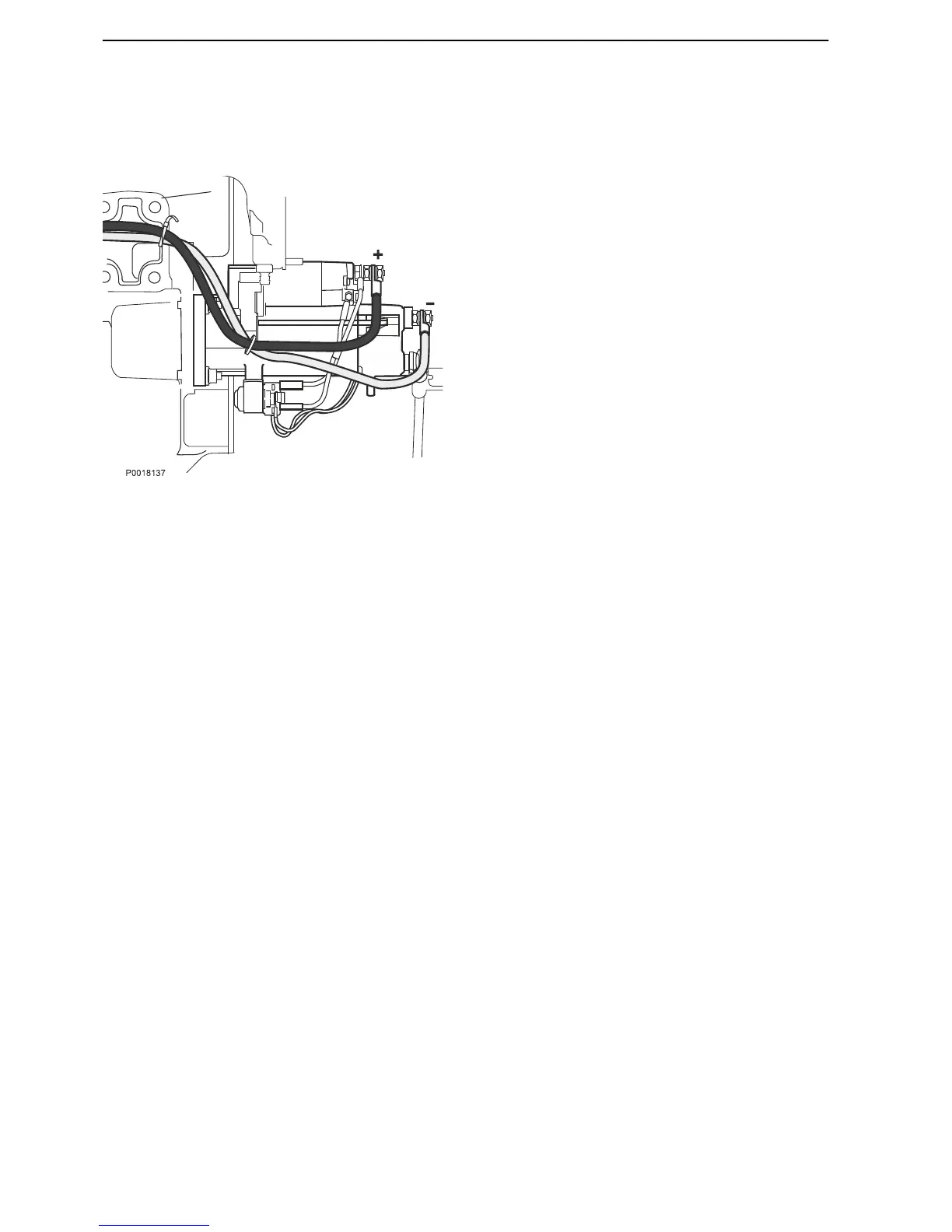

The negative cable (-) from the battery is connected to
the starter motor negative terminal (-) (white cable in
illustration).
The positive cable (+) from the battery is connected to
the starter motor positive terminal (+) (black cable in
illustration).
Tightening torque
Positive terminal (+): 16–20 Nm (11.8–14.8 lbf.ft)
Negative terminal (-): 22–26 Nm (16.2–19.2 lbf.ft)
Refer to the Installation page 121 chapter for dimen-
sioning of start batteries and cables.
Installation, Electrical System
132 47704162 10-2014 © AB VOLVO PENTA
