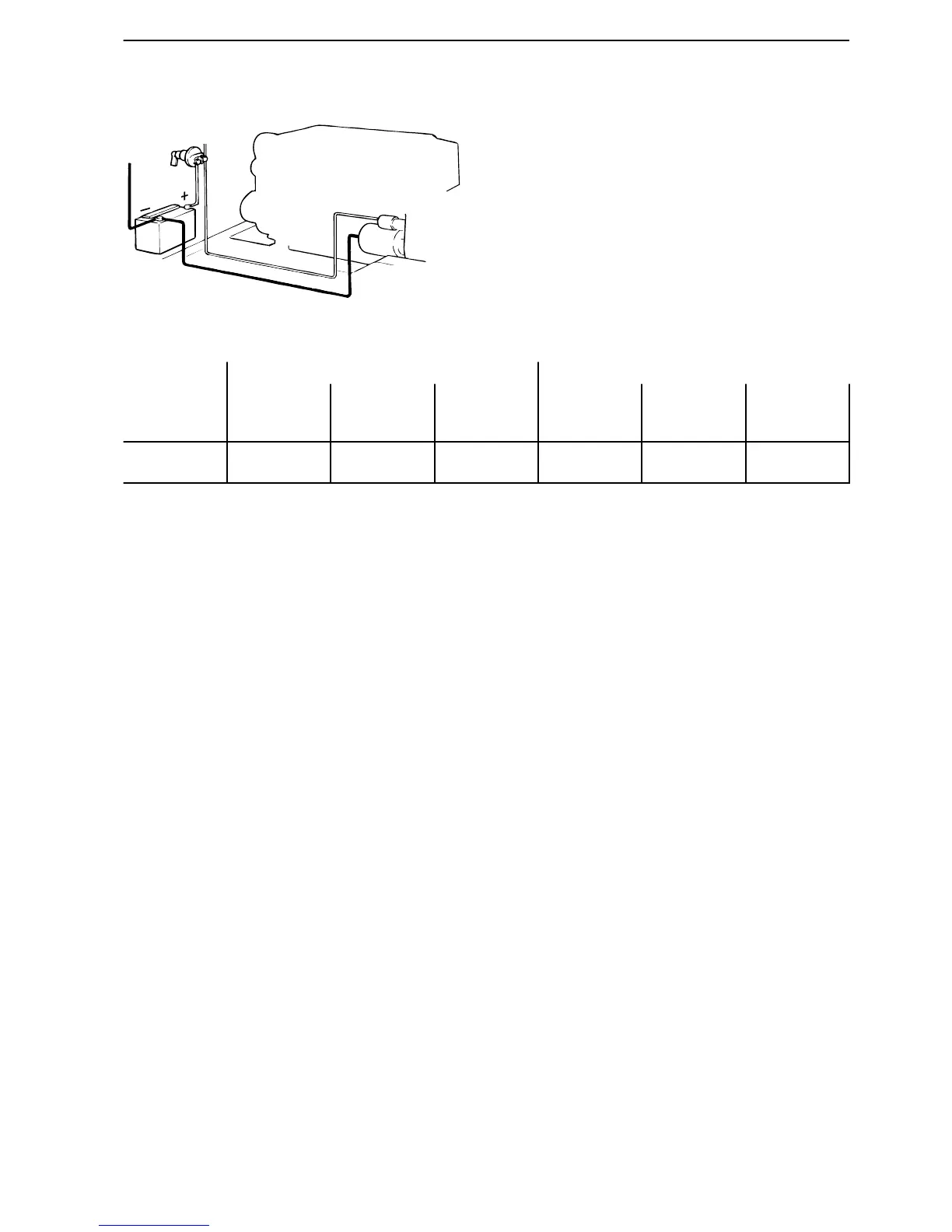

Volvo IPS950 - Starting Battery Cable Area

Main switch
A main switch must be installed on the positive side.
When the cables are run through bulkheads both the
positive
and negative cables must be fitted with rubber
bushings. Locate the main switch on the outside of the
engine compartment, but as close to the engine as
possible in order to reduce cable length.
Technical requirements, main switch
Nominal capacity
Normal volt-
age
Continuous Under 5 sec. Under 5.5
min.
Operating
temperature,
max.
Standard Protection
rating
≤48 V 150 A 1 000 A 450 A +85 °C
+185 °F
SAE marine
J1171
IP 66
Accessory Battery
The use of a separate battery array for service power
consumption is mandatory.
Volvo Penta recommends the use of a charge distrib-
utor to charge the service batteries.
IPS800
P0004714
Installation, Electrical System
