Charge distributor
12 V and 24 V, engine and boat
Example
The charge distributor automatically charges two bat-
tery circuits, independently of each other. One circuit
is
used to start the engine and the other circuit for other
electrical equipment.
This means that if the service battery is discharged the
engine will still be able to be started with the start bat-
tery.
Connect the sensor cables from the alternator to the
service battery arrays.

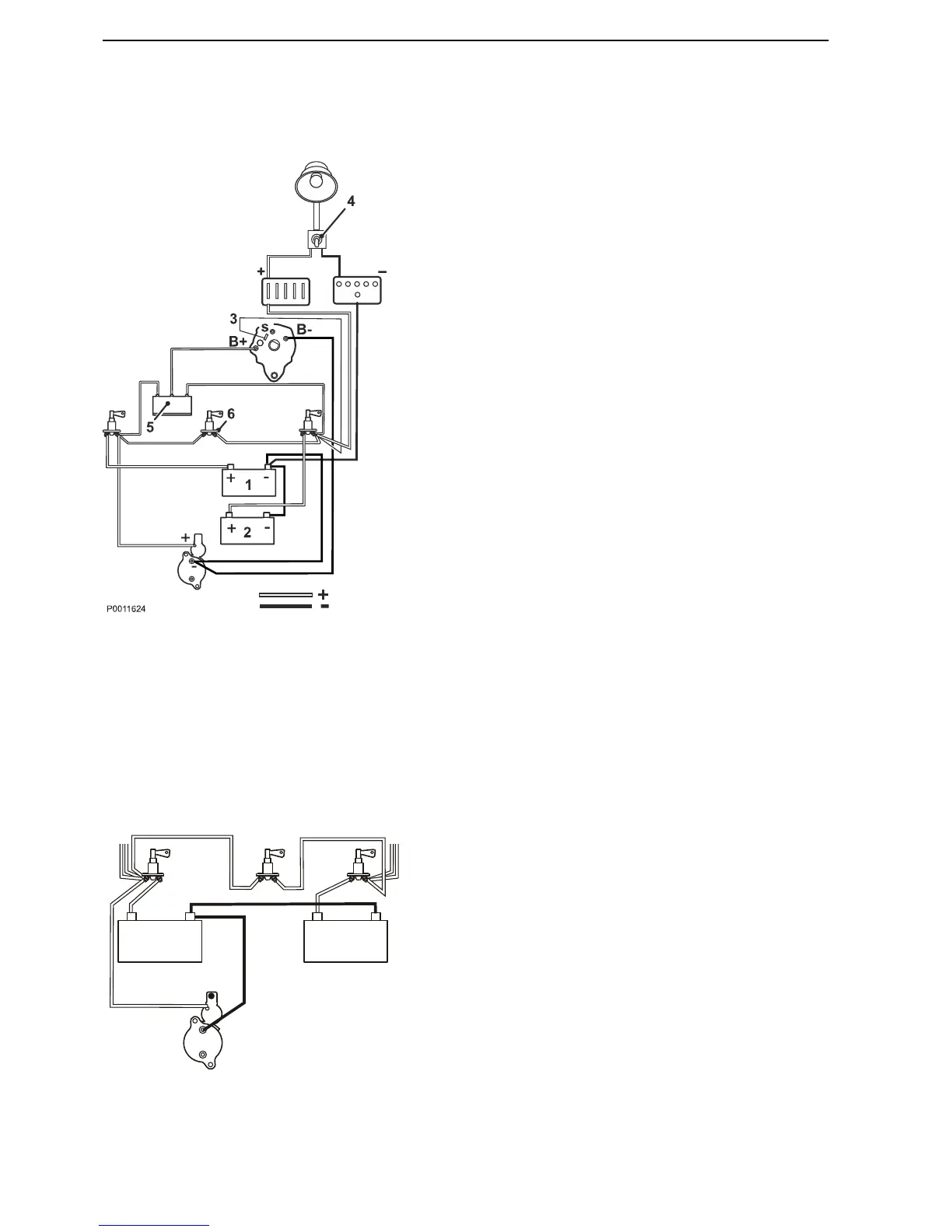

Cross-over Switch
The use of a battery changeover switch between the
service battery and the start battery is recommended.
1 Start battery
2 Service battery
3 Battery changeover switch
4 Start motor
1 Start battery
2
Service battery
3 Sensor cable
4 Power consumers (accessories)
5 Charge distributor
6 Battery changeover switch
Installation, Electrical System
126 47704162 10-2014 © AB VOLVO PENTA
