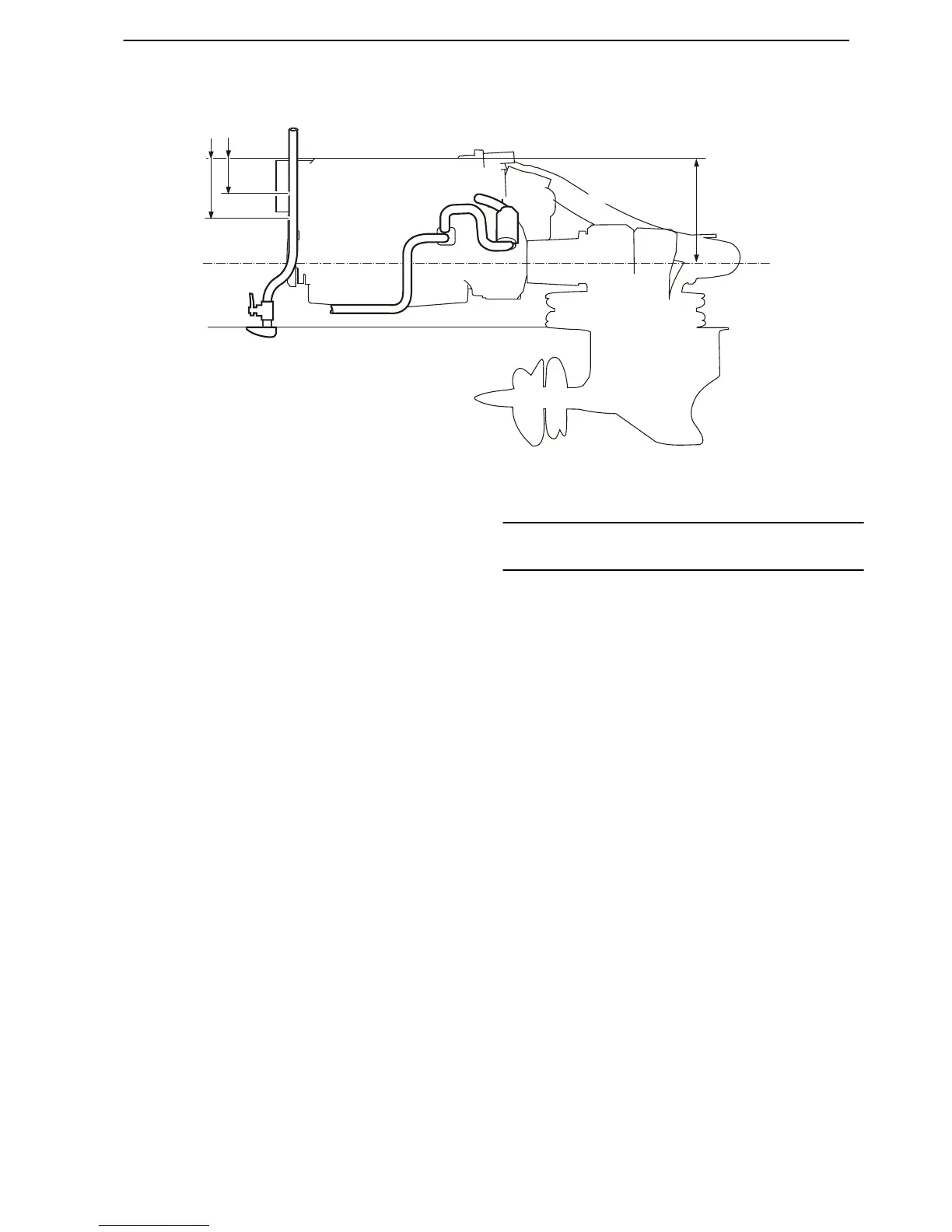

Water level below engine top cover
A (no riser)
Min. 392 mm (15.4")
(1)
B
(riser)
Min. 214 mm (8.4")
(2)
1) A riser is required if the dimension is not reache.
2) If this dimension is not reached a special riser must be
made.
NOTICE!
The riser provides a 115 mm (4.5”) height
increase at the recommended 45° installation angle.
Checking water level after launch
Distance between the crankshaft center-line and
engine top cover (E): 675 mm (26.6").
NOTICE! Risk of water entry. Have a transparent hose
ready.
1 Disconnect the water hose at the water inlet.
2 Attach the transparent hose to the connection.
3 Measure from the engine cover down to the water-
line.
Installation, Volvo Penta IPS
47704162 10-2014 © AB VOLVO PENTA 83
