Engine Foundation

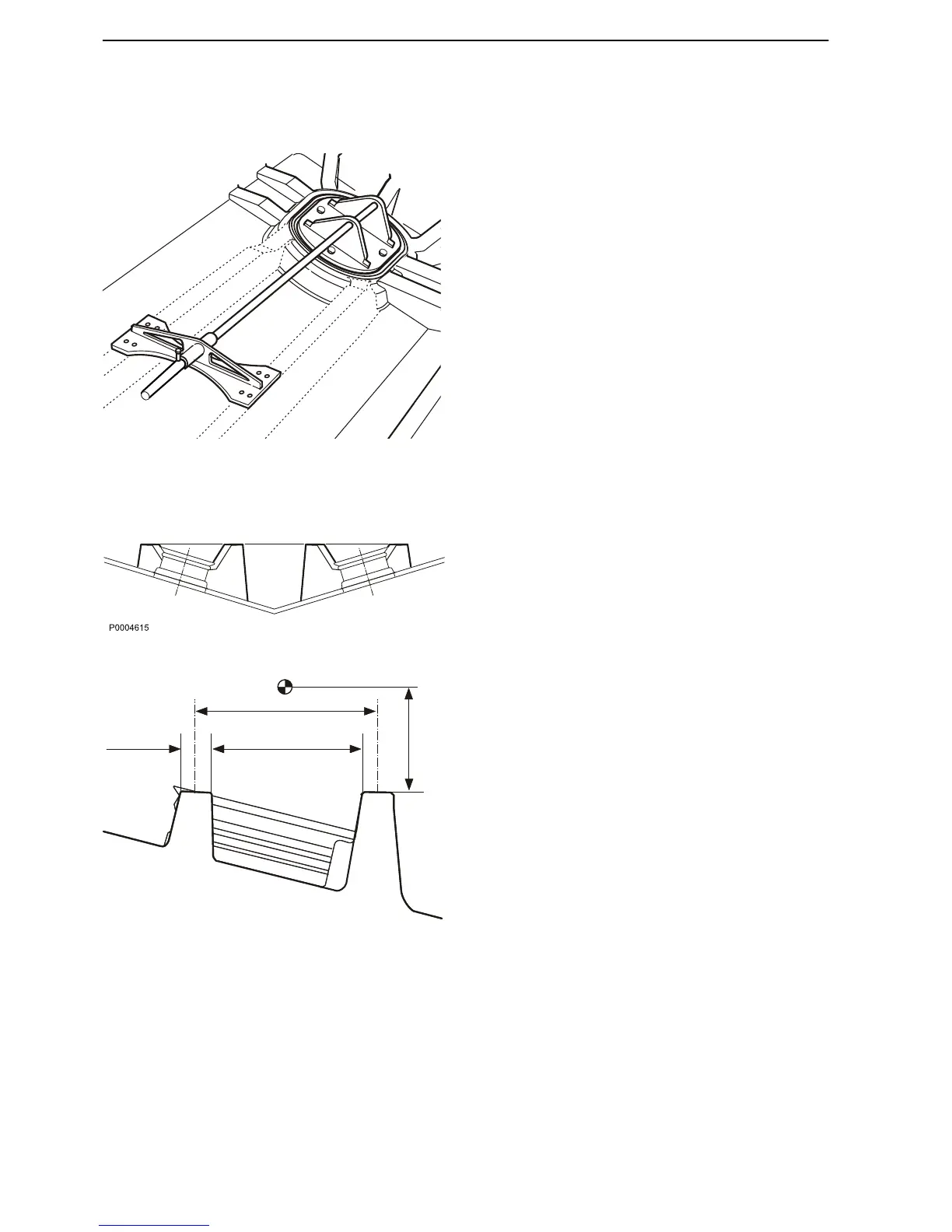

Installing a drilling jig
Build up the engine bed until it fits along a drilling jig
attached to the hull plug/insert.
Refer to the Installation Tools and Documenta-
tion
page 10 chapter for the tool number for each type
of installation.
Hull plugs
Slide the drilling jig stay into the hull plug attachment
and secure it with a pin.
Pre-formed hull inserts
Install the special tool by setting its counter piece inside
the insert and bolting it to the drilling jig plate. Make
very sure that the drilling jig is properly secured in the
insert.
Engine bed structure
General
The engine beds must be horizontal athwartships.
IMPORTANT!
The engine axis must be straight in order to minimize
vibrations. Deviations may not exceed ±4°.
Build the engine bed up to the following dimensions:
A 120 mm (4.7")
B Min 590 mm (23.2")
C 700 mm (27.6")
D 115 mm (4.5")
Installation, Volvo Penta IPS
84 47704162 10-2014 © AB VOLVO PENTA
