Copper pipes

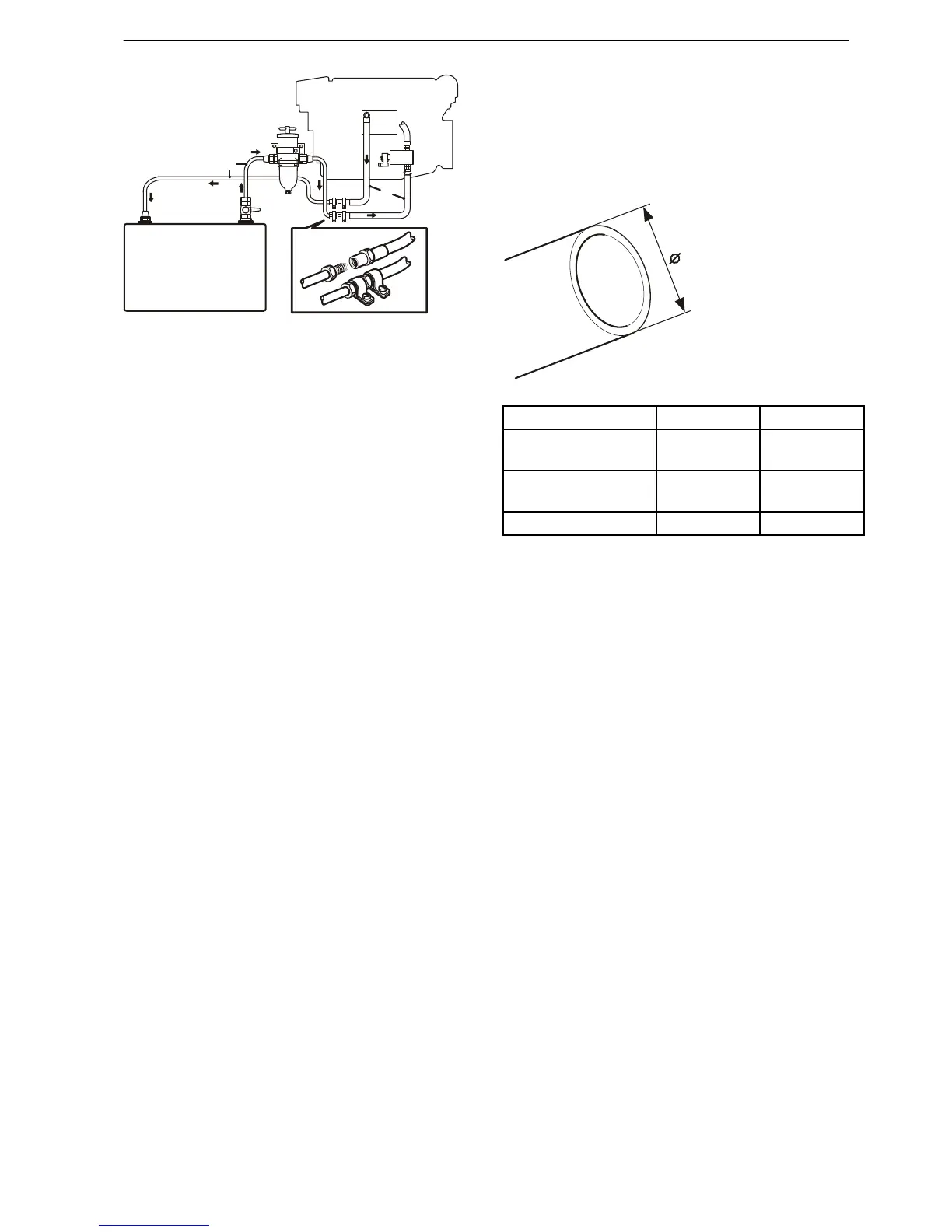

The illustration shows the transition from flexible fuel
hose (1) to copper pipe (2). Thread M18x1.5.
Refer
to the table below for required minimum external
copper pipe diameter.
P0010572
Line length <6 m (19.7 ft.) >6 m (19.7 ft.)
Diameter,
feed line
10 mm (3/8") 12 mm (1/2")
Diameter,
return line
10 mm (3/8") 10 mm (3/8")
Max suction height 2.0 m (6.5 ft.) 2.0 m (6.5 ft.)
1
2
P0010575
Installation, Fuel System
