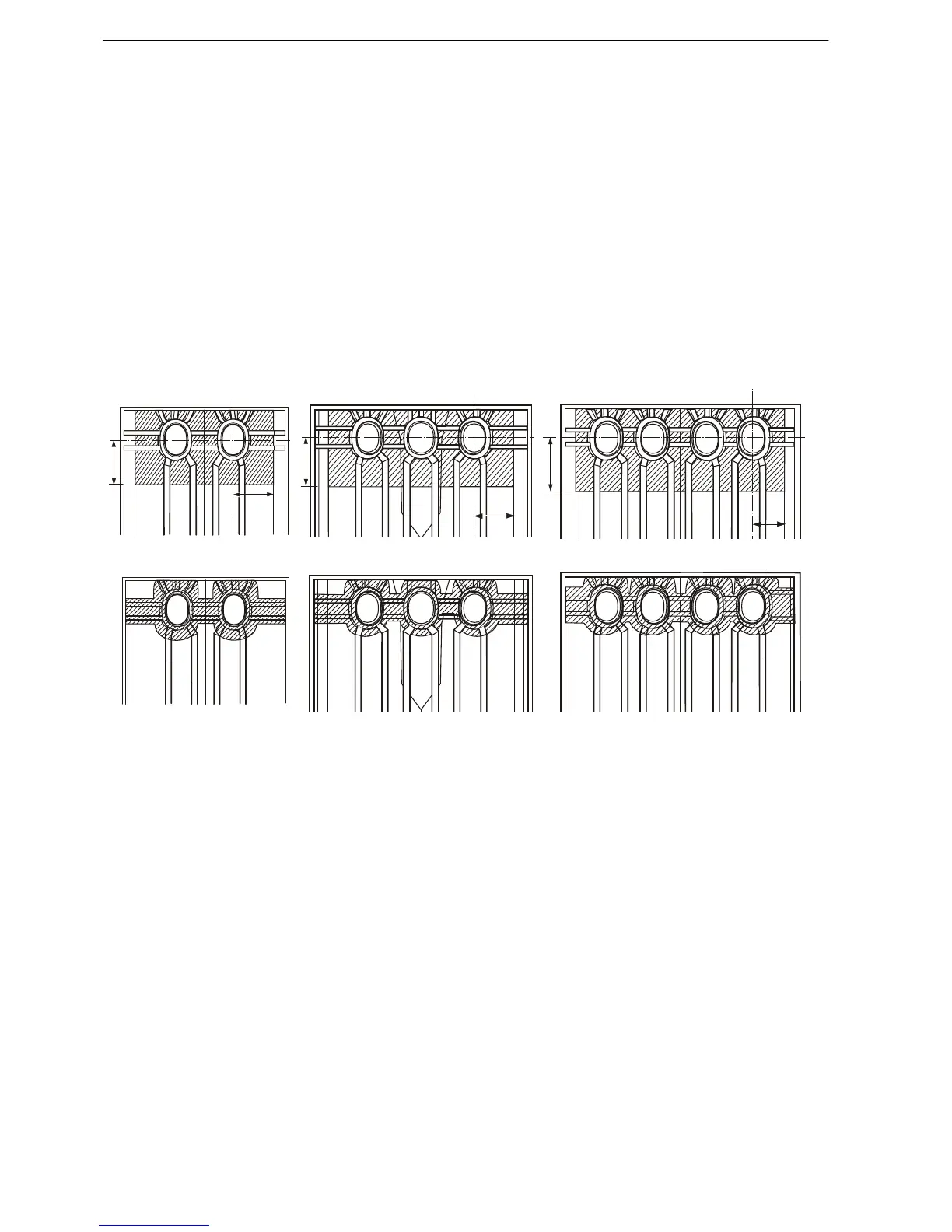

Zones of Requirement
Zon A
Within zone A, both Volvo Penta requirements found
in Lamination
of Hull Inserts page 58 and Lamination
of Hull Mold Plugs page 72 respectively, and general
scantling rules applies. Minimum required hull bottom
thickness within this zone is given by the thickest
requirement of these.
a 1250 mm (49.2”)
b 950 mm (37.4”)
c 950 mm (37.4”)
Zon B
Zone B refers to the lamination of the reinforcement
rings and the reinforcement beams. See require-
ments in Lamination of Reinforcement
Beams page 76 and Laminating the reinforcement
beams page 79.
a
a
a
c
c
b
A
A
A
B
B
B
P0011849
Installation, Volvo Penta IPS
80 47704162 10-2014 © AB VOLVO PENTA
