Safety cover
In
addition to the drive shaft cover installed on the drive
unit, it is advisable to install a safety cover on the
remaining section of the jackshaft.

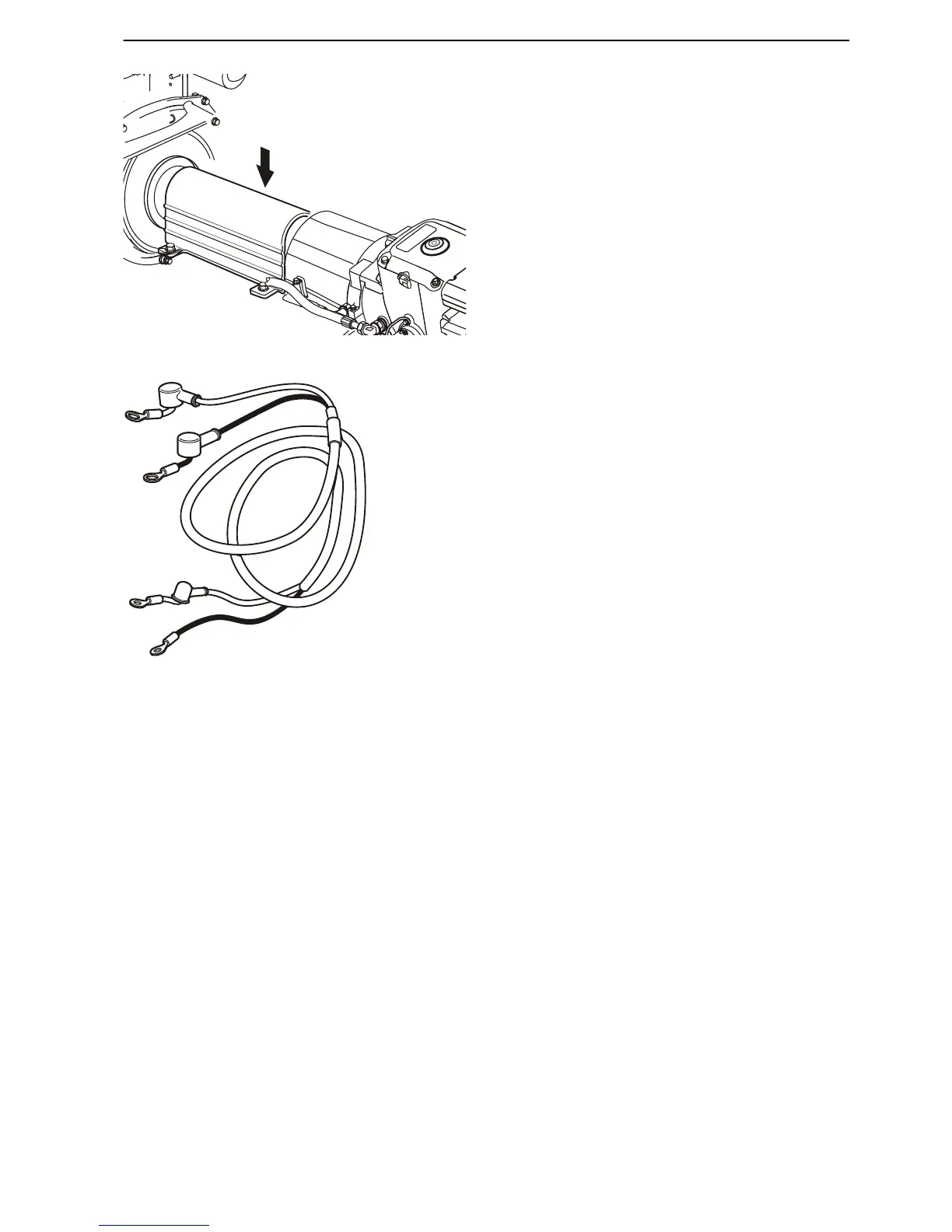

Example of jackshaft safety cover
Jackshaft shaft safety covers are not supplied by Volvo
Penta. These covers must be made by the boat builder
and designed according to local regulations and appli-
cable legislation.
Harnesses and hoses
Electrical supply harnesses engine–SUS and oil
hoses from the oil cooler to the transmission are
included in the jackshaft installation kit.
NOTICE!
Make sure that the oil hoses are installed
correctly; refer to Oil cooler page 95.
Exhaust hoses are available in standard sizes and
must be ordered separately according to drive shaft
length.
Exhaust hose diameter: 125 mm (5")
Installation instructions
For further information, refer to the installation instruc-
tions included in the jackshaft kit.
