User’s Manual
EMB-9670/9673 Series User’s Manual
27

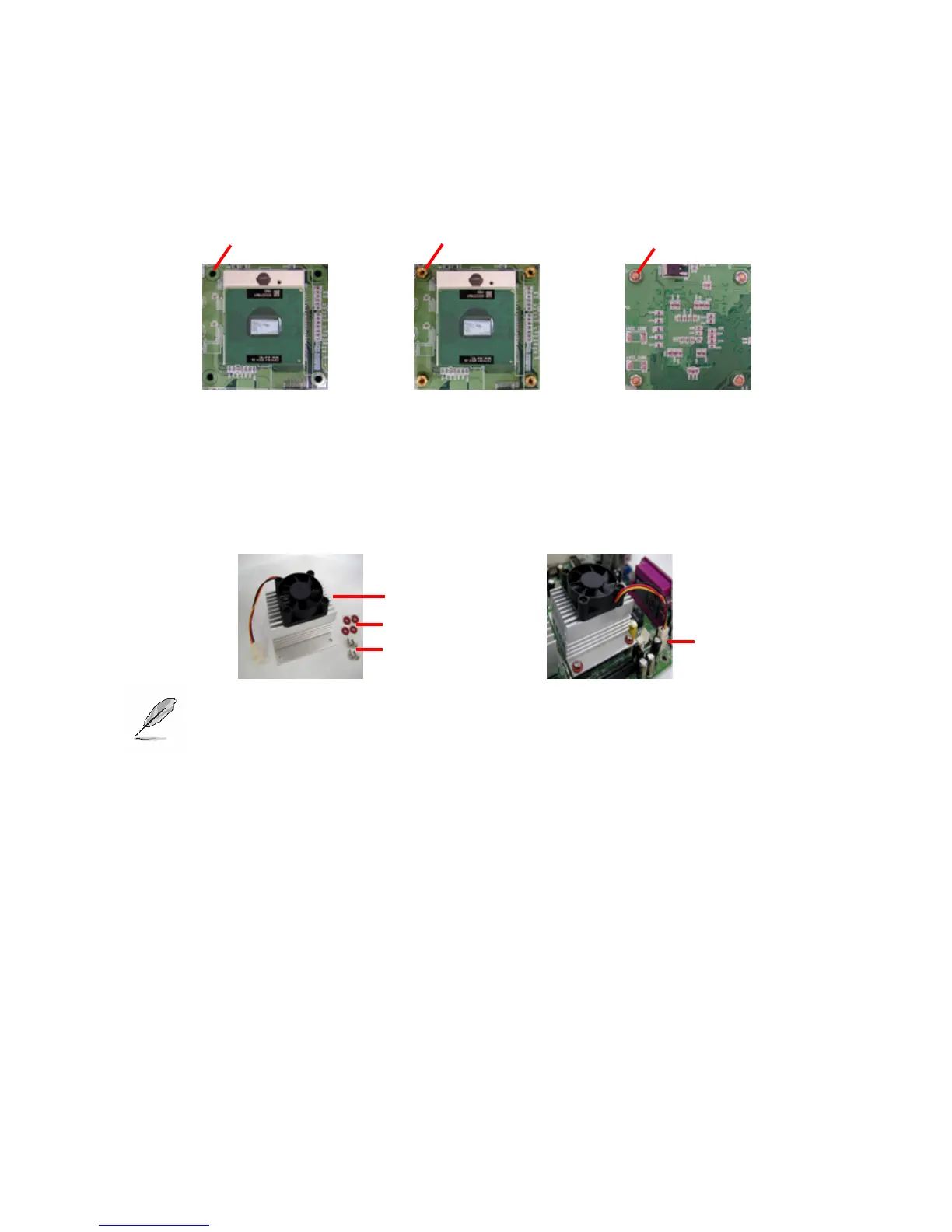

2.1.1.2 Installing the Fan and Heat Sink
• Insert the copper studs to the screw holes around the CPU socket from the top
through the rear side of the board with screw nuts fastened.
• Match and place the CPU fan and heat sink assembly on the top of the CPU and
copper studs. Tighten the screws into the copper studs through washers and the
screw holes around the heat sink.
• Place the CPU Fan Connector.
Note: Make sure the CPU fan and heat sink assembly and the CPU top surface
are in total contact to avoid CPU overheating problem that would cause the
system to hang or unstable
2.1.1.1 Removing CPU
• Disconnect the CPU fan connector.
• Remove the CPU fan and heat sink assembly first.
• Unfasten the copper studs from the board.
• Unlock the Pentium M processor.
• Carefully lift up the existing CPU to remove it from the socket.
• Follow the steps of installing a CPU to change to another one.
