EMB-9670/9673 Series
34 EMB-9670/9673 Series User’s Manual

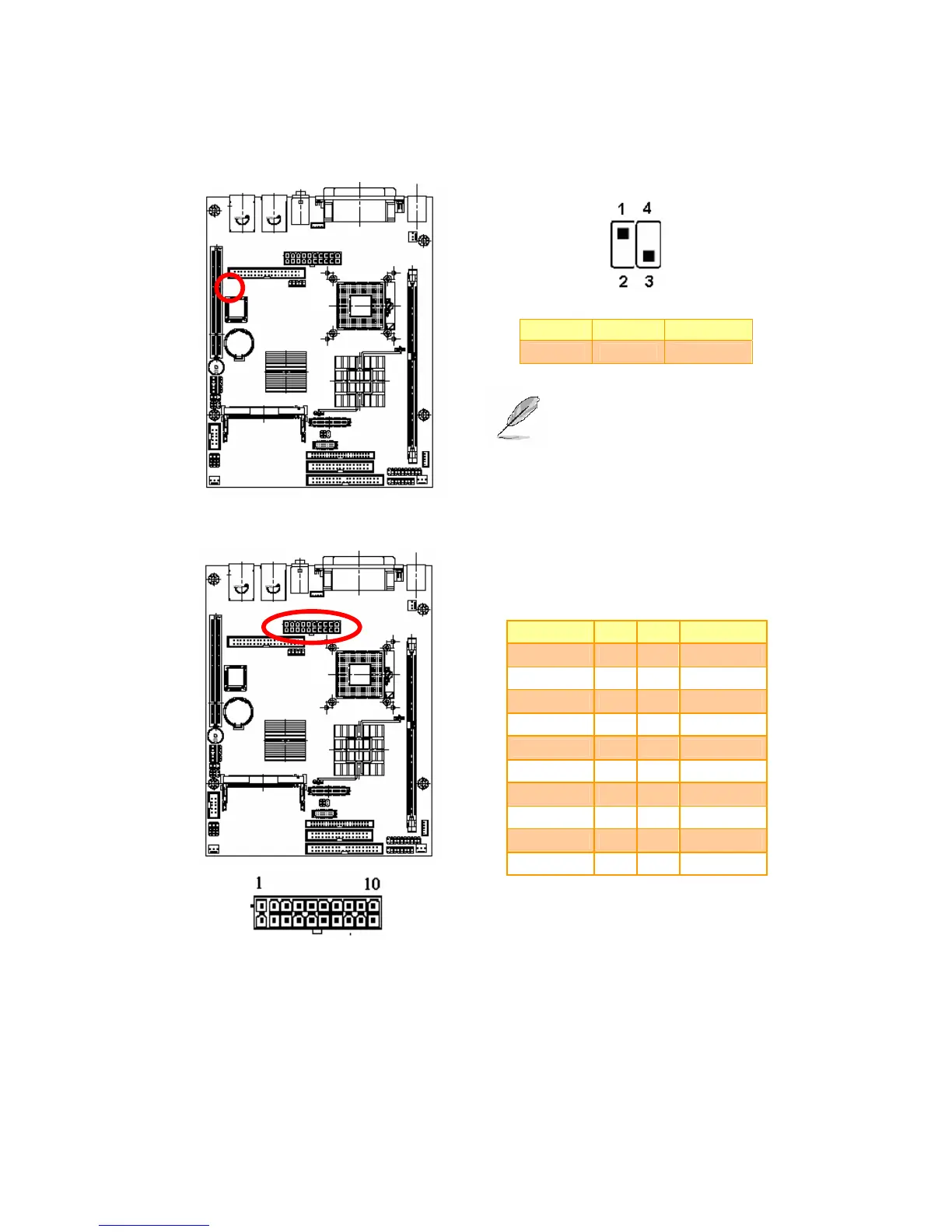

2.3.4 FSB Select (SW1)
Currently, SW1 is set with the below default for FSB selection.
* Default
BIT1 BIT2
ON OFF DEFAULT
Note: Please do not change the
default setting otherwise it
might damage the CPU.
2.3.5 ATX Power Connector (ATXPWR)
Signal PIN PIN Signal
+3.3V 11 1 +3.3V
-12V 12 2 +3.3V
GND 13 3 GND
PS_ON 14 4 +5V
GND 15 5 GND
GND 16 6 +5V
GND 17 7 GND
-5V 18 8 PWROK
+5V 19 9 AUX5V
+5V 20 10 +12V
