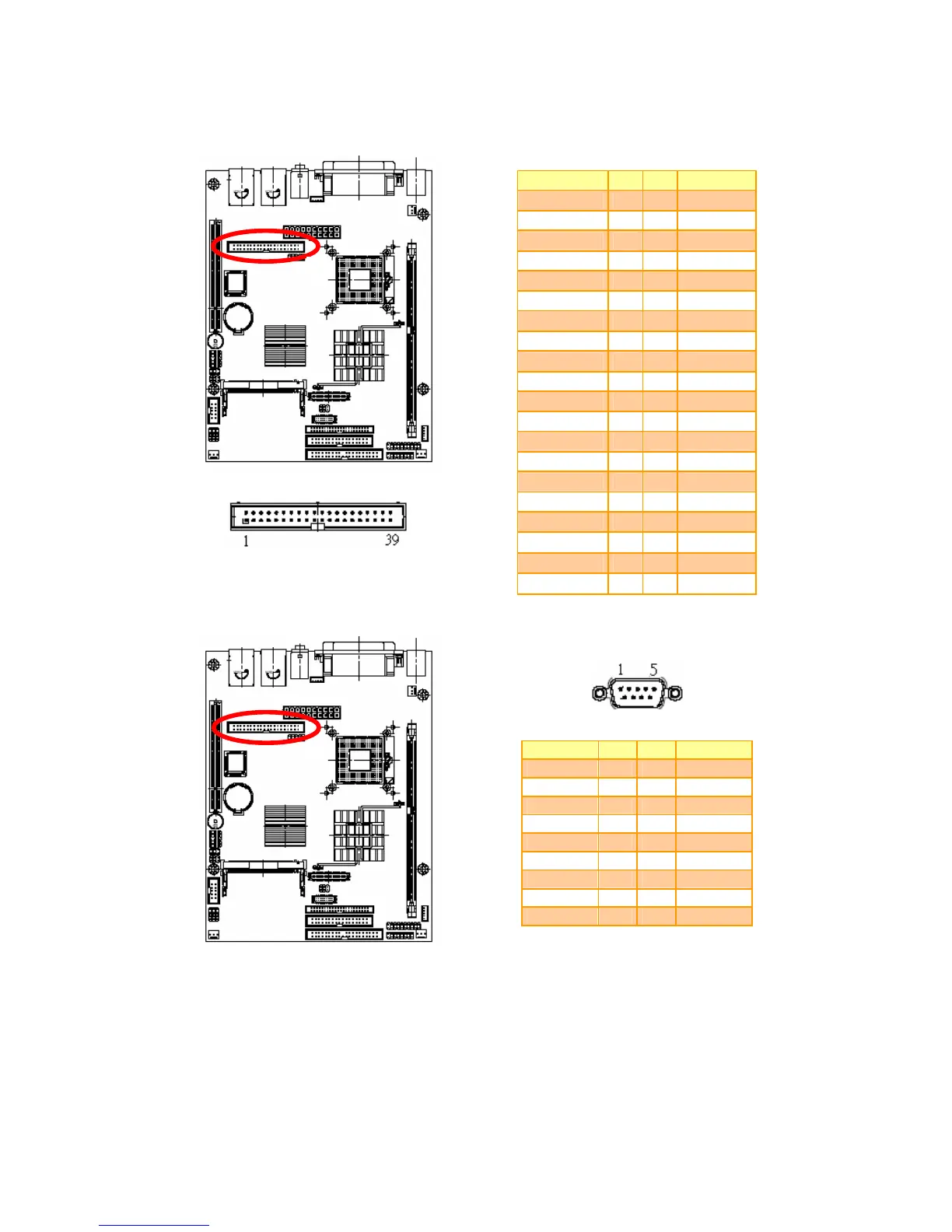

2.3.16 Serial Port 3 / 4 / 5 / 6 Connector (JCOM36)
Signal PIN PIN Signal
DCDA 1 2 DSRA
RxDA 3 4 RTSA
TxDA 5 6 CTSA
DRTA 7 8 RIA
GND 9 10 NC
DCDB 11 12 DSRB
RxDB 13 14 RTSB
TxDB 15 16 CTSB
DRTB 17 18 RIB
GND 19 20 NC
DCDC 21 22 DSRC
RxDC 23 24 RTSC
TxDC 25 26 CTSC
DTRC 27 28 RIC
GND 29 30 NC
DCDD 31 32 DSRD
RxDD 33 34 RTSD
TxDD 35 36 CTSD
DRTD 37 38 RID
GND 39 40 NC
2.3.17 Serial Port 3 / 4 / 5 / 6 with External DB9 Connector (JCOM36)
Signal PIN PIN Signal
GND 5
9 RI
DTR 4
8 CTS
TxD 3
7 RTS
RxD 2
6 DSR
DCD 1
