EMB-9670/9673 Series User’s Manual

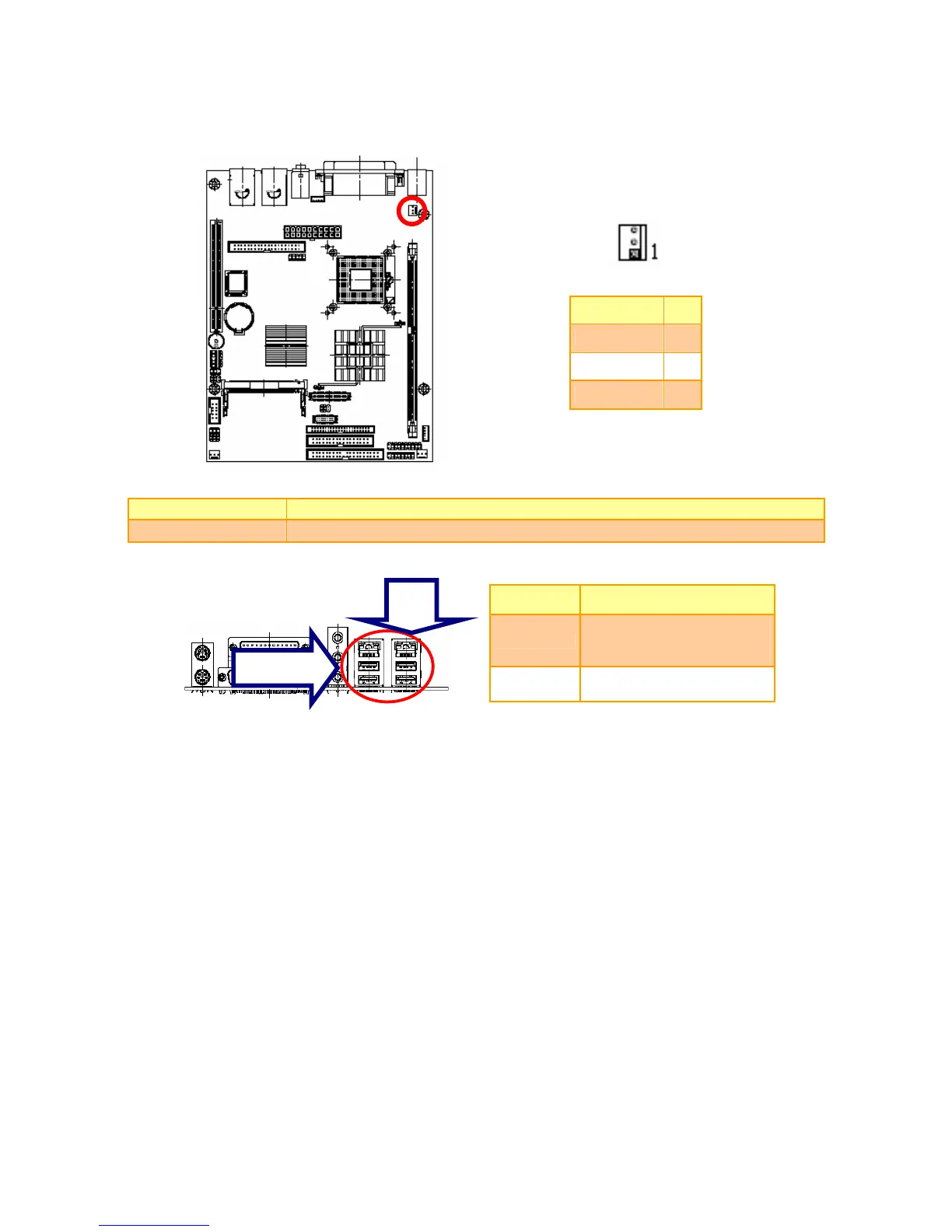

2.3.6 CPU Fan Connector (C_FAN1)

Signal PIN

TAC 3

+12V 2

GND 1

2.3.7 Signal Description – CPU Fan Connector (C_FAN1)

Signal Signal Description

TAC Fan speed monitor

2.3.8 RJ-45 Ethernet / USB 0 & 1, 2 & 3 Connectors (CN1, CN2)

Port Description

RJ-45

Allows connection to a Local

Area Network (LAN) through

a network hub.

USB 2.0

For connecting USB port 0,

1 (CN1), 2, 3 (CN2)

CN1

CN2
