User’s Manual
EMB-9670/9673 Series User’s Manual
49

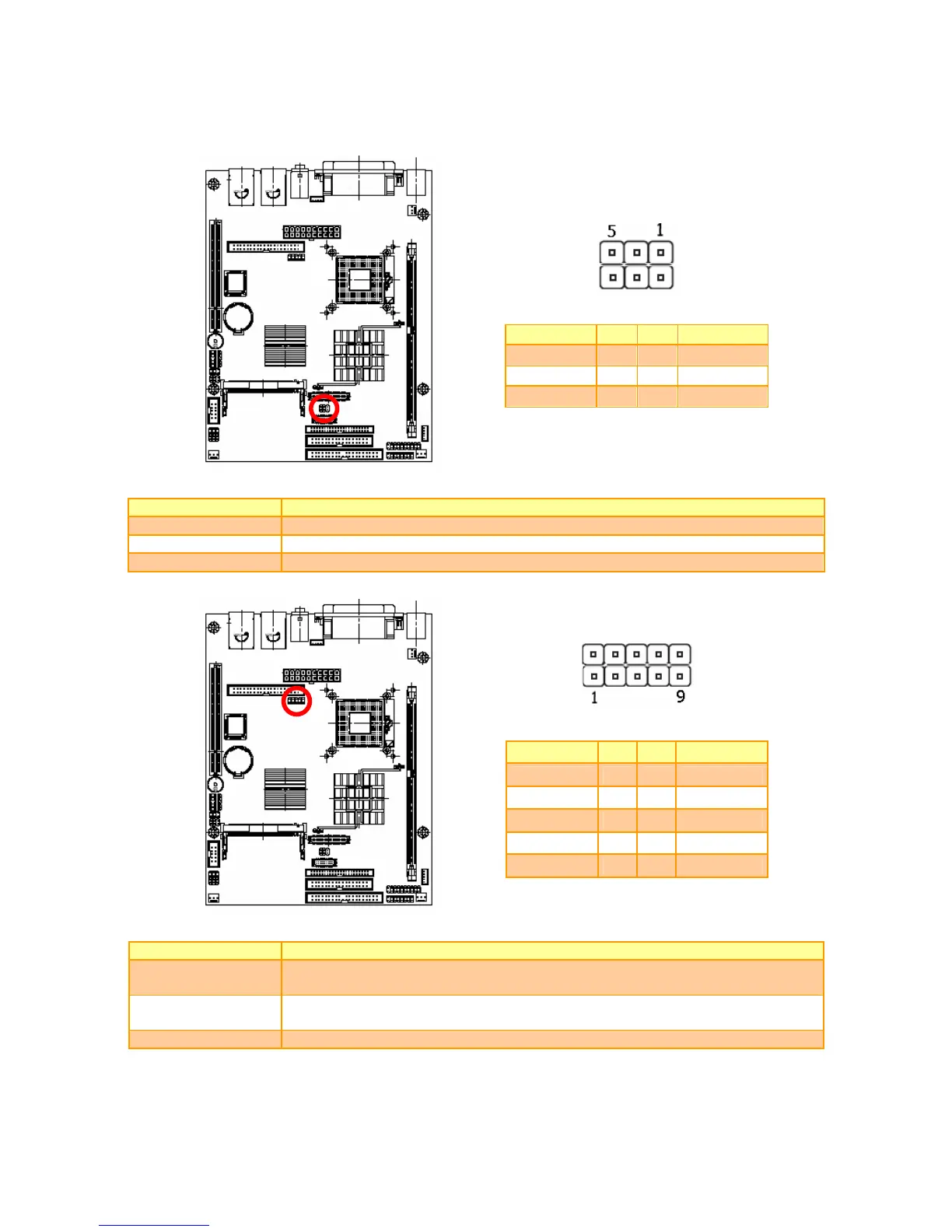

2.3.31 TV Out Connector (JTV)
Signal PIN PIN Signal
GND 6 5 GND
TVCFCC2 4 3 TVYFCC2
GND 2 1 TVCVB
2.3.32 Signal Description – TV Out Connector (JTV)
Signal Signal Description
TVYFCC2 Luminance output
TVCFCC2 Chrominance output
TVCVB Composite video output
2.3.33 USB 4 / 5 Connector (JUSB)
Signal PIN PIN Signal
USB_VCC 1 2 GND
D4- 3 4 GND
D4+ 5 6 D5+
GND 7 8 D5-
GND 9 10 USB_VCC
2.3.34 Signal Description – USB 4 / 5 Connector (JUSB)
Signal Signal Description
D5+/-
Differential bi-directional data signal for USB channel 5. Clock is transmitted along
with the data using NRZI encoding. The signalling bit rate is up to 12 Mbs.
D4+/-
Differential bi-directional data signal for USB channel 4. Clock is transmitted along
with the data using NRZI encoding. The signalling bit rate is up to 12 Mbs.
USB_VCC 5 V DC supply for external devices. Maximum load according to USB standard.
