2.3.11 Signal Description – Serial Port 2 Connector in RS-232 Mode (JCOM2)
Signal Signal Description
TxD
Serial output. This signal sends serial data to the communication link. The signal is
set to a marking state on hardware reset when the transmitter is empty or when
loop mode operation is initiated.
RxD Serial input. This signal receives serial data from the communication link.
DTR
Data Terminal Ready. This signal indicates to the modem or data set that the
on-board UART is ready to establish a communication link.
DSR
Data Set Ready. This signal indicates that the modem or data set is ready to
establish a communication link.
RTS
Request To Send. This signal indicates to the modem or data set that the on-board
UART is ready to exchange data.
CTS
Clear To Send. This signal indicates that the modem or data set is ready to
exchange data.
DCD
Data Carrier Detect. This signal indicates that the modem or data set has detected
the data carrier.
RI
Ring Indicator. This signal indicates that the modem has received a telephone
ringing signal.

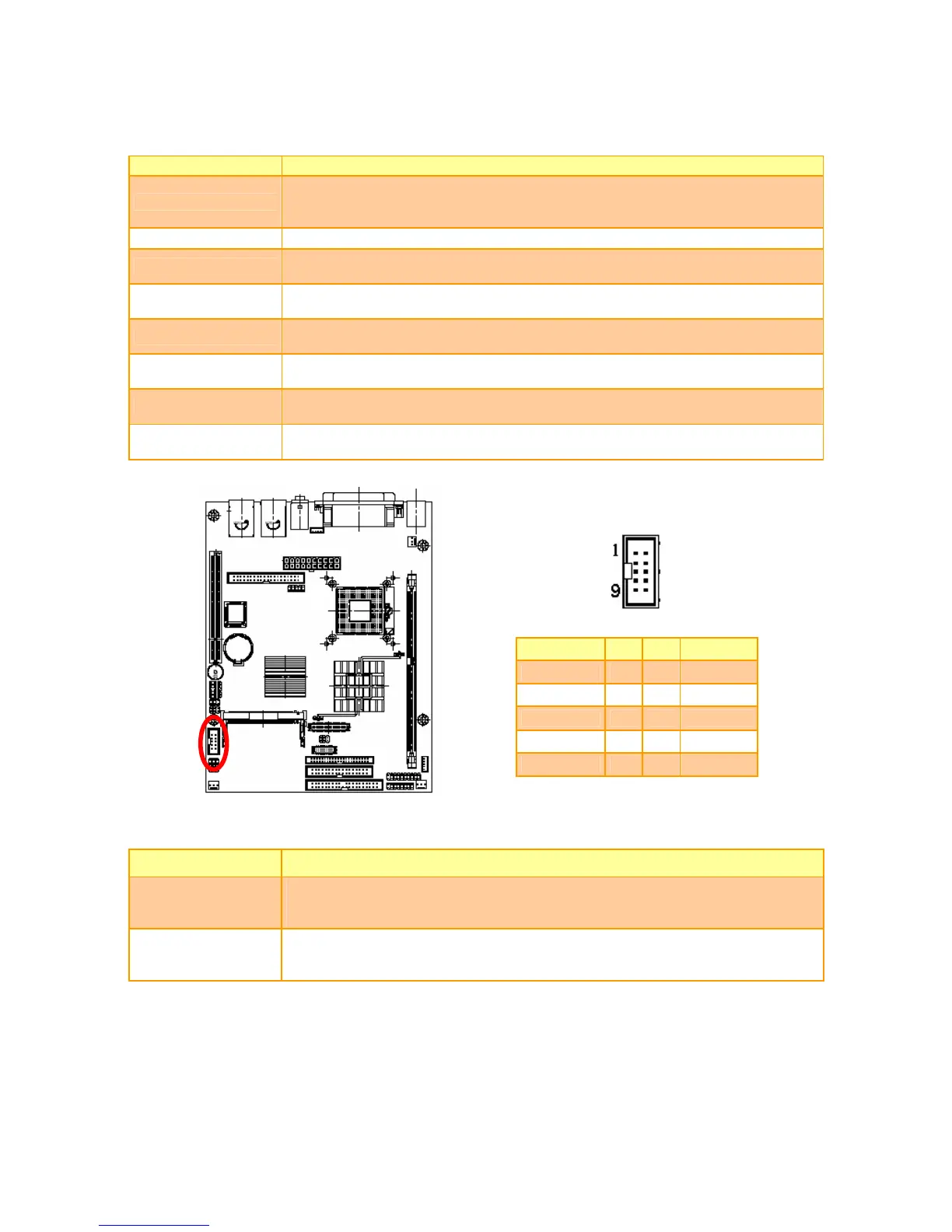

2.3.12 Serial Port 2 Connector in RS-422 Mode (JCOM2)
Signal PIN PIN Signal
TxD- 1 2 RxD+
TxD+ 3 4 RxD-
GND 5 6 NC
NC 7 8 NC
NC 9 10 NC
2.3.13 Signal Description – Serial Port 2 Connector in RS-422 Mode (JCOM2)
Signal Signal Description
TxD+/-
Serial output. This differential signal pair sends serial data to the communication
link. Data is transferred from Serial Port 2 Transmit Buffer Register to the
communication link, if the RTS register of the Serial Port 2 is set to LOW.
RxD+/-
Serial input. This differential signal pair receives serial data from the
communication link. Received data is available in Serial Port 2 Receiver Buffer
Register.
