User’s Manual
EMB-9670/9673 Series User’s Manual
29

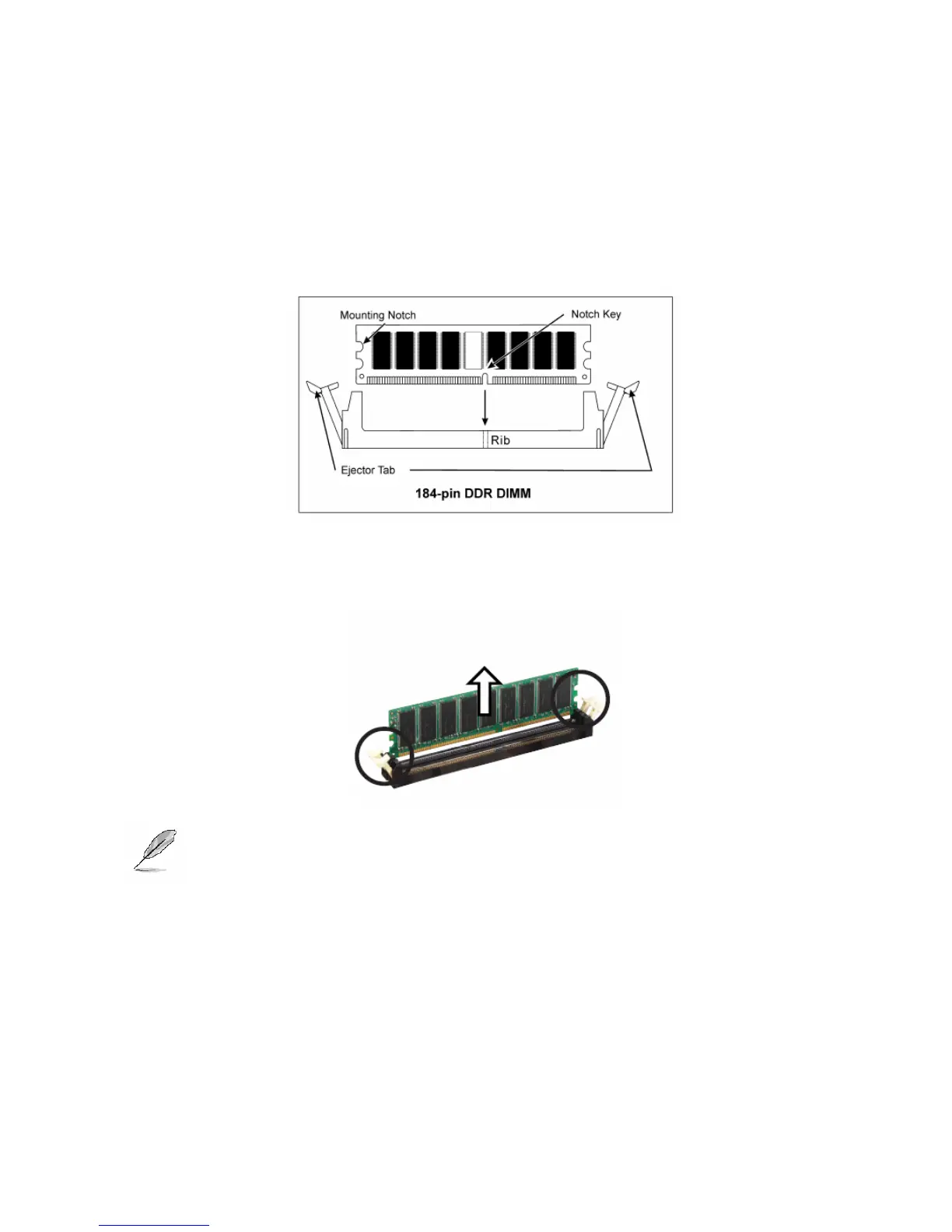

• Locate the DIMM slot on the board.
• Hold two edges of the DIMM module carefully. Keep away of touching its connectors.
• Align the notch key on the module with the rib on the slot.
• Firmly press the modules into the slot automatically snaps into the mounting notch. Do
not force the DIMM module in with extra force as the DIMM module only fit in one
direction.
• To remove the DIMM modules, push the two ejector tabs on the slot outward
simultaneously, and then pull out the DIMM module.
Note: (1) Please do not change any DDR SDRAM parameter in BIOS setup to
increase your system’s performance without acquiring technical
information in advance.
(2) Static electricity can damage the electronic components of the computer
or optional boards. Before starting these procedures, ensure that you
are discharged of static electricity by touching a grounded metal object
briefly.
