VPixx Technologies PROPixx Full - Rear View of Projector; Rear View of Controller; Figure 2 Rear View of Projector; Figure 3 Rear View of Controller

10

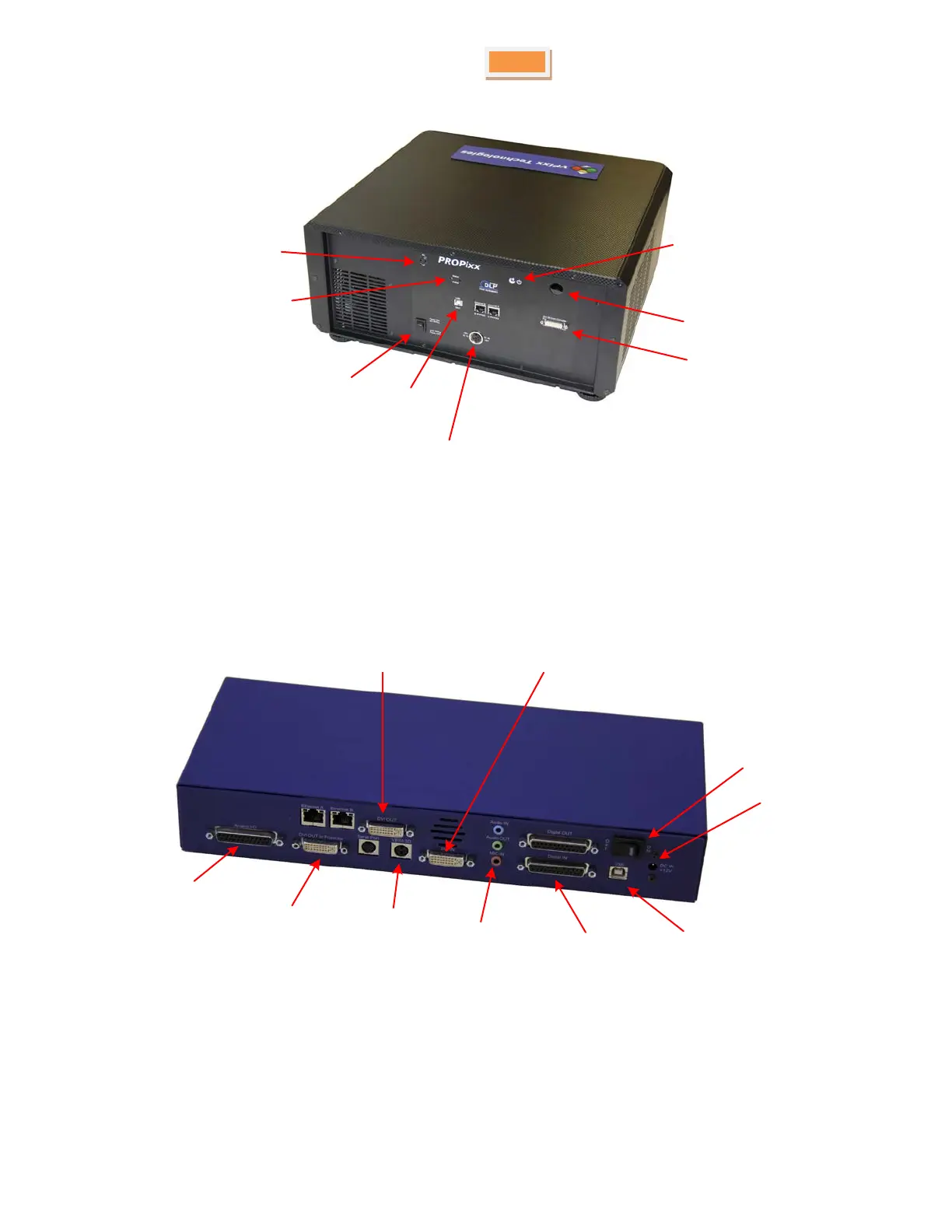

Rear view of projector
Rear infra-red window
Dual-link DVI connector
LED status
Power connector
Main power switch
Ferro-electric circular
polarizer interface
USB connector
ON /
Sleep button
Figure 2 rear view of projector
Rear view of controller
Dual-link DVI
input connector
Power connector
Main power switch
USB connector
Audio
interface **
Dual-link DVI output
connector for console display
Dual-
link DVI output
connector to projector
Digital IN/OUT
interface
Analog IN/OUT
interface **
VESA 3D
connector
Figure 3 Rear view of controller
**Analog I/O and audio functionalities are available only with PROPixx full version (VPX-PRO-5001C)
