LED light source
The PROPixx light engine uses 3 big chip LEDs that can deliver an enormous color gamut to the screens. The following
CIE 1931 color space diagram shows the x-y color coordinates of the PROPixx LEDs. The peak wavelengths are Red: 623
nm, Green: 525 nm, Blue: 460 nm
.

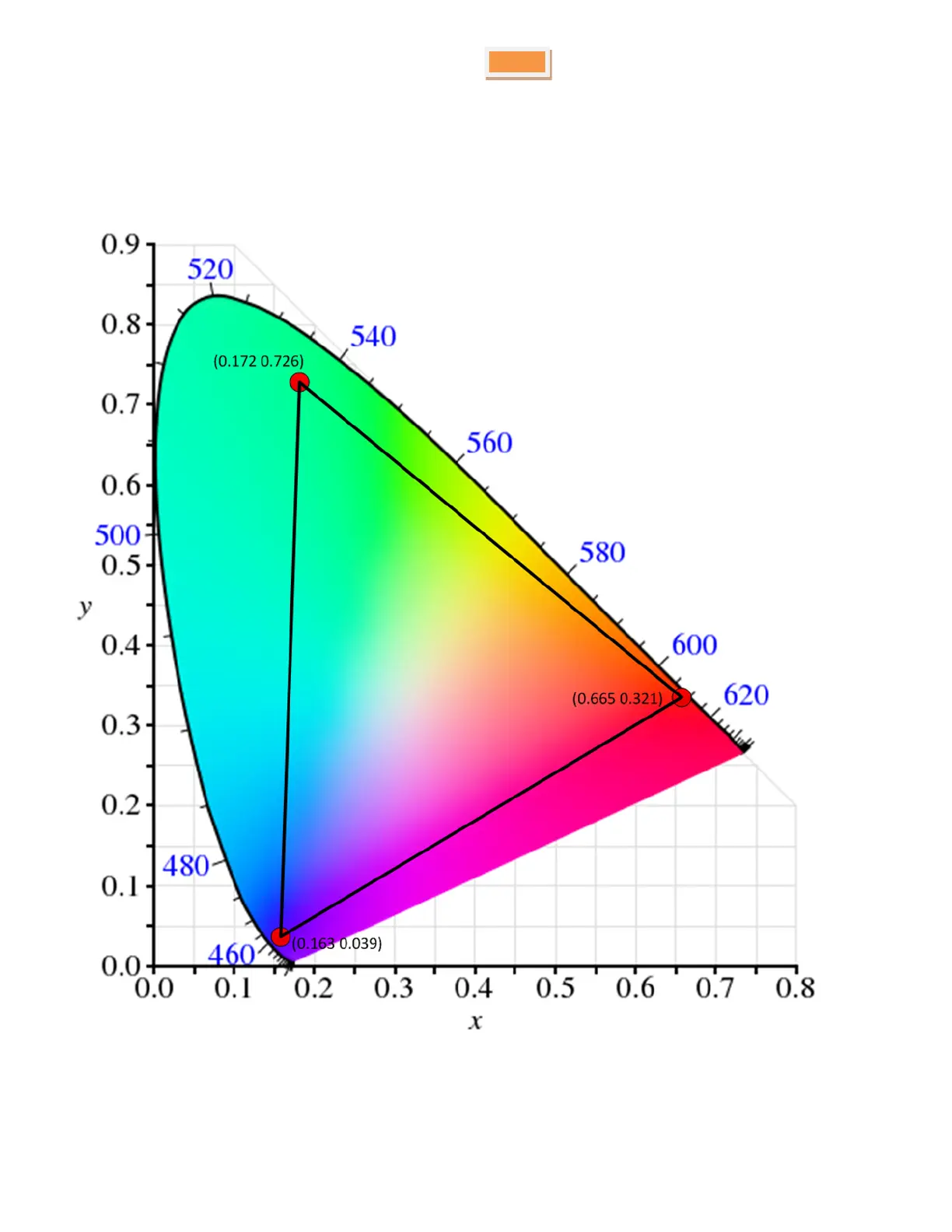

Figure 19 CIE 1931 Color Space Diagram
