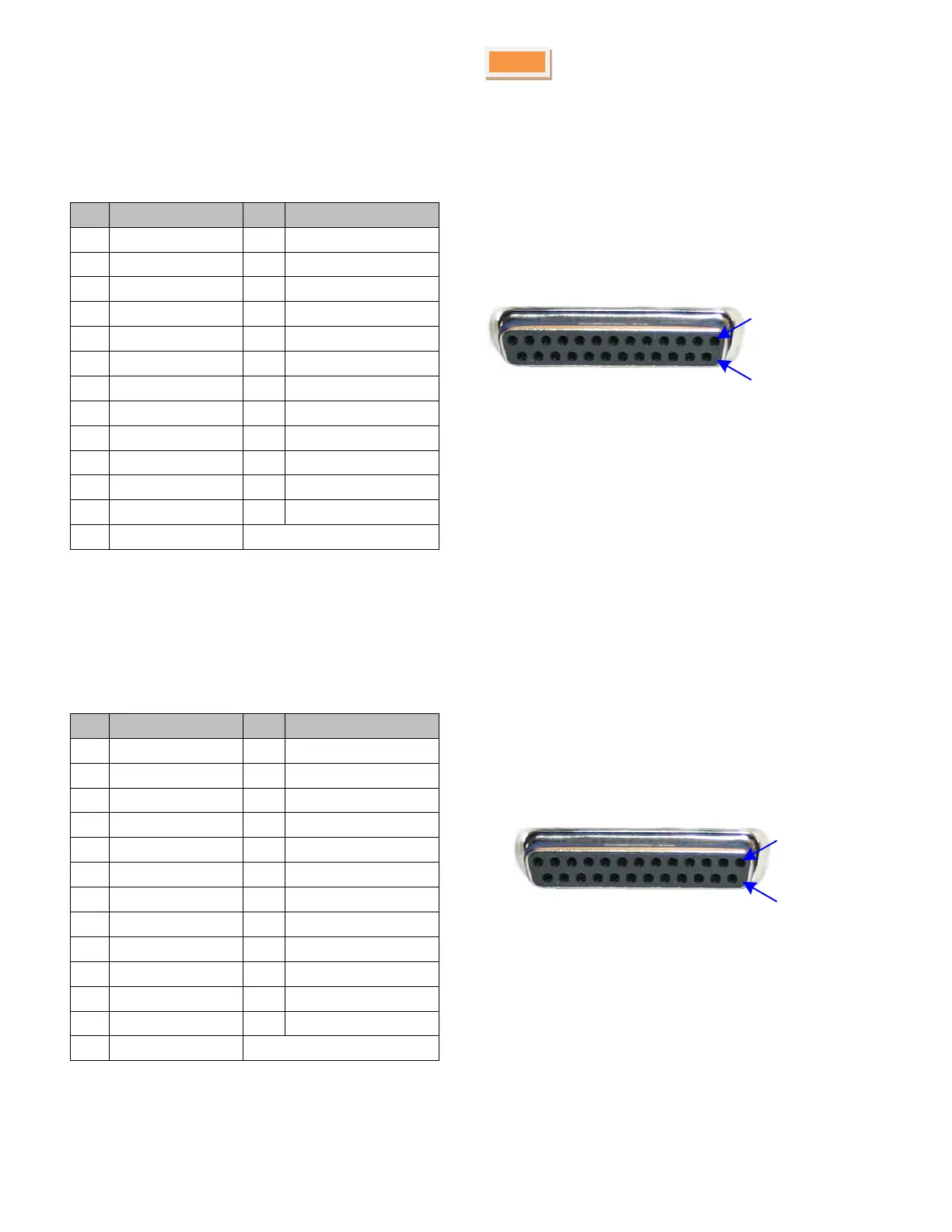

Digital output connector
The following table shows the digital output pin assignment.
Table 5 Digital Output
Connector type: D-SUB, 25 pins
Gender: Female
* Shield is tied to the GND by a 0 Ohm resistor inside the PROPixx controller.
Digital input connector
The following table shows the digital input pin assignment.
Table 6 Digital Input
Connector type: D-SUB, 25 pins
Gender: Female
* Shield is tied to the GND by a 0 Ohm resistor inside the PROPixx controller.
Pin
Description
Pin
Description
1
Digital Out 0
14
Digital Out 1
2
Digital Out 2
15
Digital Out 3
3
Digital Out 4
16
Digital Out 5
4
Digital Out 6
17
Digital Out 7
5
Digital Out 8
18
Digital Out 9
6
Digital Out 10
19
Digital Out 11
7
Digital Out 12
20
Digital Out 13
8
Digital Out 14
21
Digital Out 15
9
Digital Out 16
22
Digital Out 17
10
Digital Out 18
23
Digital Out 19
11
Digital Out 20
24
Digital Out 21
12
Digital Out 22
25
Digital Out 23
13
GND
Shield *
Pin
Description
Pin
Description
1
Digital In 0
14
Digital In 1
2
Digital In 2
15
Digital In 3
3
Digital In 4
16
Digital In 5
4
Digital In 6
17
Digital In 7
5
Digital In 8
18
Digital In 9
6
Digital In 10
19
Digital In 11
7
Digital In 12
20
Digital In 13
8
Digital In 14
21
Digital In 15
9
Digital In 16
22
Digital In 17
10
Digital In 18
23
Digital In 19
11
Digital In 20
24
Digital In 21
12
Digital In 22
25
Digital In 23
13
GND
Shield *
Pin 1
Pin 14
Pin 1
Pin 14
